Job card D/R A256 - Bucky Top Cover
1
SUPPLIES
Bucky Top Cover
2
TOOLS
Standard Tool Box
3
REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 20 minutes
4
SAFETY PRECAUTIONS
Not applicable
5
PREREQUISITES
None
6
PROCEDURE
6-1
Disassembly of the Bucky Top Cover

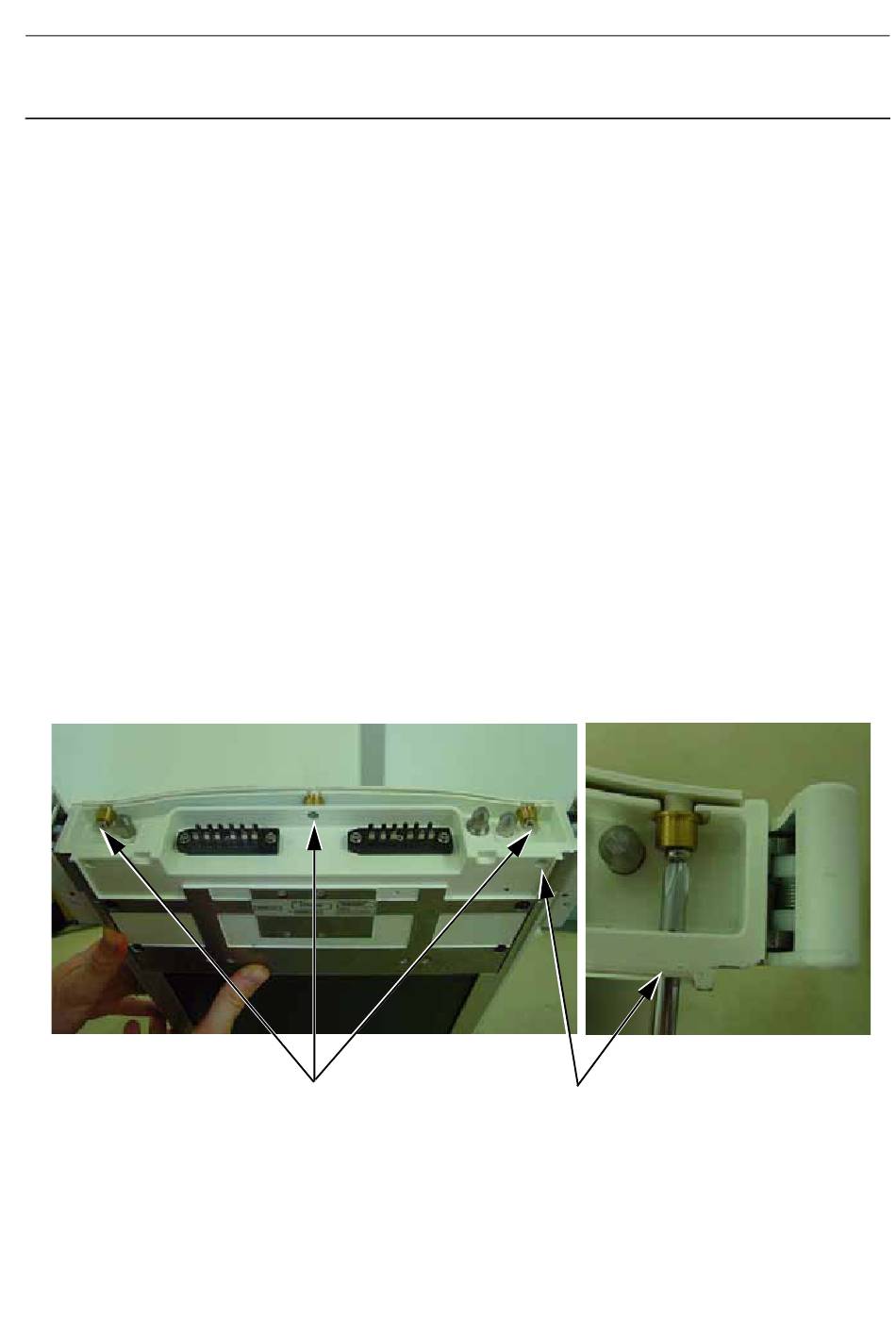

1. Remove the three screws and brass blocks (1) (cross-head screwdriver) which secure the top cover
to the Bucky. Ensure that you access the two side screws by the hole (2) in the Bucky framework.
Note:
The Bucky illustrated has three brass blocks. Earlier versions of the bucky may miss the central
brass block, which is replaced by a brass washer.
JC-DR-A-256.fm
Service Information and Procedures Class A 2385072-16-8EN
1
Page no. 1343
Job card D/R A256 - Bucky Top Cover
