GE Healthcare Senographe DS
Revision 1 Service Information and Procedures Class A 2385072-16-8EN
Job Card D/R A251 - Paddle Holder Board
6 PROCEDURE
6-1 Disassembly of the Paddle Holder Board

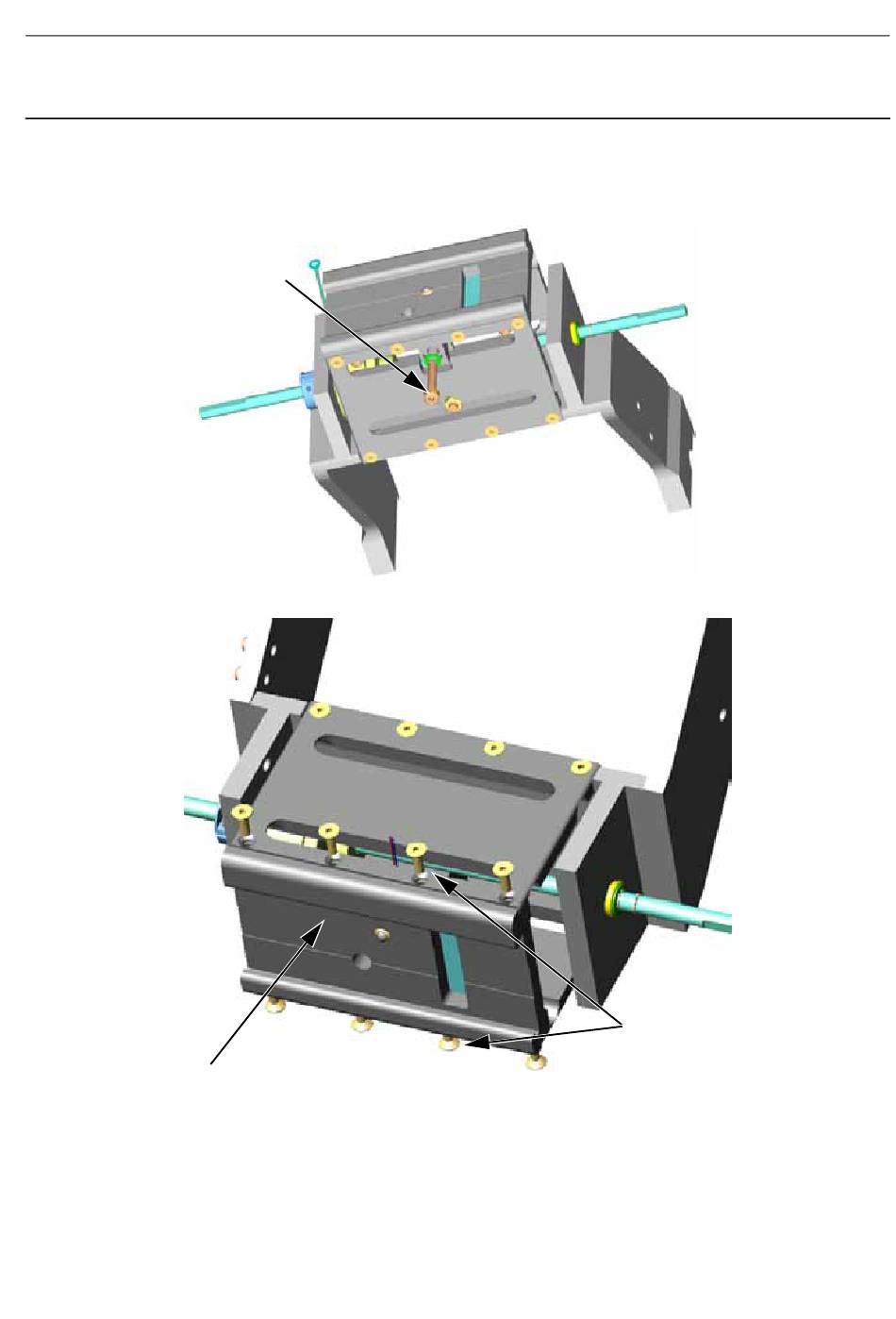

1. Remove the M6 screw (1) (5 mm allen wrench).
1
2. Release the four pairs of M4 screws (2) (3 mm allen wrench), and remove the Paddle Holder (3).
2
3
3. On the Paddle Holder board, carefully disconnect the Paddle Recognition cable from the J2 connec-
tor, Force Sensor cable from the J1 connector and Motor cable from the J2 connector. Disconnect
