12. Release the Arm slowly downwards and let it drop down.
• If the Arm stays at its current position or moves from its original position and stops at a distance of
at least 2 cm (0.79 inches) above the bottom Gantry baseplate (see illustration 10), the Lift Gas
Spring is in good condition and does not need changing.
• If the Arm moves (slowly or rapidly) down to the Gantry baseplate (see illustration 10), the Lift
Gas Spring is defective, and needs changing according to
on page 1183.

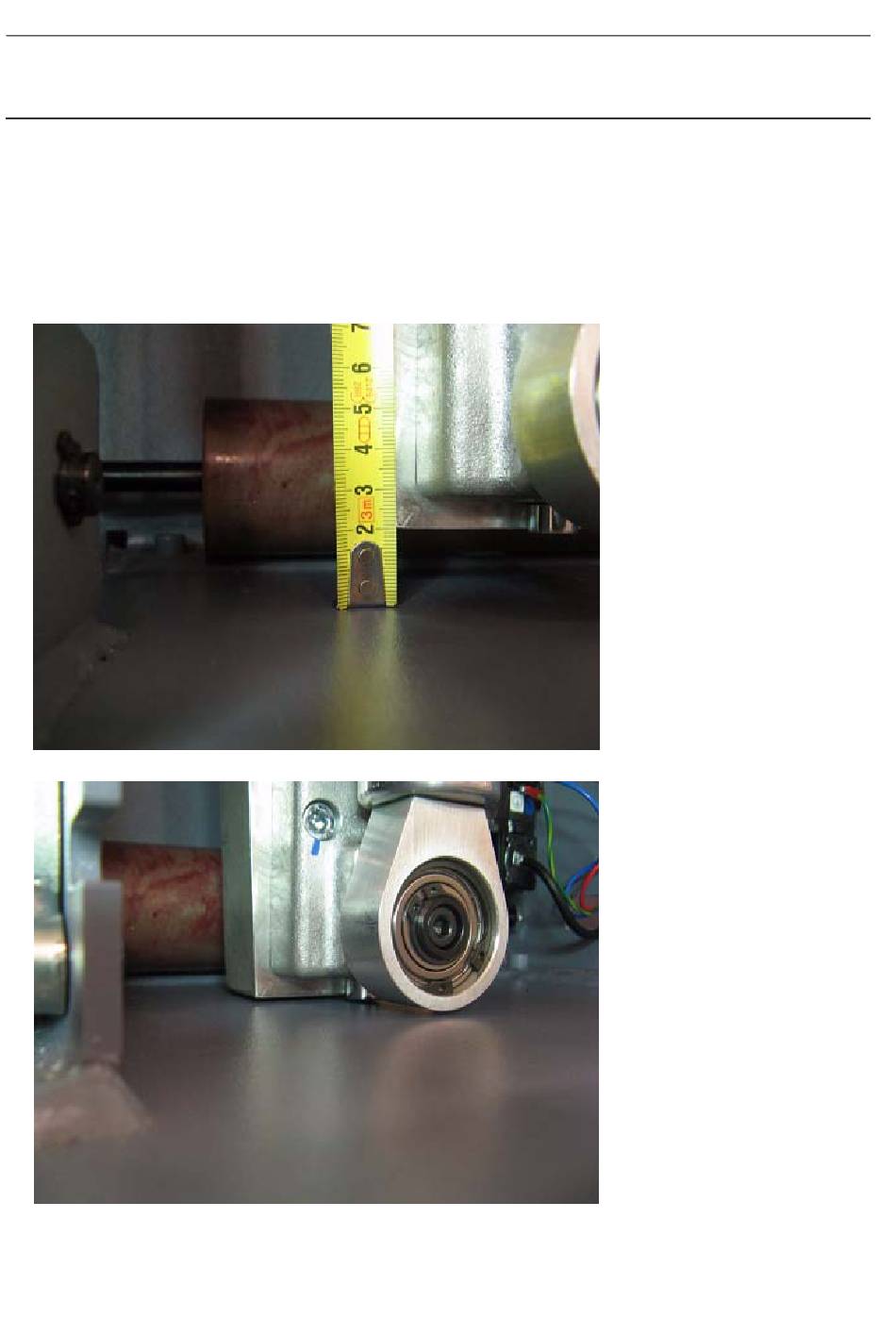

ILLUSTRATION 10 - INDICATION OF LIFT GAS SCREW TEST PASS OR FAIL DEPENDING ON POSITION
Chapter 9
Service Information and Procedures Class A 2385072-16-8EN
Page no. 1056
Job Card D/R A206A - Lift Gas Spring
PASS
Arm rests at least 2 cm (0.79
inches) above Gantry base-
plate.
FAIL
Arm touches Gantry baseplate.
Senographe DS
JC-TSG-A-015.fm
