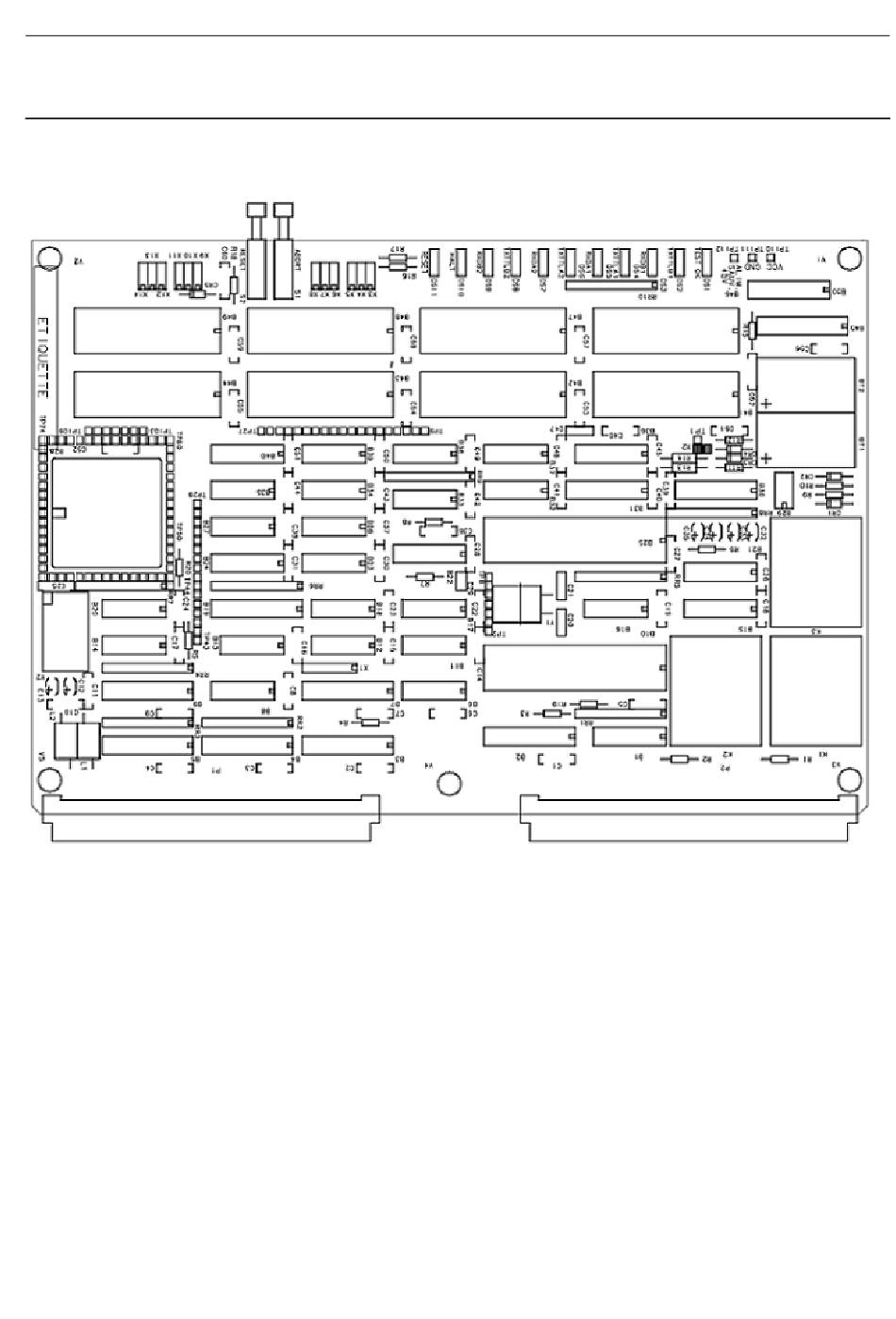

ILLUSTRATION 1 - LAYOUT OF THE GENERATOR CPU BOARD
B49 socket
B44 socket
Take great care to respect the orientation of the EEPROMs. Ensure that the small notch of the
EEPROM is above the small notch on the Generator CPU Board. Do not trust label orientation on the
JC-DR-A-415.fm
Service Information and Procedures Class A 2385072-16-8EN
B48 socket
B43 socket
Page no. 1629
Job Card D/R A415 - Generator Board CPU EEPROMs
