GE Healthcare
Revision 1
8-6-2
19" Monitor and V1/V2 Control Station

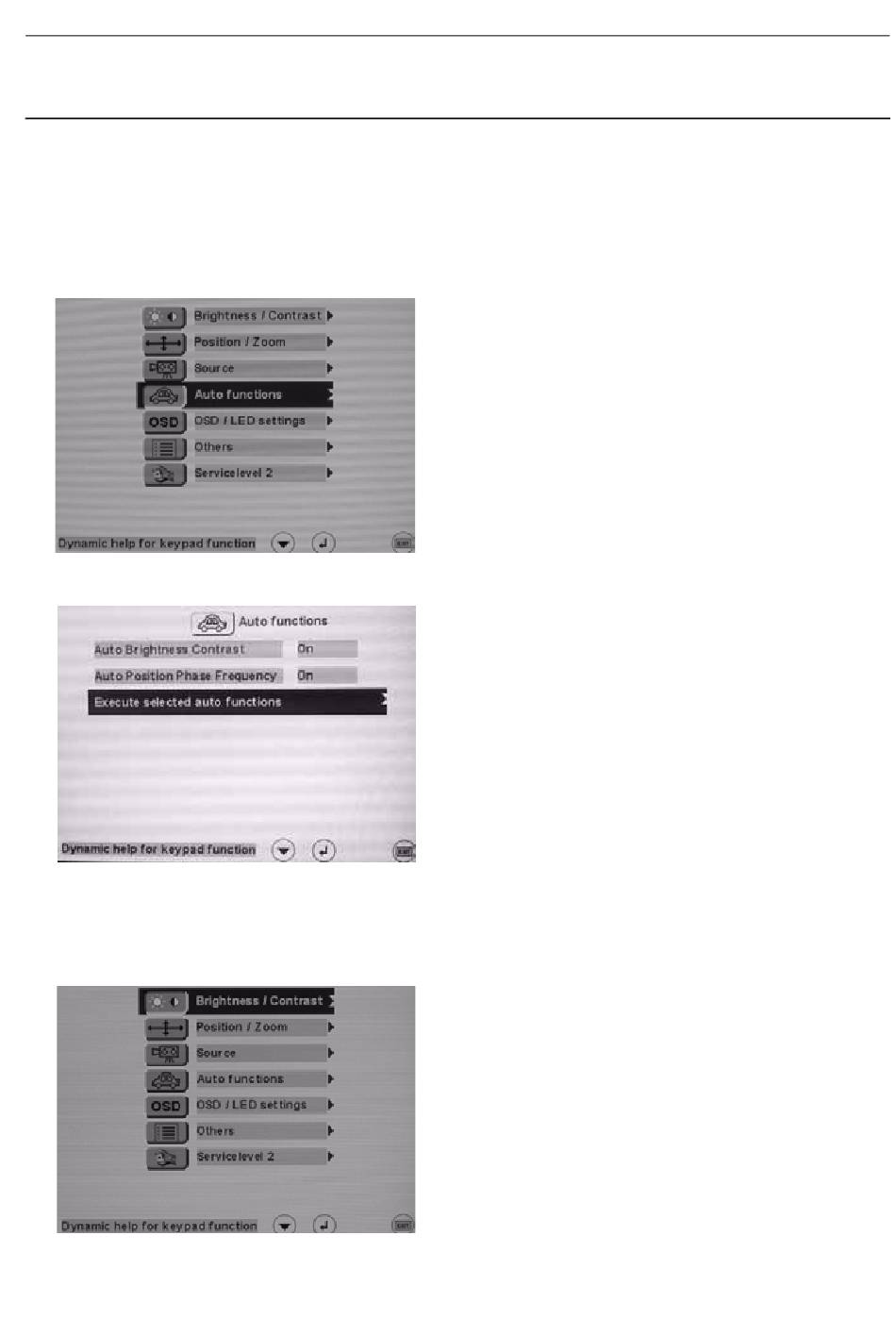

1. The SMPTE pattern is already displayed on the AWS Monitor. If not, refer to
the SMPTE pattern.
2. If necessary, unlock the OSD (see
tion
8-5).
3. Press the Key1 button to access the OSD main menu, then keep pressing the Key1 button until Auto
functions is selected, and press
4. In the Auto functions menu, keep pressing the Key1 button until Execute selected auto functions is
selected, and press
The auto-calibration takes place.
5. If necessary, unlock the OSD (see
tion
8-5).
6. Press the Key1 button to access the OSD main menu, then keep pressing the Key1 button until
Brightness / Contrast is selected, and press
JC-ELE-A-043.fm
Service Information and Procedures Class A 2385072-16-8EN
section
the Key2 button
to perform an auto calibration.
the Key2 button
section
Job Card ELE A043 - AWS Monitor Calibration
8-2) and move the OSD to a convenient position (see
to enter the Auto functions menu.
8-4) and move the OSD to a convenient position (see
to enter the Brightness / Contrast menu.
the Key2 button
Page no. 751
Senographe DS
section 8-4
to display
sec-
sec-
Chapter 7
