Job Card D/R A318 - LCD Monitor
7-1-2 Reassembly - 18" and 19" Monitors
If this intervention concerns the replacement of the monitor execute all the following steps, otherwise go
directly to step 4.

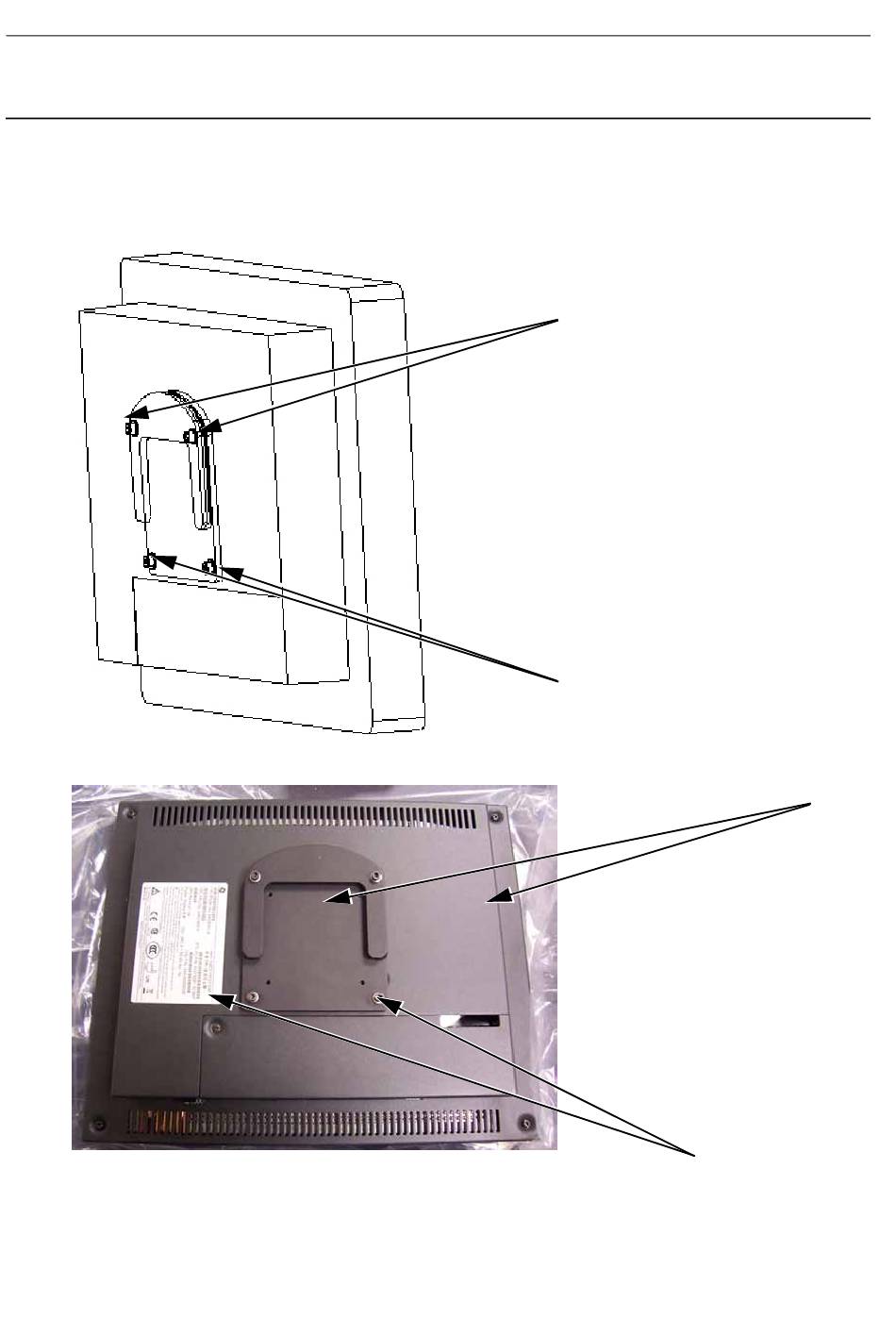

1. Remove the four screws (1 and 2) securing the screen plate to the old monitor. The screen plate and
four screws are used for fixing the new monitor to the rotative arm.
2. Place the new monitor on a protected surface. Fix the screen plate to the monitor using washers and
two 20 mm screws (1) on the top, and two 16 mm screws (2) on the bottom.
3. Fix the screen plate to the new monitor using two screws of 20 mm length (1) on the top and two
screws of 16 mm length (2) on the bottom.
