Job Card D/R A243 - Compression Potentiometer and Cable

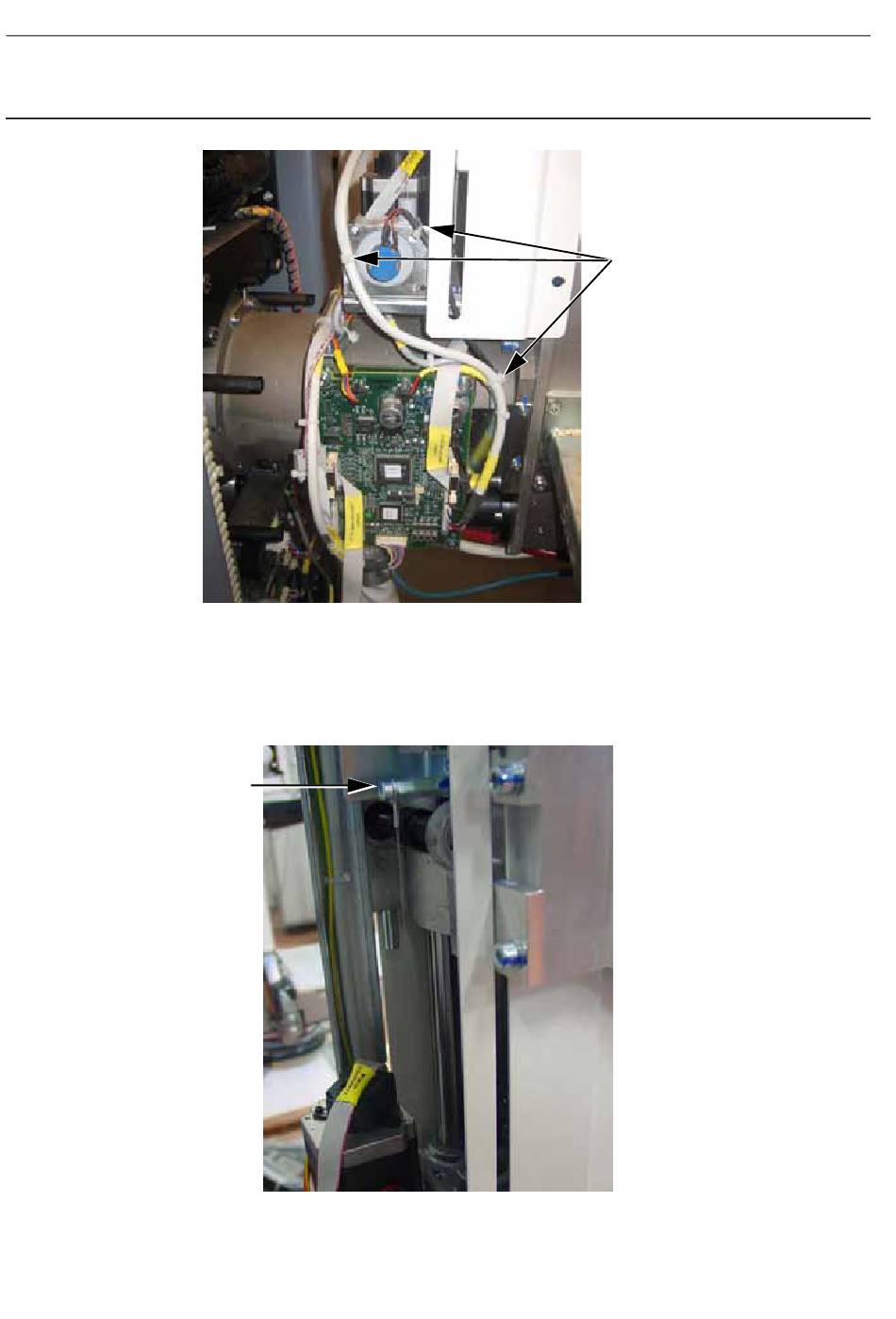

and secure them with cable ties as shown below (5).
6. Connect the Compression Potentiometer (W303) cable to the J6 connector on the Compression
board.
7. Attach the potentiometer wire loop to the Compression Trolley attachment point (6) with an M4 screw
(3 mm Allen wrench). Check the potentiometer wire is vertically installed. If the potentiometer wire is
vertical, check if the correct Support holes have been used to attach it to the Compression Assembly
frame.
8. Check the Compression Movement, as follows:
