Universal synchronous/asynchronous receiver transmitter (USART/UART)
CTS
Transmit data register
TDR
TX
Note: For correct behavior, CTS must be deasserted at least 3 USART clock source periods
before the end of the current character. In addition it should be noted that the CTSCF flag
may not be set for pulses shorter than 2 x PCLK periods.
RS485 Driver Enable
The driver enable feature is enabled by setting bit DEM in the USART_CR3 control register.
This allows the user to activate the external transceiver control, through the DE (Driver
Enable) signal. The assertion time is the time between the activation of the DE signal and
the beginning of the START bit. It is programmed using the DEAT [4:0] bit fields in the
USART_CR1 control register. The de-assertion time is the time between the end of the last
stop bit, in a transmitted message, and the de-activation of the DE signal. It is programmed
using the DEDT [4:0] bit fields in the USART_CR1 control register. The polarity of the DE
signal can be configured using the DEP bit in the USART_CR3 control register.
In USART, the DEAT and DEDT are expressed in sample time units (1/8 or 1/16 bit duration,
depending on the oversampling rate).
26.5.17 Wake-up from Stop mode using USART
The USART is able to wake up the MCU from Stopmode when the UESM bit is set and the
USART clock is set to HSI or LSE (refer to Section Reset and clock control (RCC)).
•
USART source clock is HSI
If during Stop mode the HSI clock is switched OFF, when a falling edge on the USART
receive line is detected, the USART interface requests the HSI clock to be switched on.
The HSI clock is then used for the frame reception.
–
–
752/874

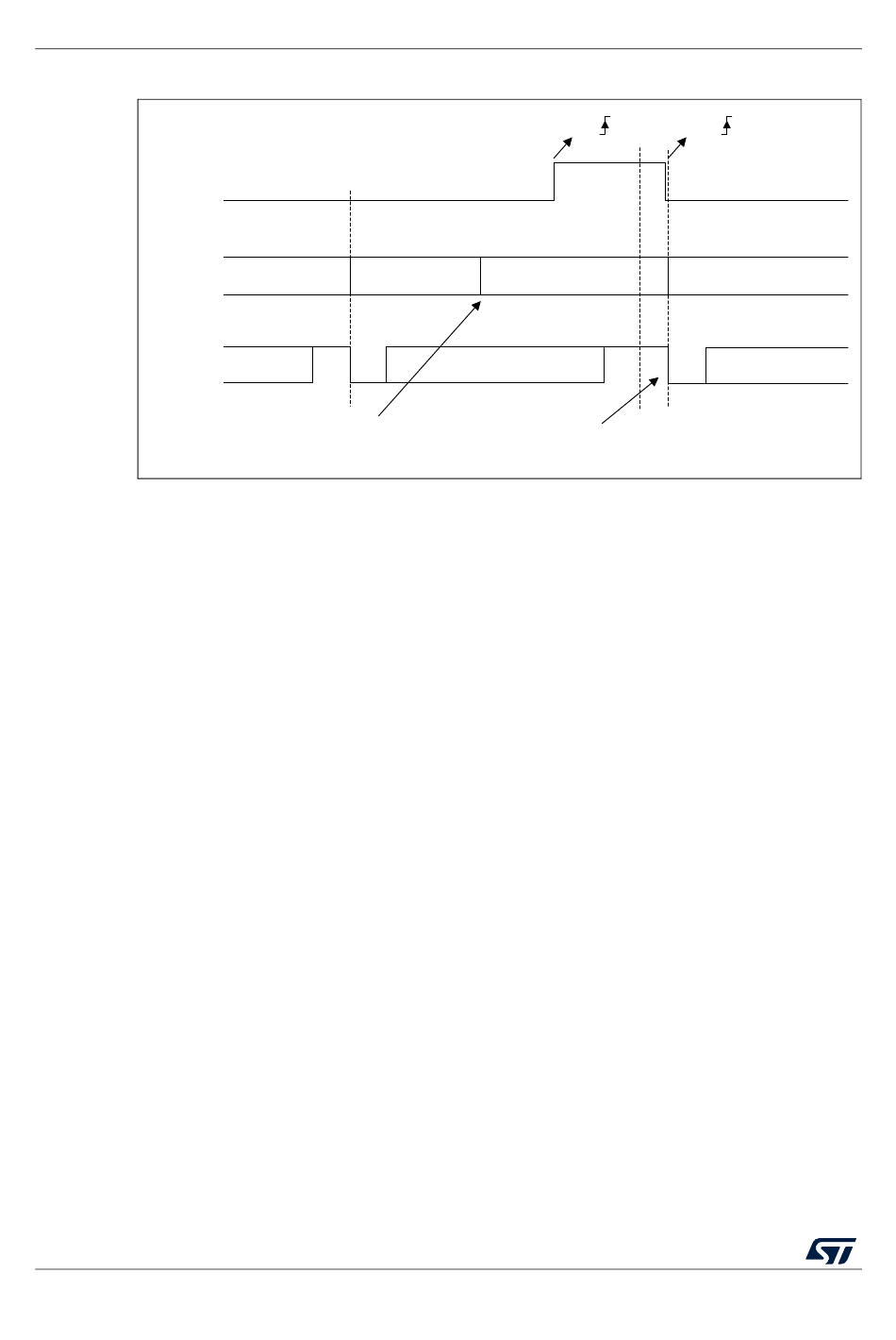

Figure 299. RS232 CTS flow control
Data 2
Stop
Start
Data 1
bit
bit
Writing data 3 in TDR
If the wake-up event is verified, the MCU wakes up from low-power mode and
data reception goes on normally.
If the wake-up event is not verified, the HSI clock is switched OFF again, the MCU
is not waken up and stays in low-power mode and the clock request is released.
empty Data 3
Data 2
Transmission of Data 3 is
delayed until CTS = 0
RM0366 Rev 5
CTS CTS
Stop Start
Idle
bit bit
RM0366
empty
Data 3
MSv68793V1
