Inter-integrated circuit interface (I2C)
If the controller addresses a 10-bit address target, transmits data to this target and then
reads data from the same target, a controller transmission flow must be done first. Then a
repeated START is set with the 10-bit target address configured with HEAD10R = 1. In this
case, the controller sends this sequence:
RESTART + Target address 10-bit header Read.
S
Controller transmitter
In the case of a write transfer, the TXIS flag is set after each byte transmission, after the
ninth SCL pulse when an ACK is received.
A TXIS event generates an interrupt if the TXIE bit of the I2C_CR1 register is set. The flag is
cleared when the I2C_TXDR register is written with the next data byte to transmit.
The number of TXIS events during the transfer corresponds to the value programmed in
NBYTES[7:0]. If the total number of data bytes to transmit is greater than 255, the reload
mode must be selected by setting the RELOAD bit in the I2C_CR2 register. In this case,
when the NBYTES[7:0] number of data bytes is transferred, the TCR flag is set and the SCL
line is stretched low until NBYTES[7:0] is written with a non-zero value.
When RELOAD = 0 and the number of data bytes defined in NBYTES[7:0] is transferred:
•
In automatic end mode (AUTOEND = 1), a STOP condition is automatically sent.
•
In software end mode (AUTOEND = 0), the TC flag is set and the SCL line is stretched
low, to perform software actions:
–
–
When a NACK is received, the TXIS flag is not set and a STOP condition is automatically
sent. The NACKF flag of the I2C_ISR register is set. An interrupt is generated if the NACKIE
bit is set.
672/874

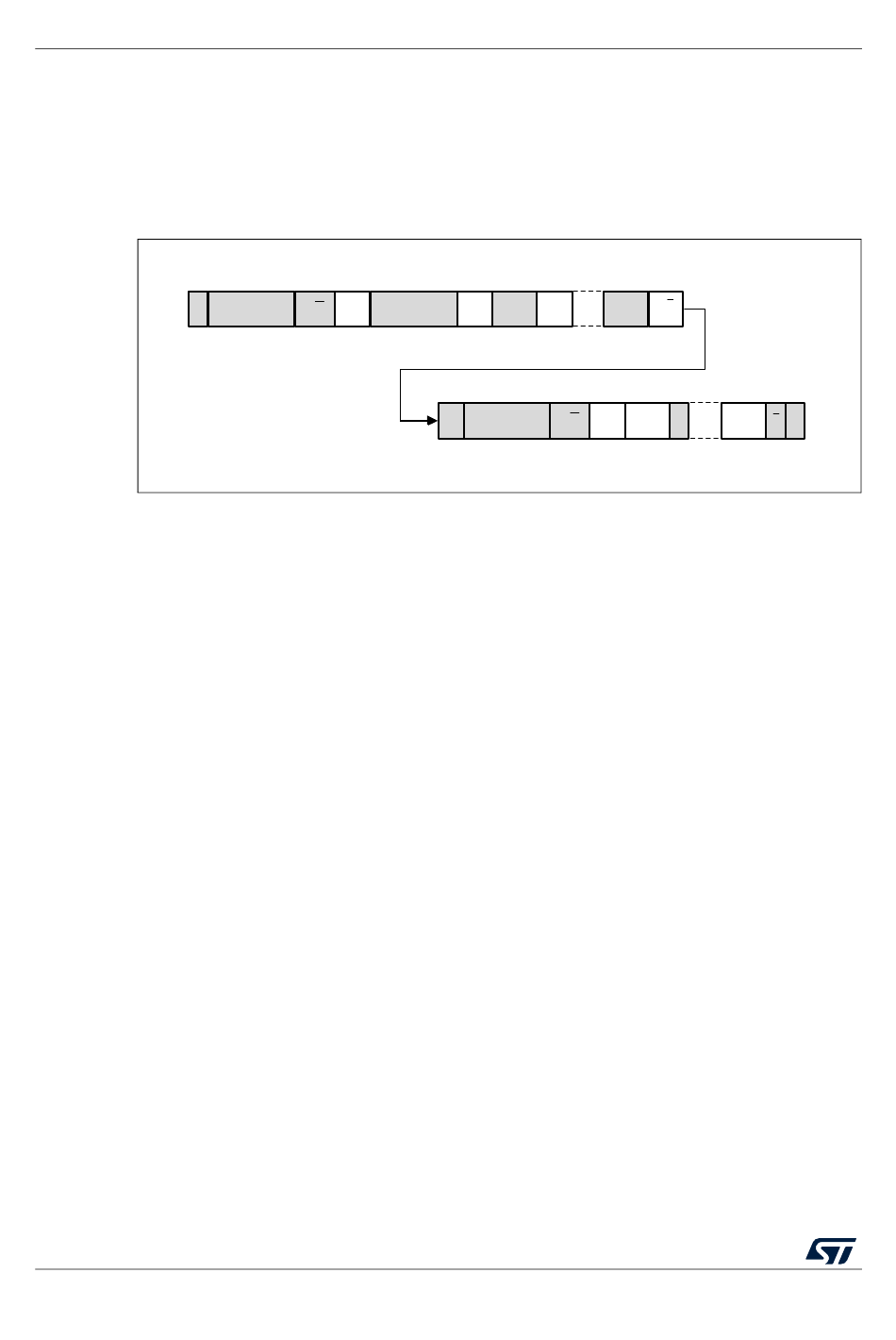

Figure 262. 10-bit address read access with HEAD10R = 1
1 1 1 1 0 X X 0
Target address Target address
R/W A
1st 7 bits
Write
A RESTART condition can be requested by setting the START bit of the I2C_CR2
register with the proper target address configuration and the number of bytes to
transfer. Setting the START bit clears the TC flag and sends the START condition
on the bus.
A STOP condition can be requested by setting the STOP bit of the I2C_CR2
register. This clears the TC flag and sends a STOP condition on the bus.
A DATA A
2nd byte
1 1 1 1 0 X X
Target address
Sr R/W
1st 7 bits
RM0366 Rev 5
DATA A/A
1
A DATA A DATA
Read
RM0366
A P
MSv19823V2
