Analog-to-digital converters (ADC)
(1)
ADSTART
EOC
EOS
OVR
ADSTP
(1)
TRGx
(2) RDY
ADC state
ADC_DR read access
ADC_DR
(OVRMOD=0)
ADC_DR
(OVRMOD=1)
by s/w
Note: There is no overrun detection on the injected channels since there is a dedicated data
register for each of the four injected channels.
Managing a sequence of conversion without using the DMA
If the conversions are slow enough, the conversion sequence can be handled by the
software. In this case the software must use the EOC flag and its associated interrupt to
handle each data. Each time a conversion is complete, EOC is set and the ADCx_DR
register can be read. OVRMOD should be configured to 0 to manage overrun events as an
error.
Managing conversions without using the DMA and without overrun
It may be useful to let the ADC convert one or more channels without reading the data each
time (if there is an analog watchdog for instance). In this case, the OVRMOD bit must be
configured to 1 and OVR flag should be ignored by the software. An overrun event will not
prevent the ADC from continuing to convert and the ADCx_DR register will always contain
the latest conversion.
Managing conversions using the DMA
Since converted channel values are stored into a unique data register, it is useful to use
DMA for conversion of more than one channel. This avoids the loss of the data already
stored in the ADCx_DR register.
When the DMA mode is enabled (DMAEN bit set to 1 in the ADCx_CFGR register, a DMA
request is generated after each conversion of a channel. This allows the transfer of the
converted data from the ADCx_DR register to the destination location selected by the
software.
Despite this, if an overrun occurs (OVR=1) because the DMA could not serve the DMA
transfer request in time, the ADC stops generating DMA requests and the data
230/874

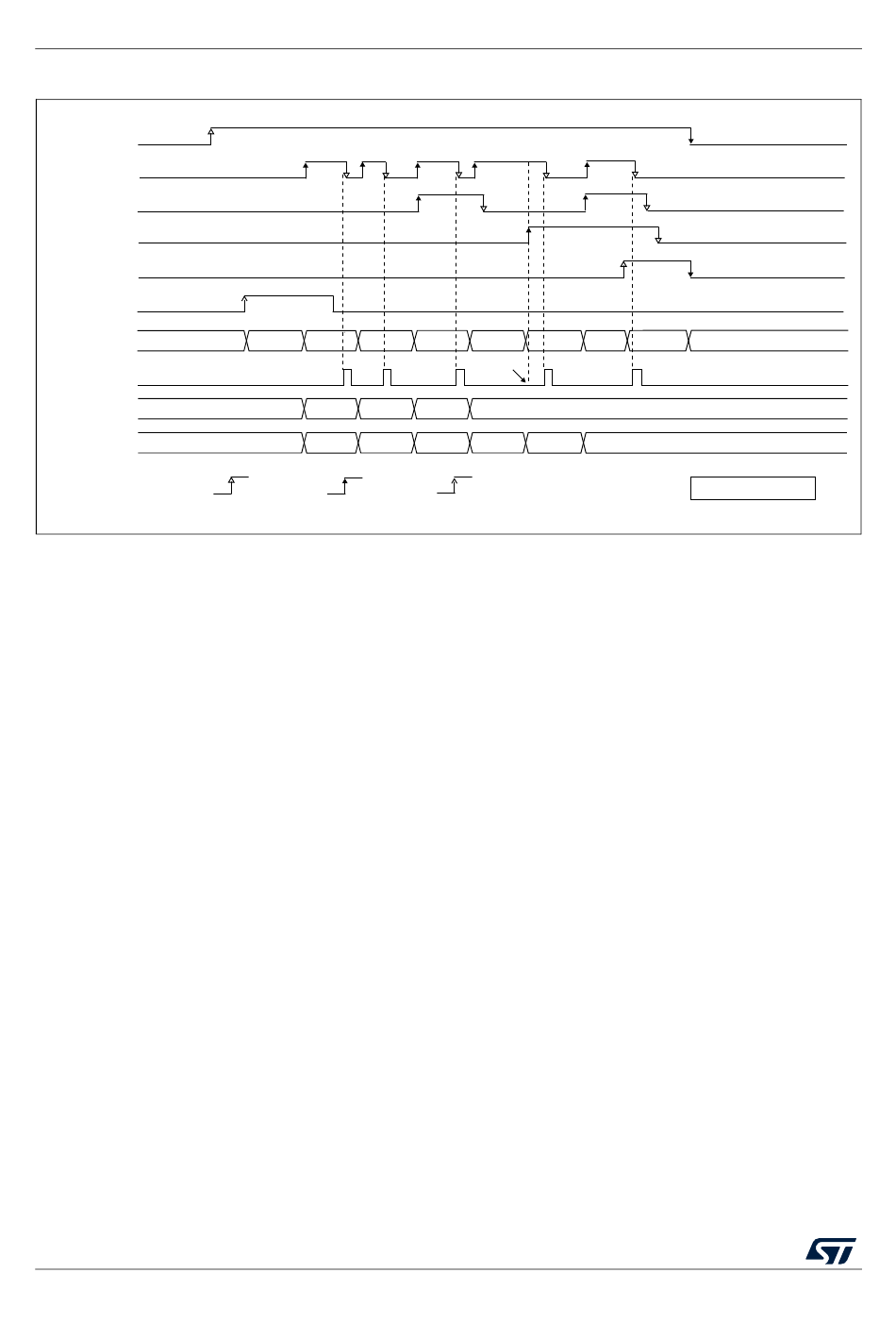

Figure 57. Example of overrun (OVR)
CH1 CH4
CH2 CH3
D1
D2
D1 D2
by h/w
triggered
RM0366 Rev 5
CH5 CH6
CH7
Overun
D3
D4
D3 D4 D6
D5
RM0366
RDY
STOP
Indicative timings
MS31019V1
