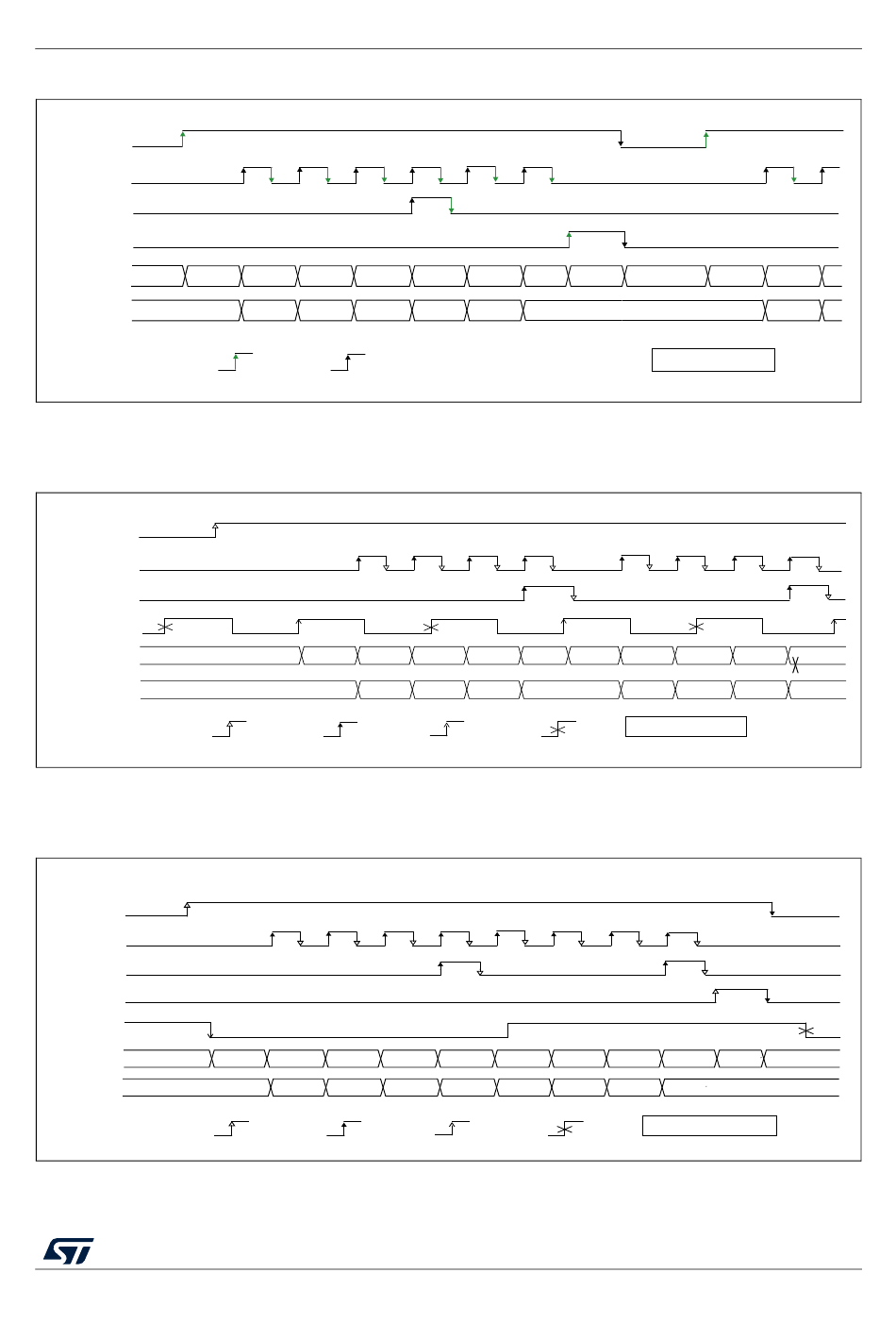

Figure 50. Continuous conversion of a sequence, software trigger
(1)
ADCSTART
EOC
EOS
ADSTP
(2)
ADC state
READY CH1
ADC_DR
by SW
1. EXTEN=0x0, CONT=1
2. Channels selected = 1,9, 10, 17; AUTDLY=0.
Figure 51. Single conversions of a sequence, hardware trigger
ADSTART
EOC
EOS
(1)
TRGX
(2)
ADC state
ADC_DR
by s/w
1. TRGx (over-frequency) is selected as trigger source, EXTEN = 01, CONT = 0
2. Channels selected = 1, 2, 3, 4; AUTDLY=0.
Figure 52. Continuous conversions of a sequence, hardware trigger
ADSTART
EOC
EOS
ADSTP
(1)
TRGx
(2)
ADC
RDY
ADC_DR
by s/w
1. TRGx is selected as trigger source, EXTEN = 10, CONT = 1
2. Channels selected = 1, 2, 3, 4; AUTDLY=0.
