GE Healthcare
Revision 1
Job Card PHY A010 - Mount LCD Monitor on Control Station
6
PROCEDURE
Note:
The Control Station supports 18" and 19" Monitors, and the optional 21" 3 MP Monitor.
Follow
section
6-1,
Mounting an 18" or 19" Monitor
Follow
section
6-2,
Mounting the optional 21" 3 MP Monitor
6-1
Mounting an 18" or 19" Monitor
When appropriate, the steps below show images for both arms.

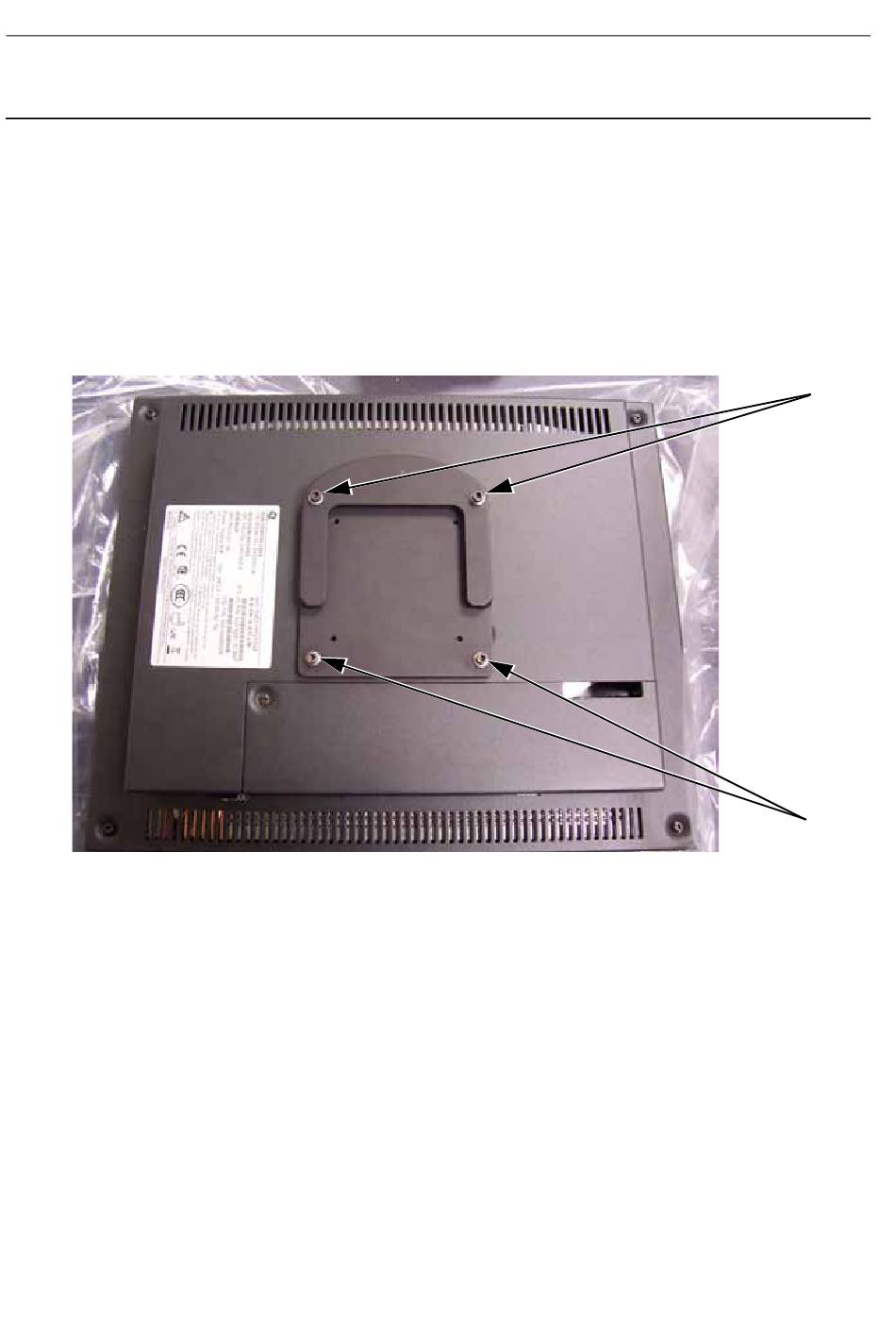

1. Place the monitor on a protected surface. Fix the screen plate to the monitor using washers and two
20 mm screws (1) on the top, and two 16 mm screws (2) on the bottom.
2. Put the monitor in place (the screen plate adjusted on the sliding pivot).
3. Fix the sliding pivot with the monitor using the four inner screws of 8 mm length (3) (3 mm allen
Chapter 6
Service Information and Procedures Class A 2385072-16-8EN
for 18" and 19" Monitors.
for the optional 21" 3 MP Monitor.
Page no. 436
Senographe DS
1
2
JC-PHY-A-010.fm
