GE Healthcare
Revision 1
Job Card PHY A009 - Opposite Side Rotative Arm Installation

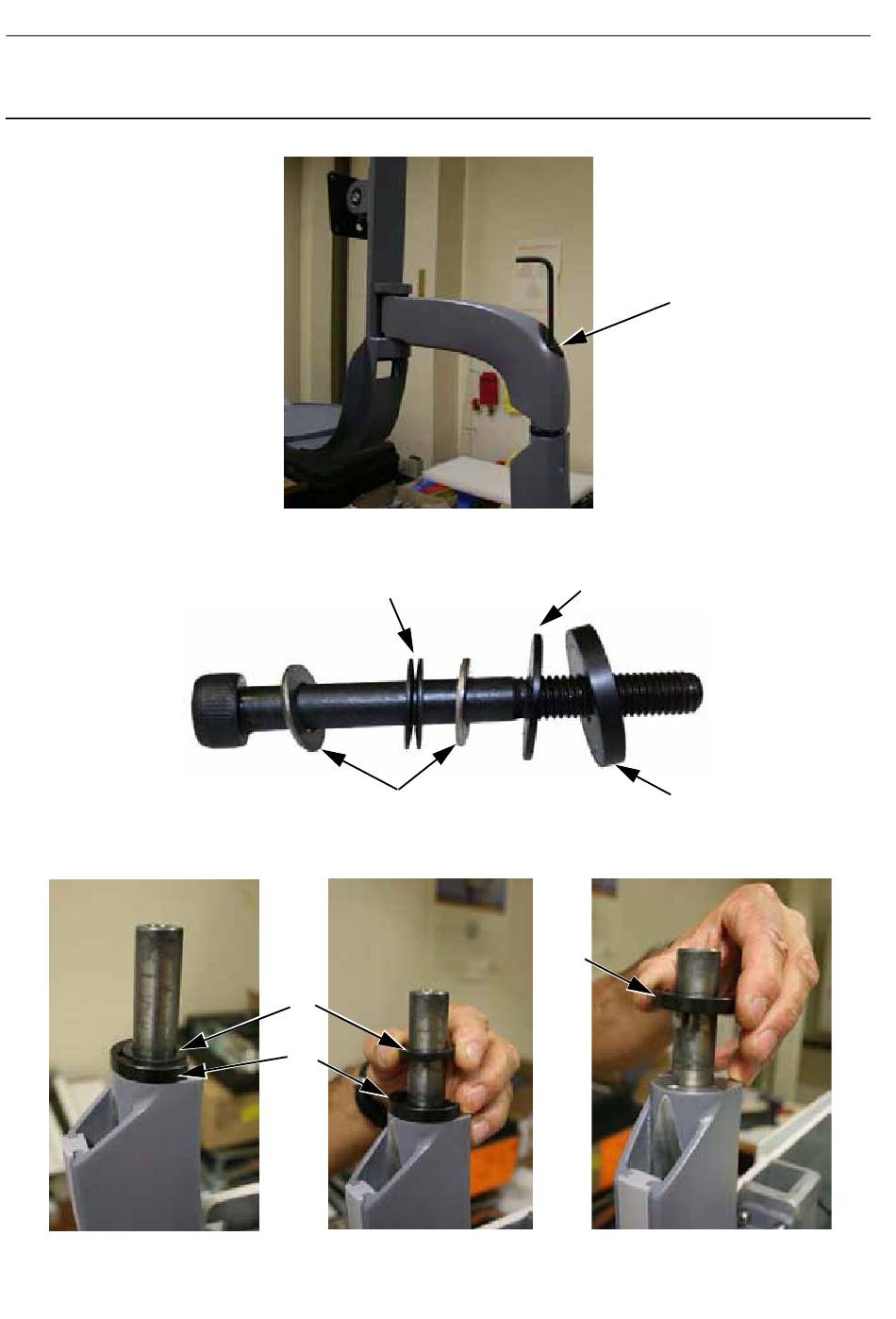

15. Remove the large allen screw (20) from the joint of the rotative arm (6 mm allen wrench).
16. Place the large allen screw and its washers in a clean place. Ensure that the washers on the large
allen screw are positioned as indicated below.
Small Black Washers Bending Away From Each Other
17. Remove the black plastic washer (21) and keep it close by as you will reinstall it with the left stop
bracket.
Chapter 6
Service Information and Procedures Class A 2385072-16-8EN
Small Silver Washers
21
22
Page no. 424
20
Medium Black Washer
Large Black Washer
22
Senographe DS
JC-PHY-A-009.fm
