GE Senographe DS Manual page 439

GE Healthcare
Revision 1
6-2 Mounting the optional 21" 3 MP Monitor

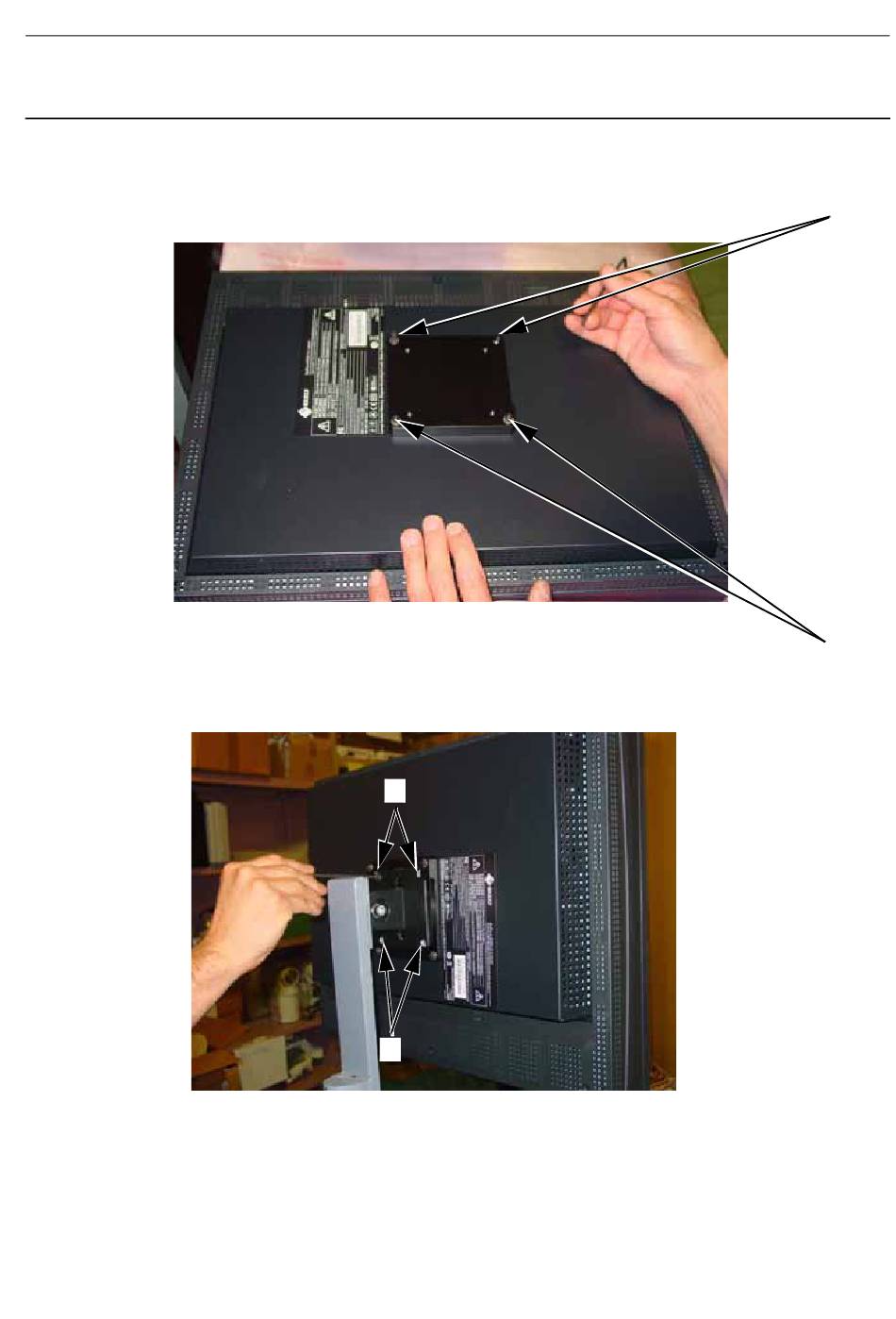

1. Place the monitor on a protected surface. Fix the screen plate to the monitor using washers and two
20 mm screws (1) on the top, and two 16 mm screws (2) on the bottom.
2. Put the monitor in place (the screen plate adjusted on the sliding pivot).
3. Fix the sliding pivot with the monitor using the four inner screws of 8 mm length (3) (3 mm allen
wrench).
JC-PHY-A-010.fm
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A010 - Mount LCD Monitor on Control Station
3
3
Page no. 439
Senographe DS
2
1
Chapter 6
