GE Senographe DS Manual page 301

GE Healthcare
Revision 1
1-11. W108 - 48 V DC Cable
AC/DC Converter Module J1 to EMC Filter E102 P.
1-12. W110 - 48 V DC
PDU Board PL101 J5 to Terminal block ST102.

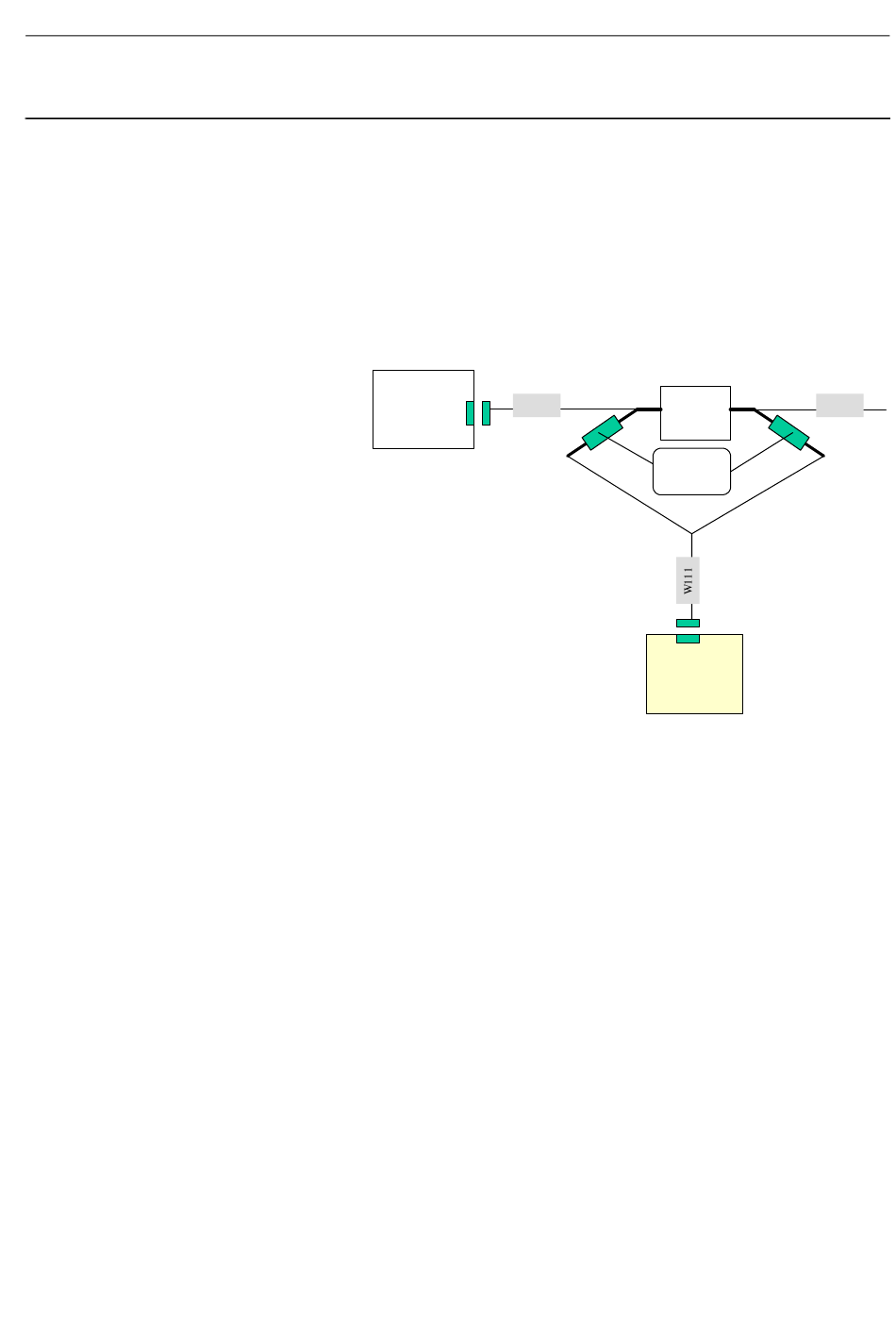

1-13. W109/W111/W113 - Shunt Cables
Shunt resistor and cable assembly:
W109 - 48 V DC
connects shunt resistor R101 to the EMC filter E102.
W111 - 48 V DC
connects shunt resistor R101 to the PDU Board PL101.
W113 - 48 V DC
connects shunt resistor R101 to the terminal block ST102-F1/2.
1-14. W111 - 48 V DC Cable
See W109/W111/W113 - Shunt Cables on page
1-15. W112 - 48 V DC Cable 4
EMC filter E102 N' to Terminal Block ST102-X1.
1-16. W113 - 48 V DC Cable
See W109/W111/W113 - Shunt Cables on page
Cables.FM
Service Information and Procedures Class A 2385072-16-8EN
AC/DC
W109
PS101
J1
301.
301.
Page no. 301
Cable Lay-out and Pin-out
Shunt
R101
R
4.7kOhm
1
0.5W 5 %
J4
PDU
Board
PL101
Senographe DS
W113
2
Chapter 3
