2-7. Supply Command Board 200PL2

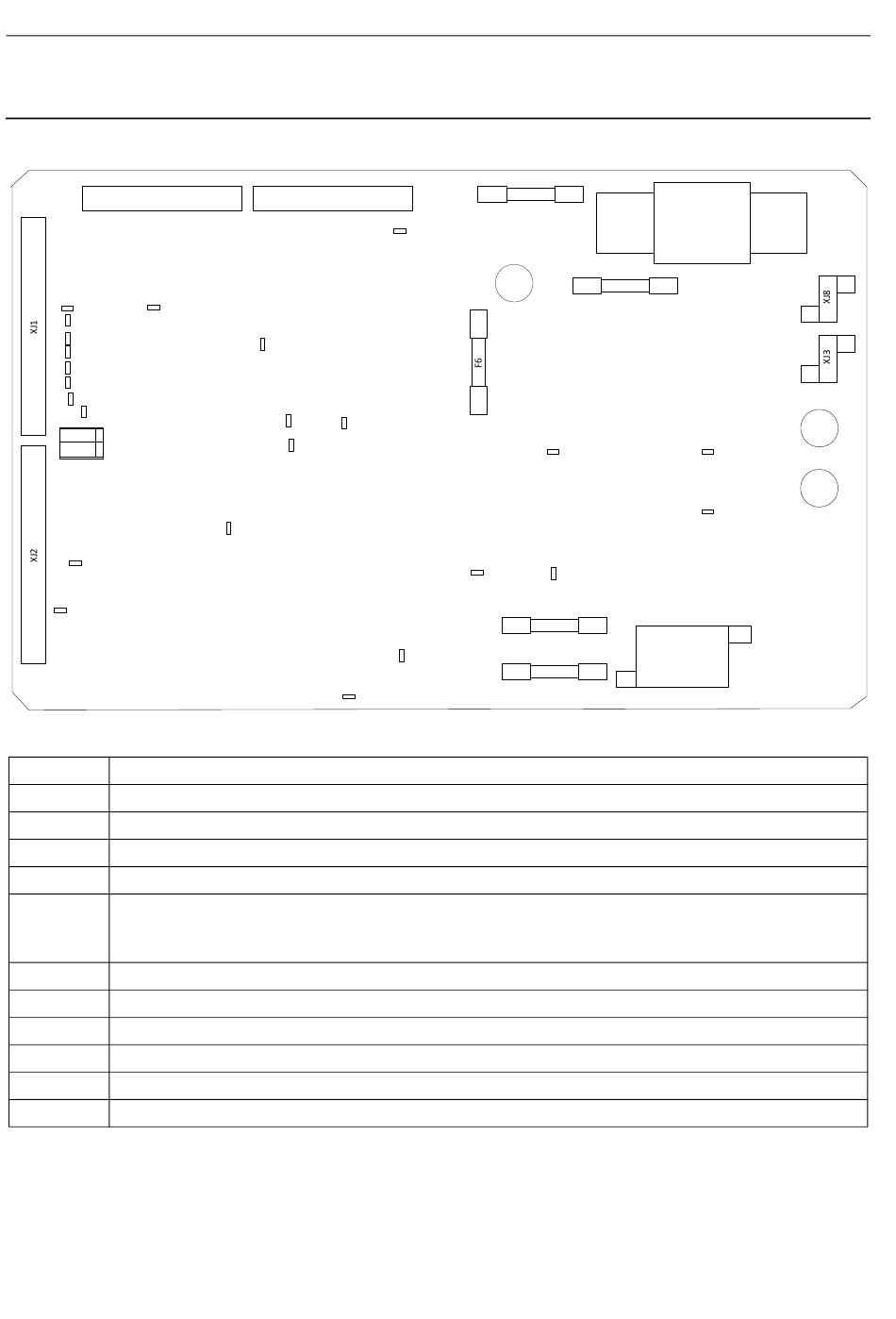

Supply Command Board 200PL2 Connectors

To the XJ1 connector on the Generator Command Board 400PL1 (standby power supply)

To/from the XJ11 connector on the Mains Distribution Board 200PL1 (12 V, control/data signals)

To emergency stop button on Gantry and thermal switch the Auto Transformer (security signal)

To the XJ13 connector on the Generator Command Board 400PL1 (control signals)

To the XJ4 connector on the Relay Board 200PL4 (control/data signals)

To the XJ2 connector on the Generator Command Board 400PL1 (0, +250 V DC)

To the CN1 connector on the BT Power Supply (0, +250 V DC)

To the XJ3 connector on the Anode Starter Board 300PL2 (0, +250 V DC)

+ 27 V on the C1 capacitor in the Generator

0 V on the C1 capacitor in the Generator

Service Information and Procedures Class A 2385072-16-8EN

Thermostat (+27 V)

To auto transformer (250 V)
