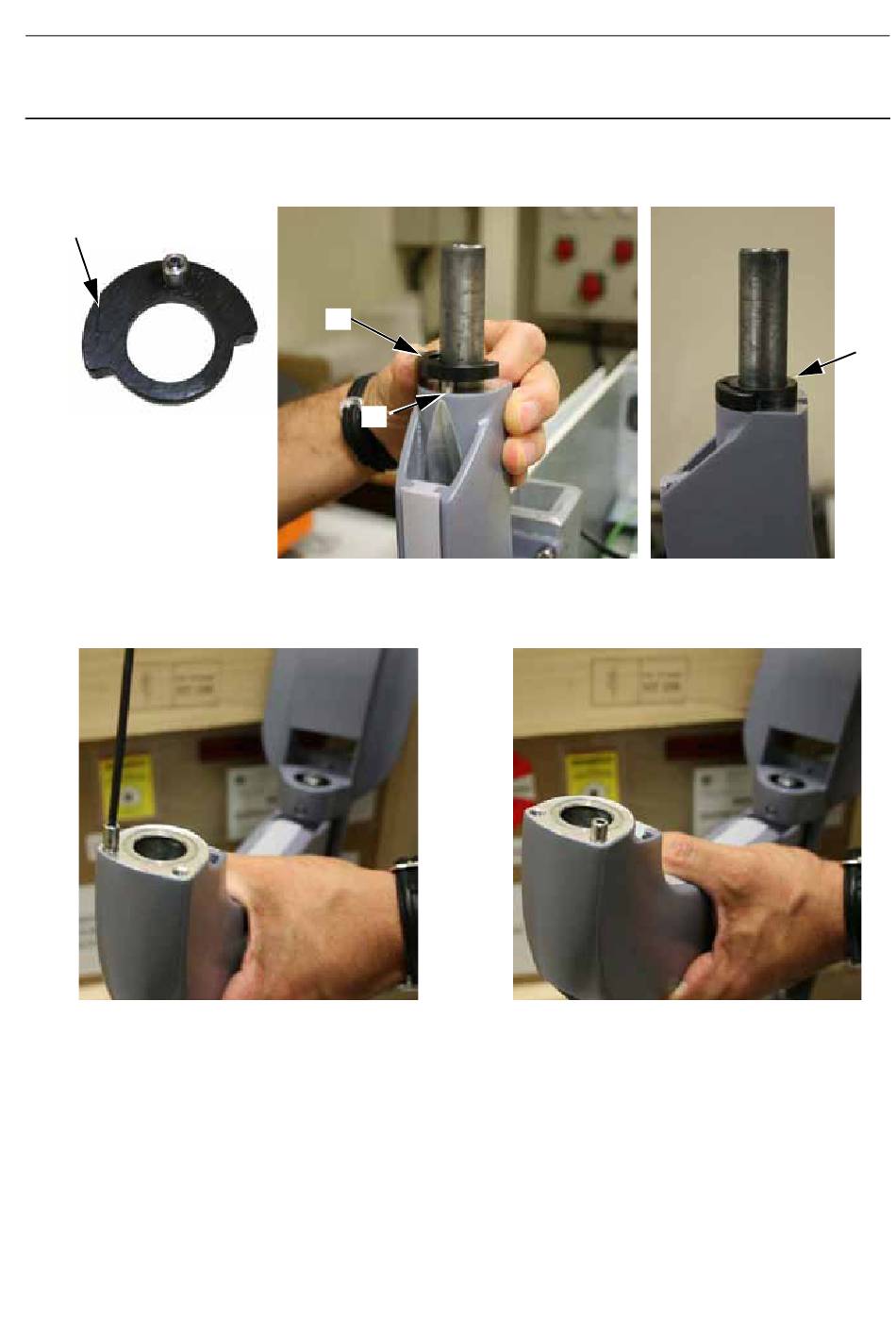

18. Remove the right stop bracket (22) and put it in the bag containing the stop bracket set.
19. Take the left stop braket (labeled with an "L") from the stop bracket set. Place the left stop bracket
(23) with its lug facing downwards, so that the lug goes into the hole (24) as shown below.
L
20. Reinstall the black plastic washer (25) on top of the left stop bracket.
21. On the upper part of the rotative arm, move the stop bracket screw from its original position to the
opposite side (3 mm allen wrench).
Original Position : Right Hand Stop Bracket
JC-PHY-A-009.fm
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A009 - Opposite Side Rotative Arm Installation
23
24
Page no. 425
New Position :Left Hand Stop Bracket
Senographe DS
25
