Job Card PHY A009 - Opposite Side Rotative Arm Installation

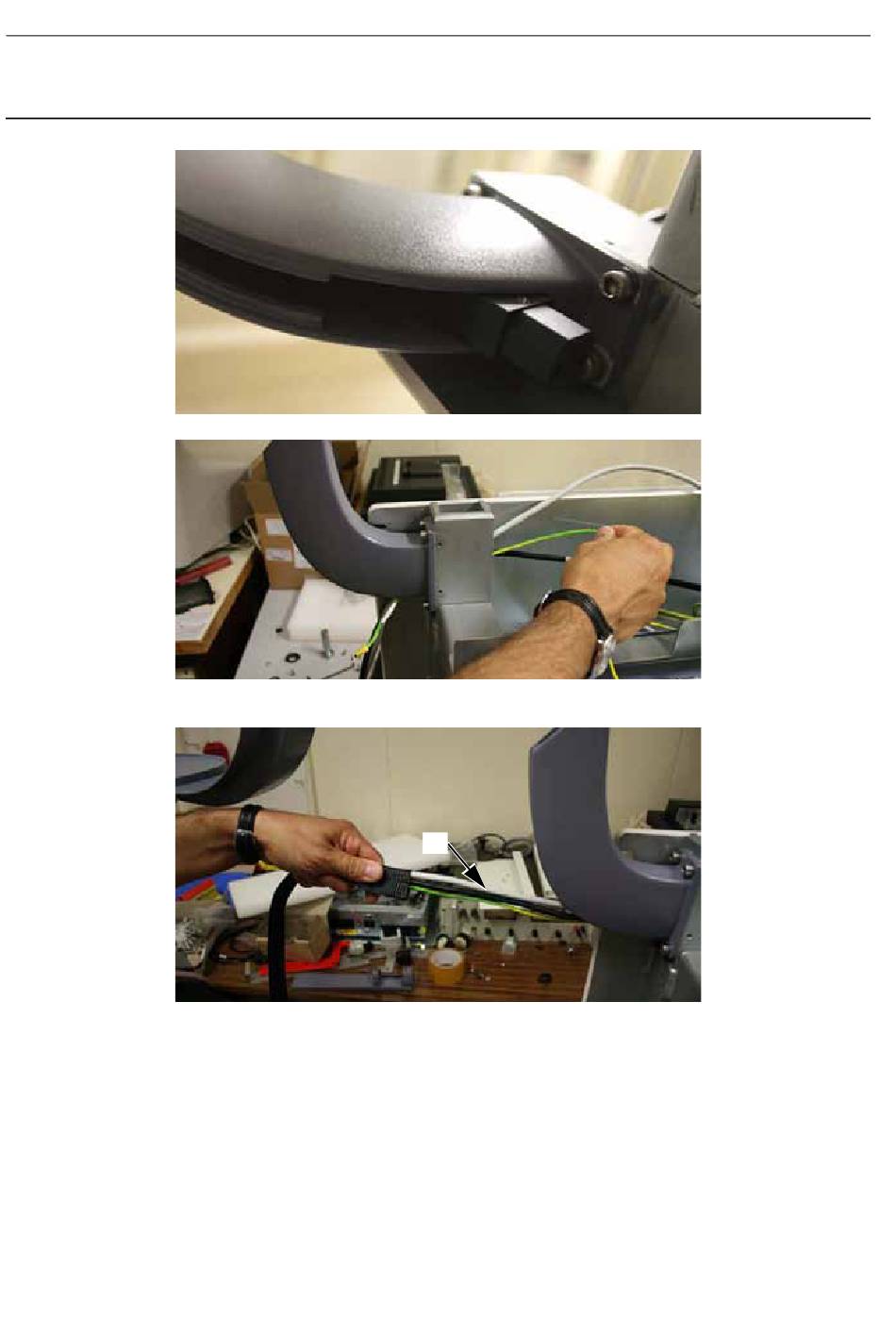

c. Thread the power cable through the opening of the rotative arm support as shown below.
d. Thread the ground cable through the opening of the rotative arm support.
27. Thread the monitor cables (34) through the harness. Ensure that the monitor cables do not cross
each other, as shown below.
28. Put the harness through the opening of the monitor support (35). To do this, pull the harness back
from the monitor cables and insert the monitor cables through the opening of the monitor support in
the following order:
• Power cable
• DVI video cable
