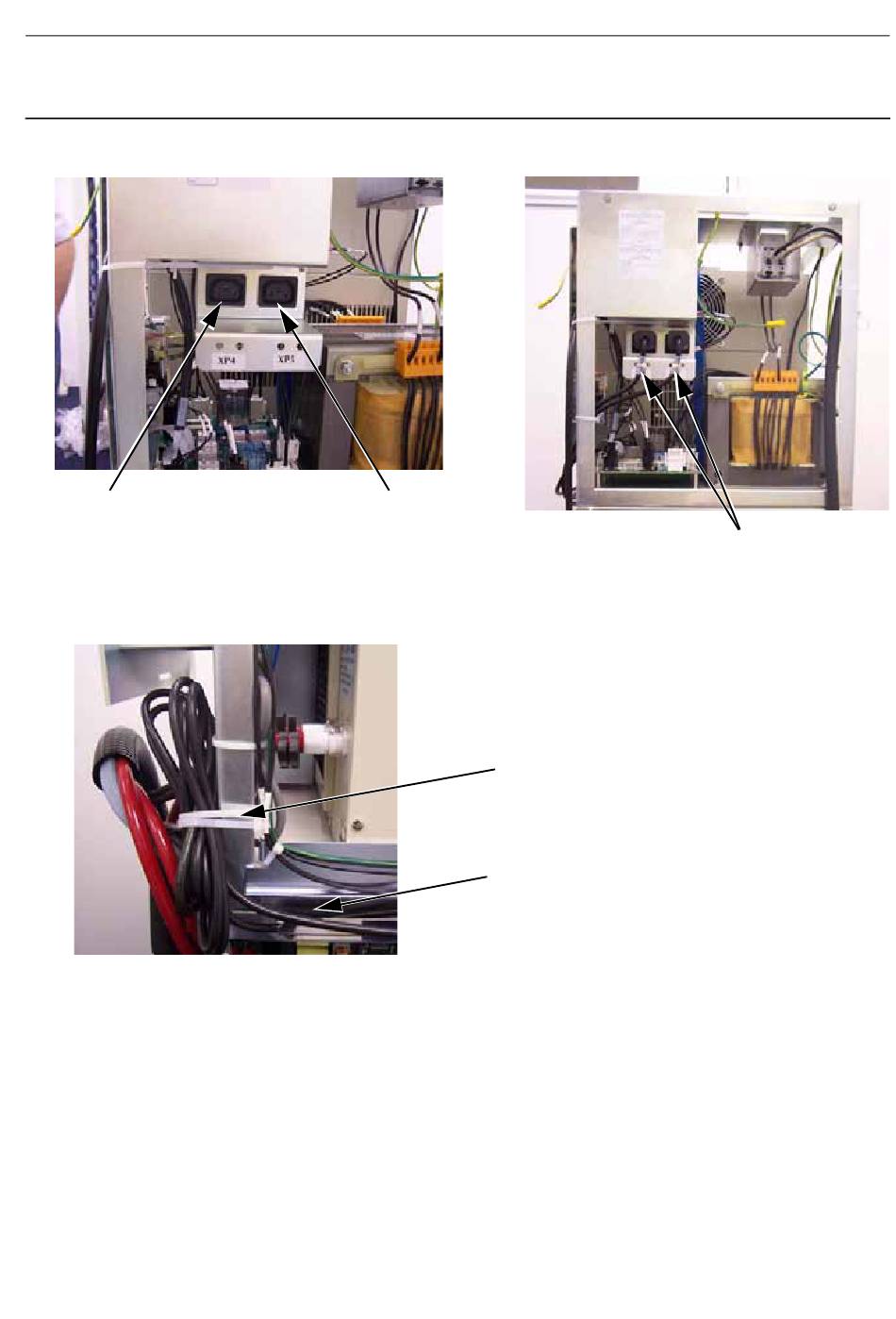

16. Connect the black power cables labeled XJ4 Cond. Cab. 2225470 and XP5 Cond. Cab. 2386021 to
the MDR XP4 and XP5 connectors, respectively.
XP4
17. Secure these two power cables to the MDR with the cable ties (12).
18. Route the power cables along the edge of the Generator framework (13) and secure any remaining
slack with cable ties (14).
