Job Card PHY A030 - Generator and Gantry Disconnection Reconnection
8

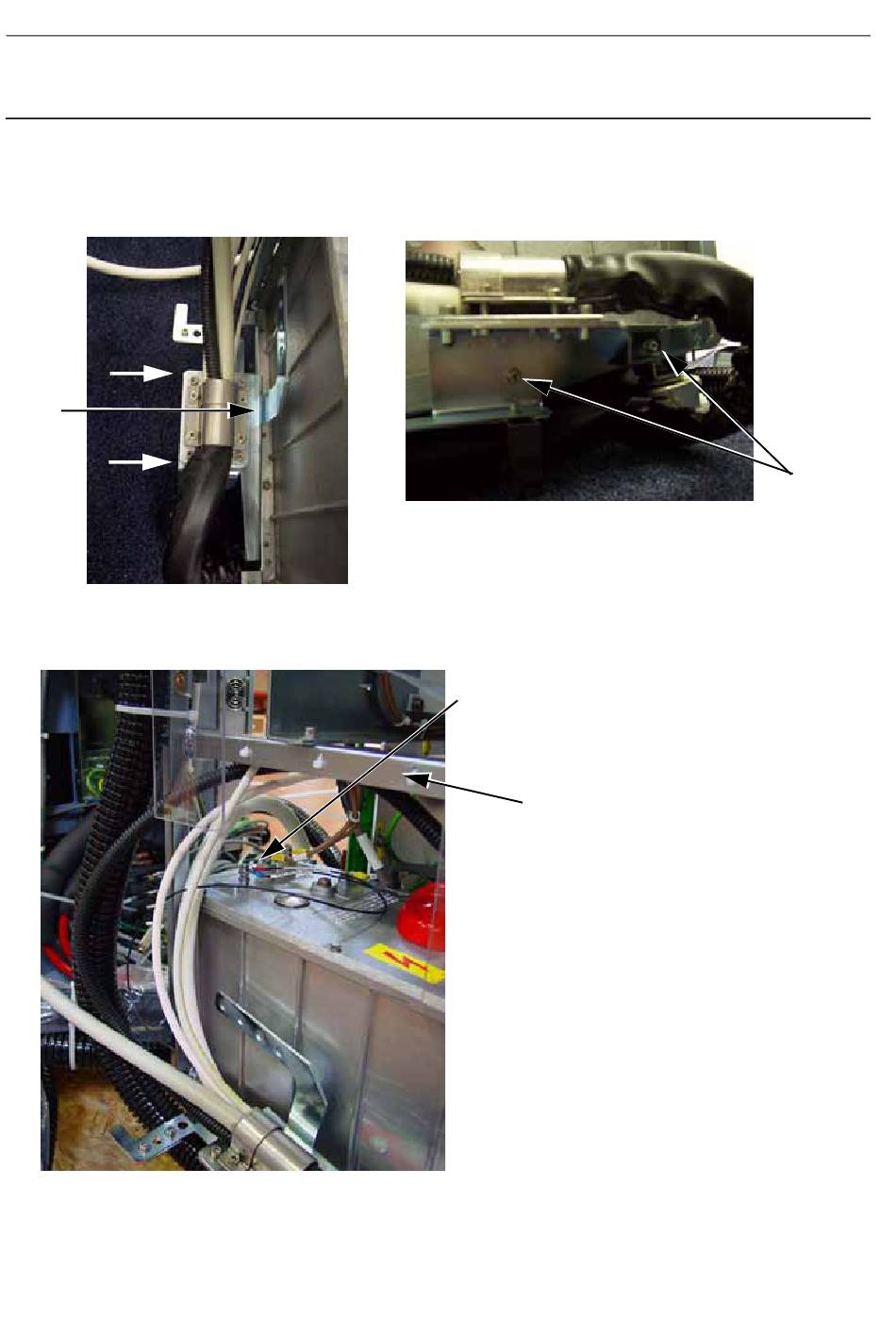

GENERATOR RECONNECTION PROCEDURE
Use the following steps to reconnect the Gantry connections to the various parts of the Generator:
1. Secure the Generator cable bracket (1) to the Generator framework with the two allen screws (2)
(4 mm allen wrench) .
1
2. On the HT block, connect the X-ray Tube Housing Return Cable to the earth connector (8 mm open-
ended wrench). This cable is the black cable with the red plastic ending (3), labeled HT+ GND /
2381701.
3. Except for the HV cable, ensure that all of the cables leaving conduit 2 are routed underneath the
Generator framework horizontal side bar.
Chapter 6
Service Information and Procedures Class A 2385072-16-8EN
3
Horizontal Side Bar
Page no. 492
Senographe DS
2
JC-PHY-A-030.fm
