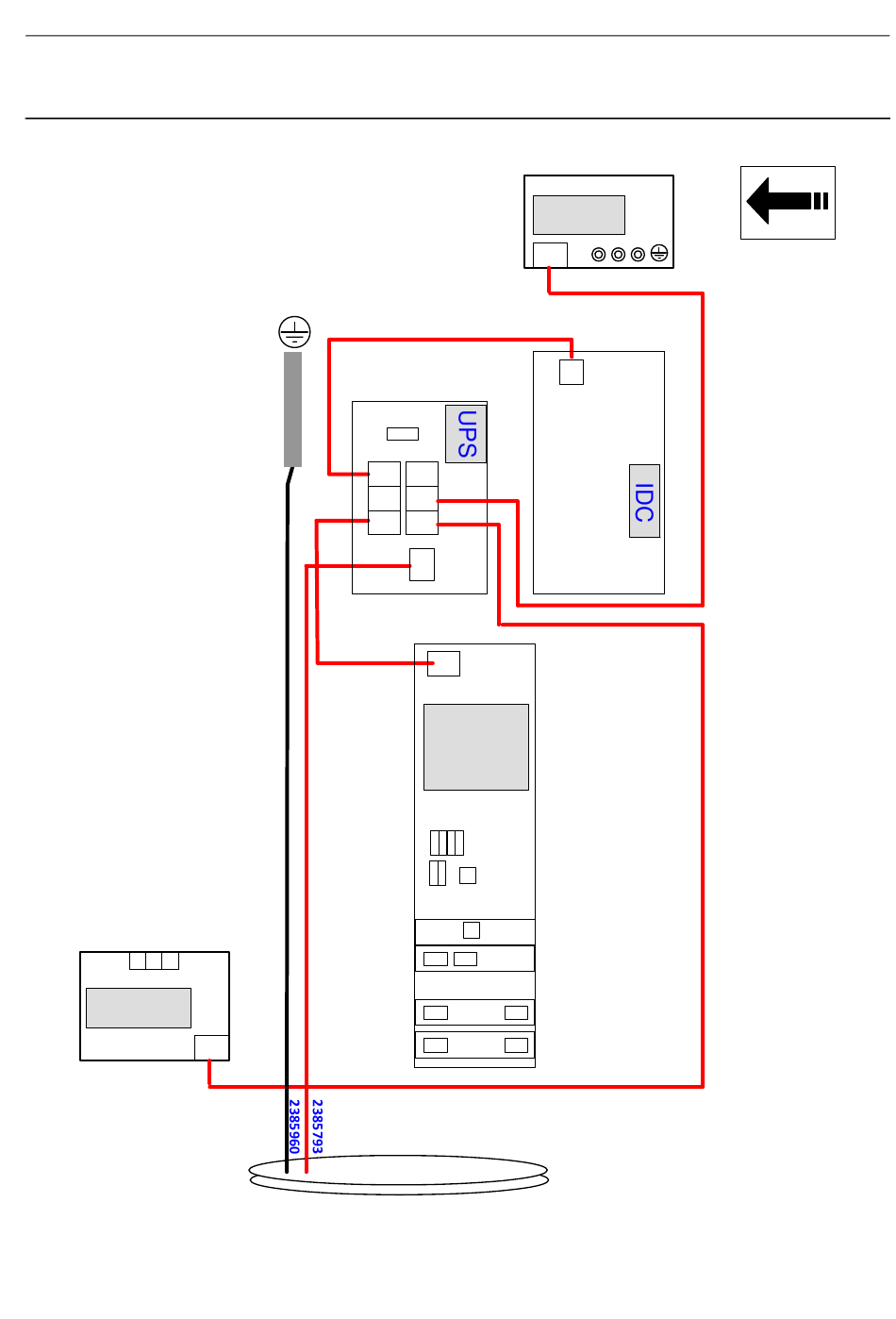

7-2 Control Station Power Distribution Diagram
ETHERNET
SWITCH
JC-PHY-A-014.fm
AC
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A014 - Connect Gantry to Control Station
AC
OUT
AC AC
AC AC
AC AC
AC
IN
AC
Z400
USB
USB net1
net0
PCIe2
1 2
PCI1
PCI0
