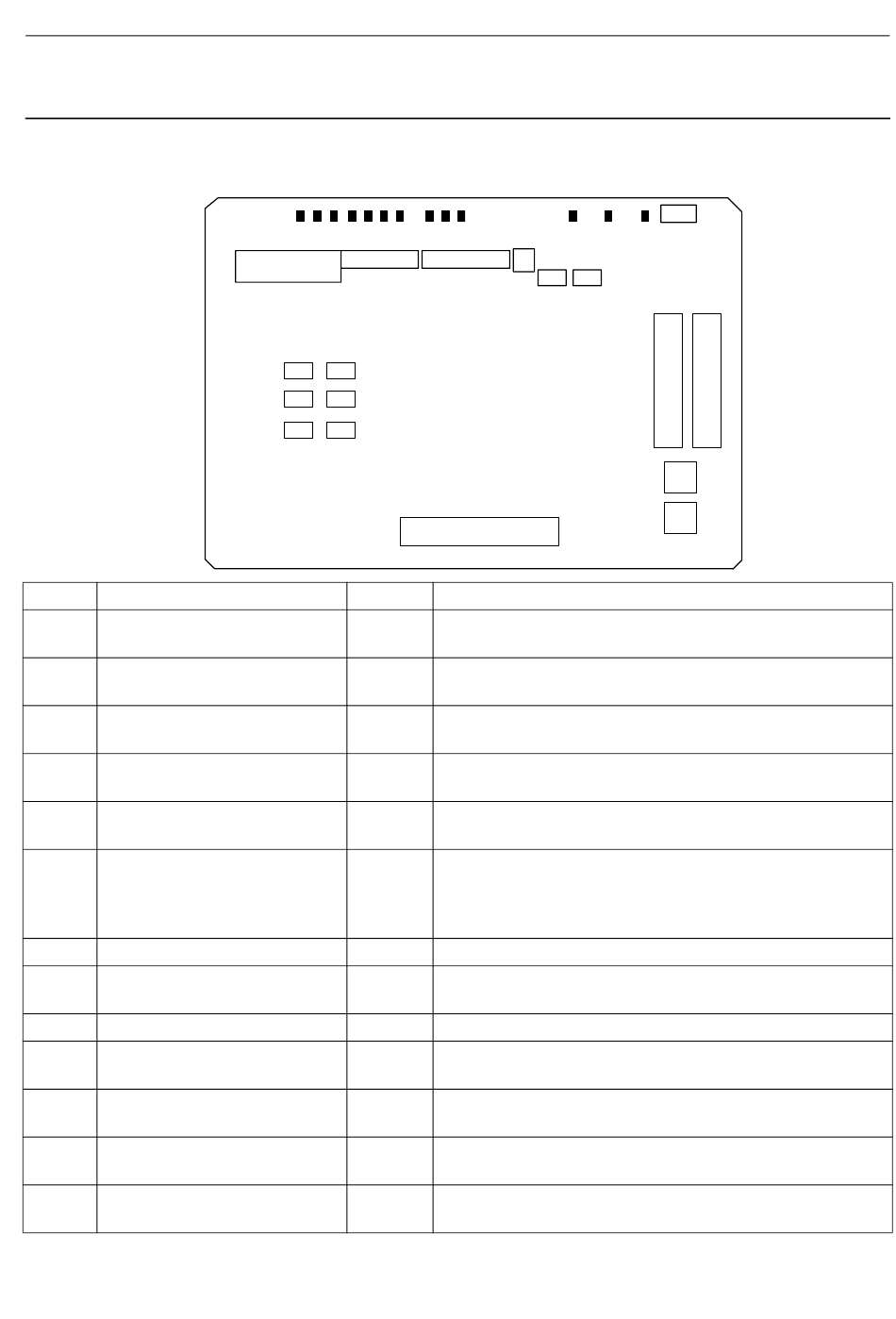

4-4. Interface Board PL104
• Board-Interface PL104; see component index page 158
LED Function
DS1
DS2
DS3
DS4 Enable Reset
DS5 Reset Interface Board
DS6 FPGA not configured
DS7 Not used
DS8 Ethernet RX
DS9 Not used
DS10 X-Ray On
DS11 Active link connection
DS12 Exposure Command
DS13 Exposure Enable
Indicators and Switches.fm
DS12 DS11
DS13 DS10 DS8
J2
J11
Color
5 V Green
3,3 V Green
15 V Green
Green
Green
Green
Yellow
Green
Yellow
Yellow
Service Information and Procedures Class A 2385072-16-8EN
.
DS9 DS6 DS5
DS7 DS4
J3
J4
ON when 5v supply voltage is OK
OFF when 5v supply voltage is defective
ON when 3.3v supply voltage is OK
OFF when 3.3v supply voltage is defective
ON when 15v supply voltage is OK
OFF when 15v supply voltage is defective
Red ON while the Interface board is being reset.
OFF when the Interface board is functioning normally.
Red ON while the Interface board is being reset.
OFF when the Interface board is functioning normally.
Red On when the FPGA is not configured. The board is faulty
and needs replacing.
OFF when the FPGA is configured, and the board is oper-
ating correctly.
Not used (debug only)
ON when the Interface board receives Ethernet data.
OFF when the Interface board receives no Ethernet data.
Not used (debug only)
ON when X-Rays are being generated
OFF when X-Rays are not being generated
ON when active Ethernet connection exists.
OFF when no active Ethernet connection exists.
ON when an exposure command is received
OFF when no exposure command is received
ON when an exposure is currently enabled
OFF when an exposure is currently not enabled
Page no. 293
J1
DS3 DS2 DS1
J7 J6
Jn2
Jn1
Behavior
