Pre-Installation System Requirements
6.

DOOR LIGHTS AND SAFETY SWITCH

To meet safety and regulatory requirements, access to rooms in which X-ray equipment is installed must

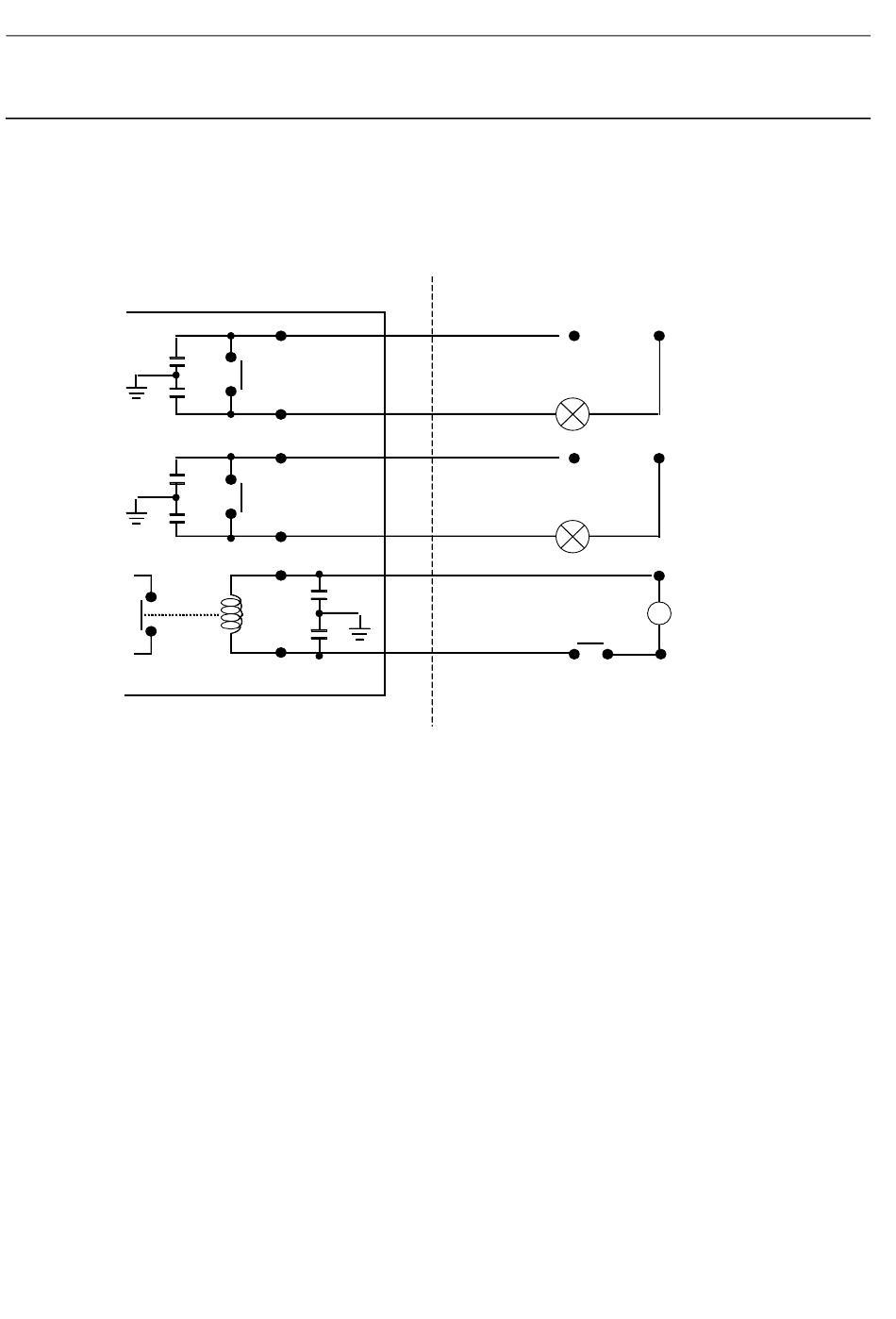

be controlled by warning lights and safety switches. The Generator provides facilities to meet these
requirements. The diagram below shows the circuits used, and indicates items required for supply by the
customer. See also section
GENERATOR RACK
Board
200PL4
Note:
The load current ratings of relays K1 and K2 are 5 A/30 V AC or DC. For safety reasons, the elec-
trical source for the K1 and K2 lamps (i.e. Seno ON and X-ray ON lamps) must be no more than
30 V. You cannot use a 250 V source under any circumstances.
The relay K3 must be supplied with 24 V ac.
7.

ROOM LIGHTING

In order to obtain a room brightness value of 100 lux or less for correct viewing of monitor images, the
room lights must be equipped with a dimmer switch. Shades and/or drapes must be fitted to windows.
Chapter 4
Service Information and Procedures Class A 2385072-16-8EN
5-2 above for the power presence indicator LMP1.
K1 XJ1
K2
XJ2
K3
XJ3
CUSTOMER-SUPPLIED ITEMS
Room door switch
Contacts open when door opens
Page no. 338
Senographe DS
AC or DC
30 V max
Seno ON lamp
LMP2
AC or DC
30 V max
X-ray ON lamp
LMP3
~
24 V AC
external power
