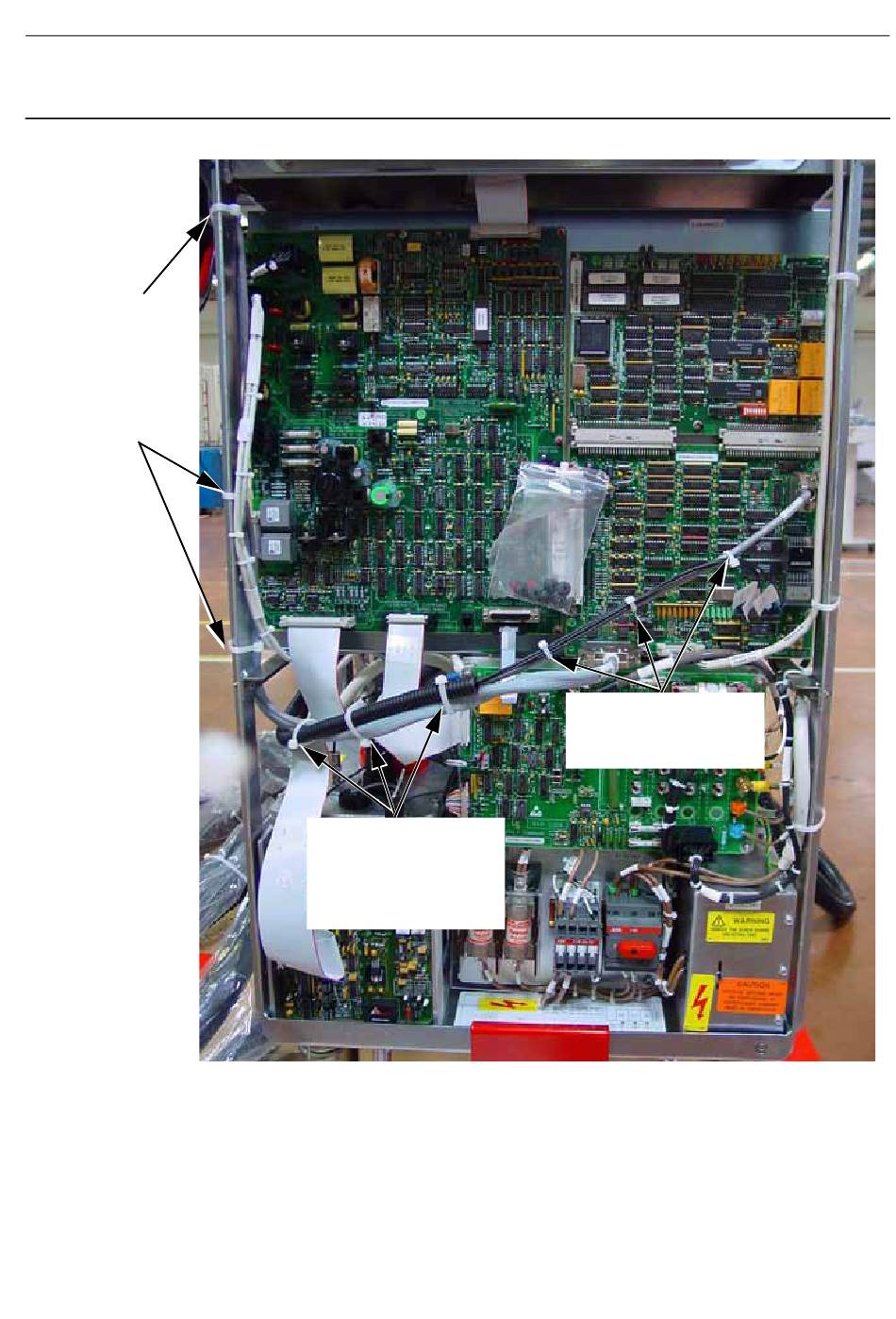

22. Secure and route the cables on the side of the Generator as shown in the diagram below.
Secure the two cables
labeled XJ4 GENE 400
PL2
2226623
and
XJ10 GENE 400 PL2
2226613 going to the
lower part of the Gen-
erator with cable ties.
JC-PHY-A-030.fm
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A030 - Generator and Gantry Disconnection Reconnection
Secure the two cables labeled
XJ4 GENE 400 PL2 2226623
and XJ10 GENE 400 PL2
2226613 from conduit 1 and
the optical fiber conduit from
conduit 2 together.
Page no. 501
Secure the cable labeled XJ4
GENE 400 PL2 2226623 from
conduit 1 and the optical fibers
from conduit 2 together.
Senographe DS
