two bolts (4) (7 mm open ended wrench).

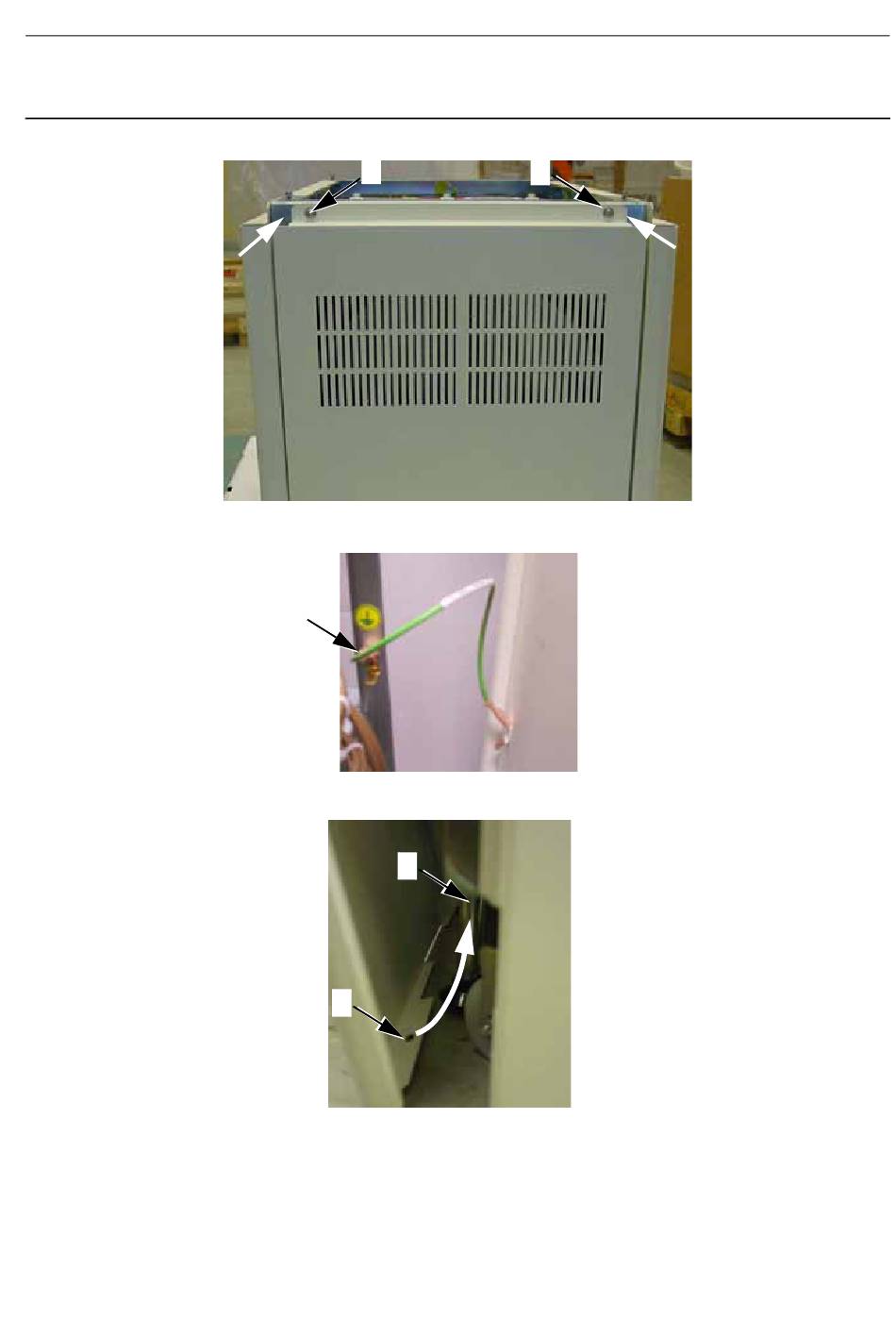

3. For the front and back covers, do the following:
a. Connect the cover ground wire (5) to the Generator cabinet.
b. Raise the cover from the floor so the holes (6) in the bottom end of the cover pass on to the rods
(7) on each side.
c. Slide the lip of the cover upwards so it passes side of the Generator cabinet. Fully push the cover
on to the top of the Generator cabinet. Then secure the cover to the Generator cabinet with the
JC-PHY-A-042.fm
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A042 - Remove/Reinstall Generator Covers
