Job Card PHY A014 - Connect Gantry to Control Station

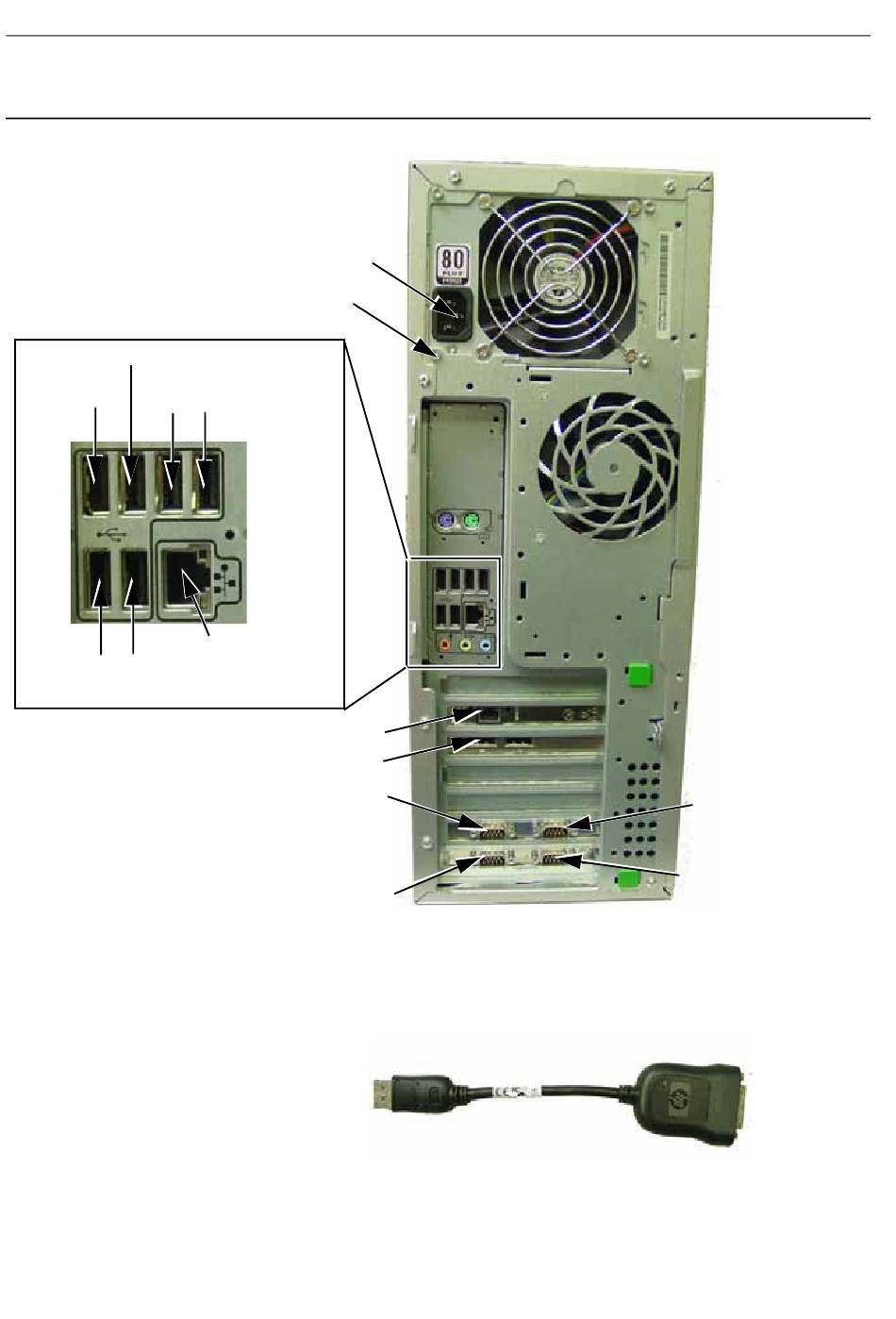

ILLUSTRATION 1 - ADS REAR PANEL CONNECTIONS
Keyboard
Mouse
Empty
Bar Code Empty
Scanner
Ethernet cable to hospital network
Monitor Cable via DVI-I adaptor
12 – DB9 Generator serial link (2226625)
Note: Ensure that the monitor DVI cable is connected to the left hand side display port (number 1) on the
back of the ADS computer. The monitor DVI cable must be connected to the display port via a DVI-I - dis-
play port adaptor cable shown below.
Chapter 6
AC input from UPS
Ground
Ethernet cable to
internal switch
(2389288-2)
Empty
Service Information and Procedures Class A 2385072-16-8EN
Page no. 458
Senographe DS
11 – DB9 UPS
serial link (2387162)
DB9 Service Key link
