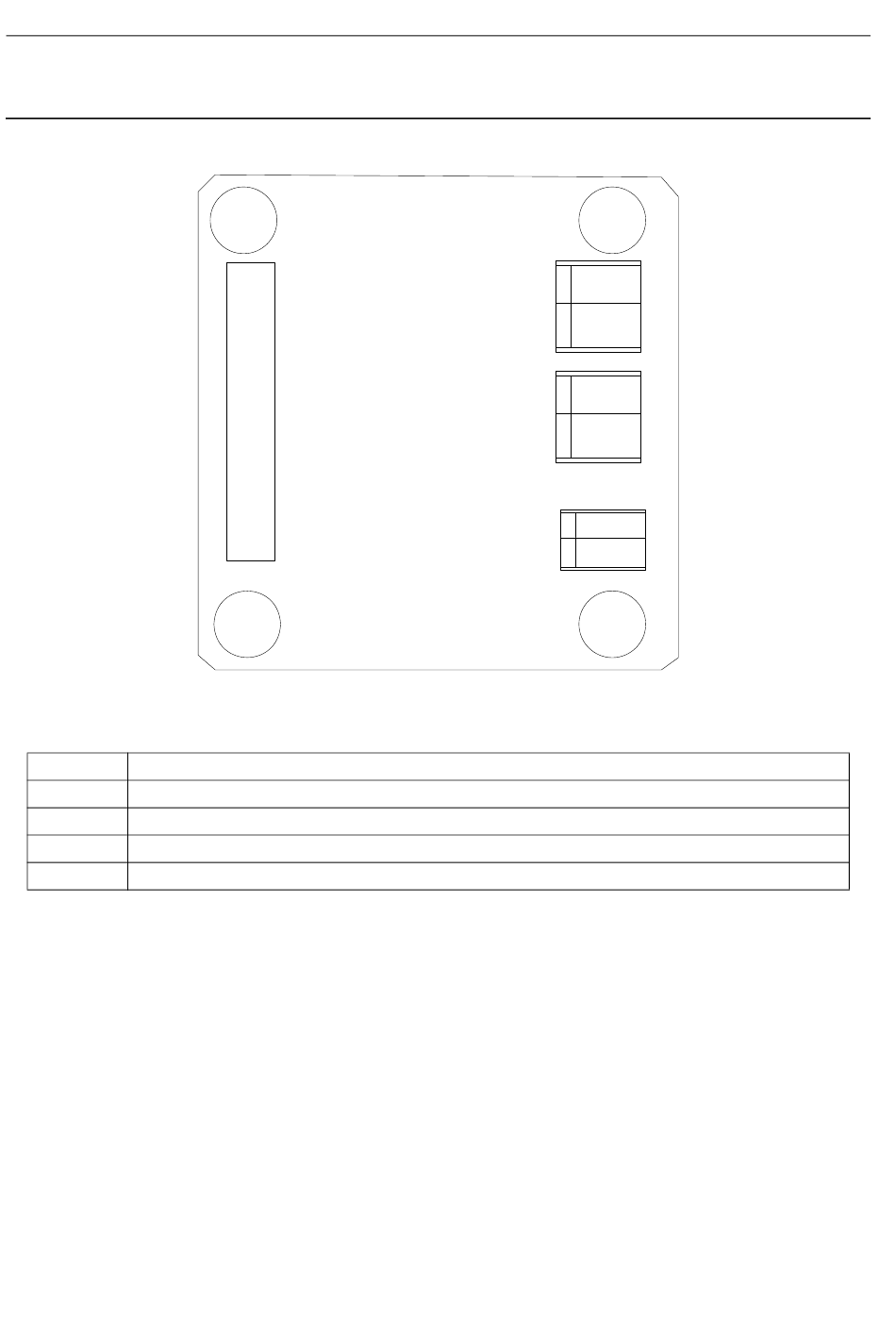

2-8. Relay Board 200PL4
2-8-1. Relay Board 200PL4 Connectors
Connector
XJ1
XJ2
XJ3
XJ4
Chapter 3
XJ4
X-ray Room Lamp Indicator Cable - Senographe System ON
X-ray Room Lamp Indicator Cable - X-ray ON
X-ray Room Lamp Indicator Cable - Room Door
To the XJ4 connector on the Supply Command Board 200PL2 (control signals)
