Job Card PHY A030 - Generator and Gantry Disconnection Reconnection

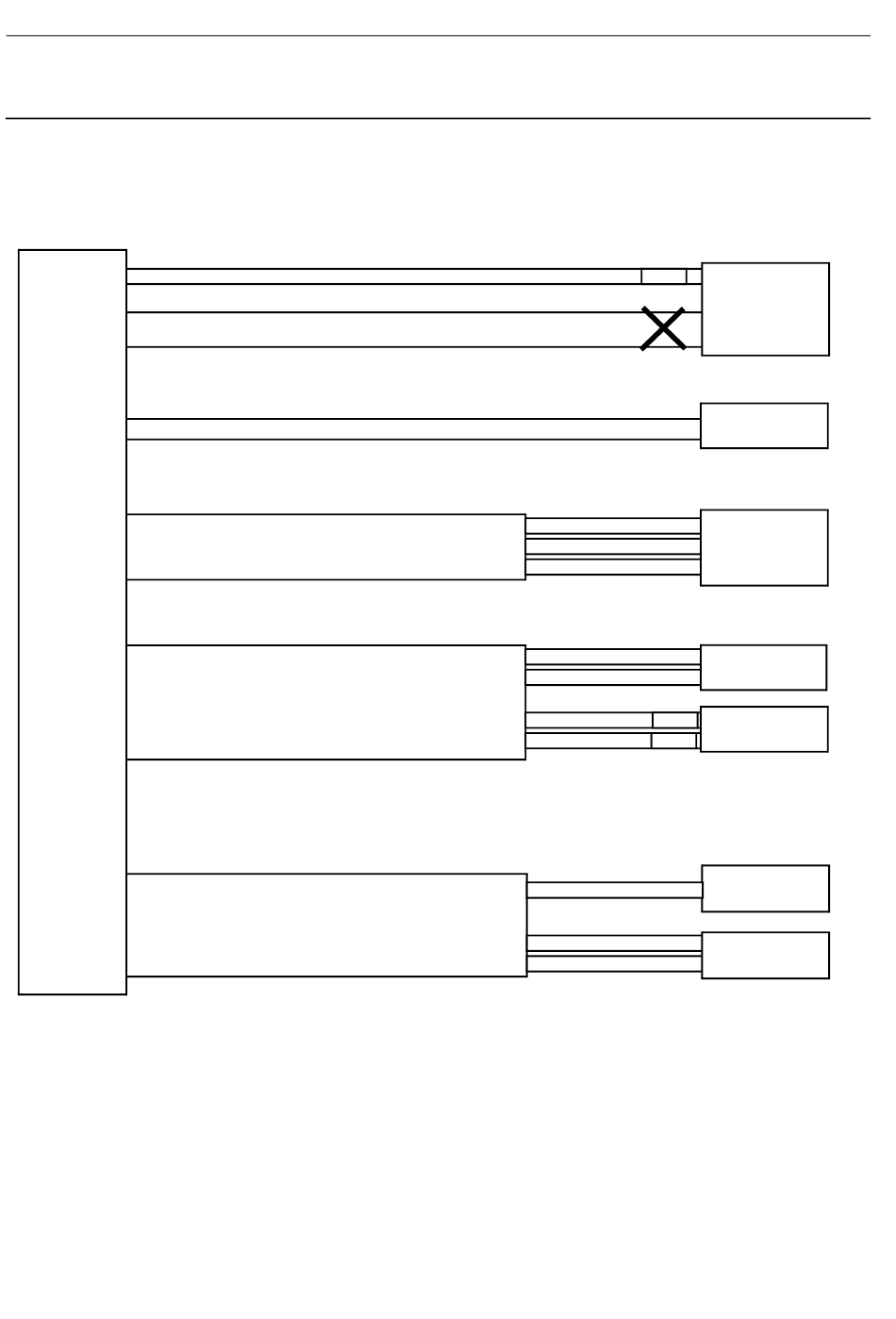

6-3 Conduit 2
Conduit 2 is secured to the bottom of the Gantry with a Generator cable bracket that is fixed to the side
Generator. The cables leave conduit 2 in close proximity to the HV Tank and are routed to lower parts of
the Gantry as illustrated below.
Conduit 2
Chapter 6
Service Information and Procedures Class A 2385072-16-8EN
Black Cable - No Label
HV Cable labeled 2379842 REV 01
Cross indicates that the HV Cable is not connected in this Job Card,
but in Job Card PHY A015 - HT Cable Connection on page 467
G300-PL2 XP1 (2381701)
Black conduit containing three optical fibers
Gene W125 - 2381710
Off-white Gantry AC Supply cable
labeled 2381711
Page no. 482
HV Tank
Red
Earth
HV Connector
XJ2
Generator Interface
XJ6
400 PL2 XJ6 2381702
XJ7
400 PL2 XJ7 2381704
XJ9
400 PL2 XJ9 2381706
Orange Coupling
Black
To BR1
Black To TH1
Bolt above XJ1
Black Blue
PT10
Black Red
Earth
Green/Yellow Earth
XJ3/PH1
Pink PH1
XJ1/PH2
Blue PH2
Mains Distribution
Senographe DS
Anode Starter
300PL2
Board 400PL2
Block
Supply Command
Board 200PL2
Power Line
Filter Box
Board 200PL1
