Job Card PHY A010 - Mount LCD Monitor on Control Station

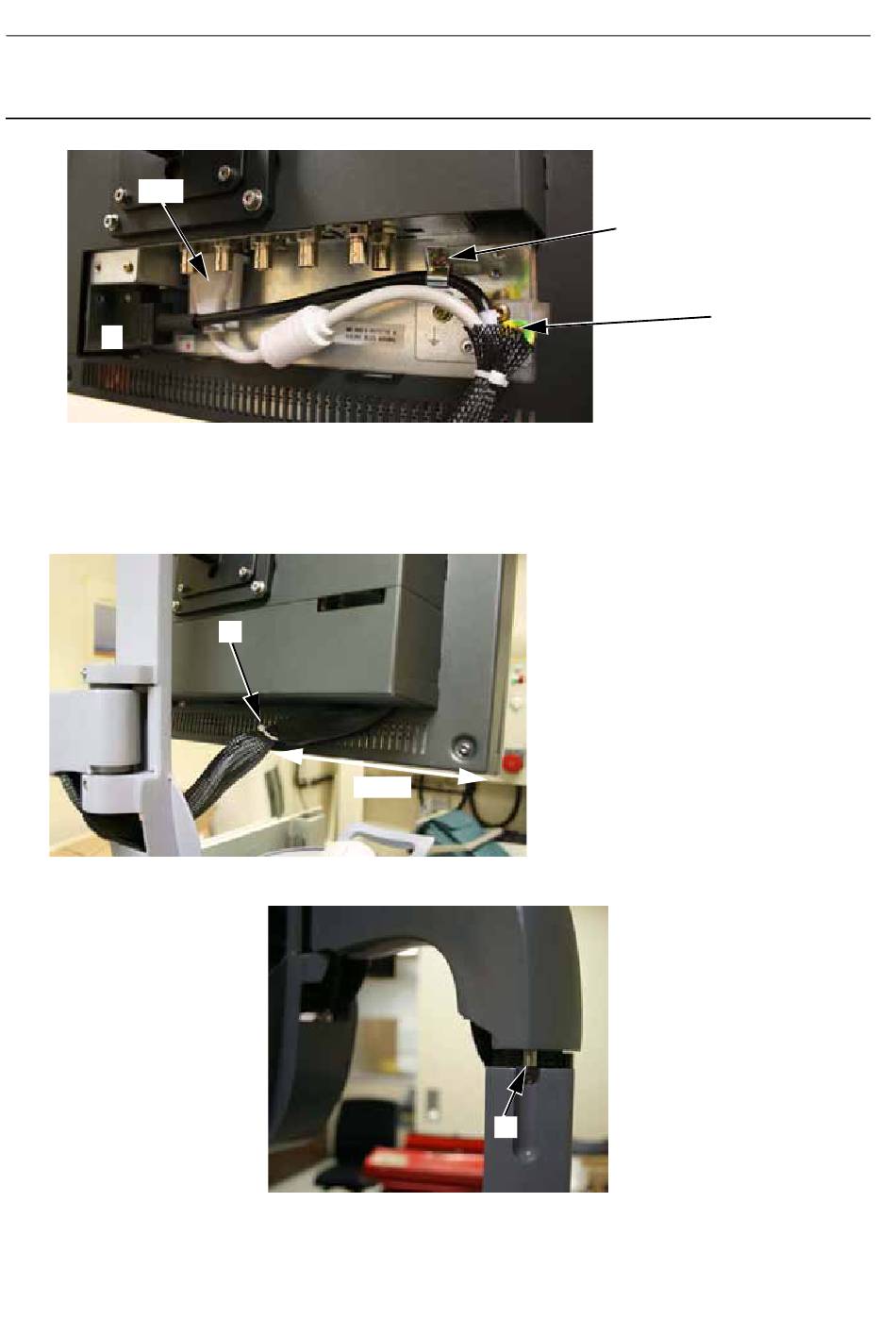

6. Connect the DVI video cable as follows..
DVI
7
7. Connect the power supply cable (7) and secure it with a cable clamp (8).
8. Re-install the cable protecting plate (5) while ensuring that the cables pass through the exit without
being trapped, and tighten the securing screw (4) (screwdriver).
9. At 17 cm away from the right edge (looking from behind), secure the harness to the back of the LCD
monitor with a black cable tie (9).
10. Perform a monitor collision check. To do this, check that the stop bracket and stop bracket screw (10)
is correctly positioned to avoid a collision with the radiation screen.
Chapter 6
Service Information and Procedures Class A 2385072-16-8EN
9
17 cm
Page no. 438
8
10
