Job Card PHY A009 - Opposite Side Rotative Arm Installation

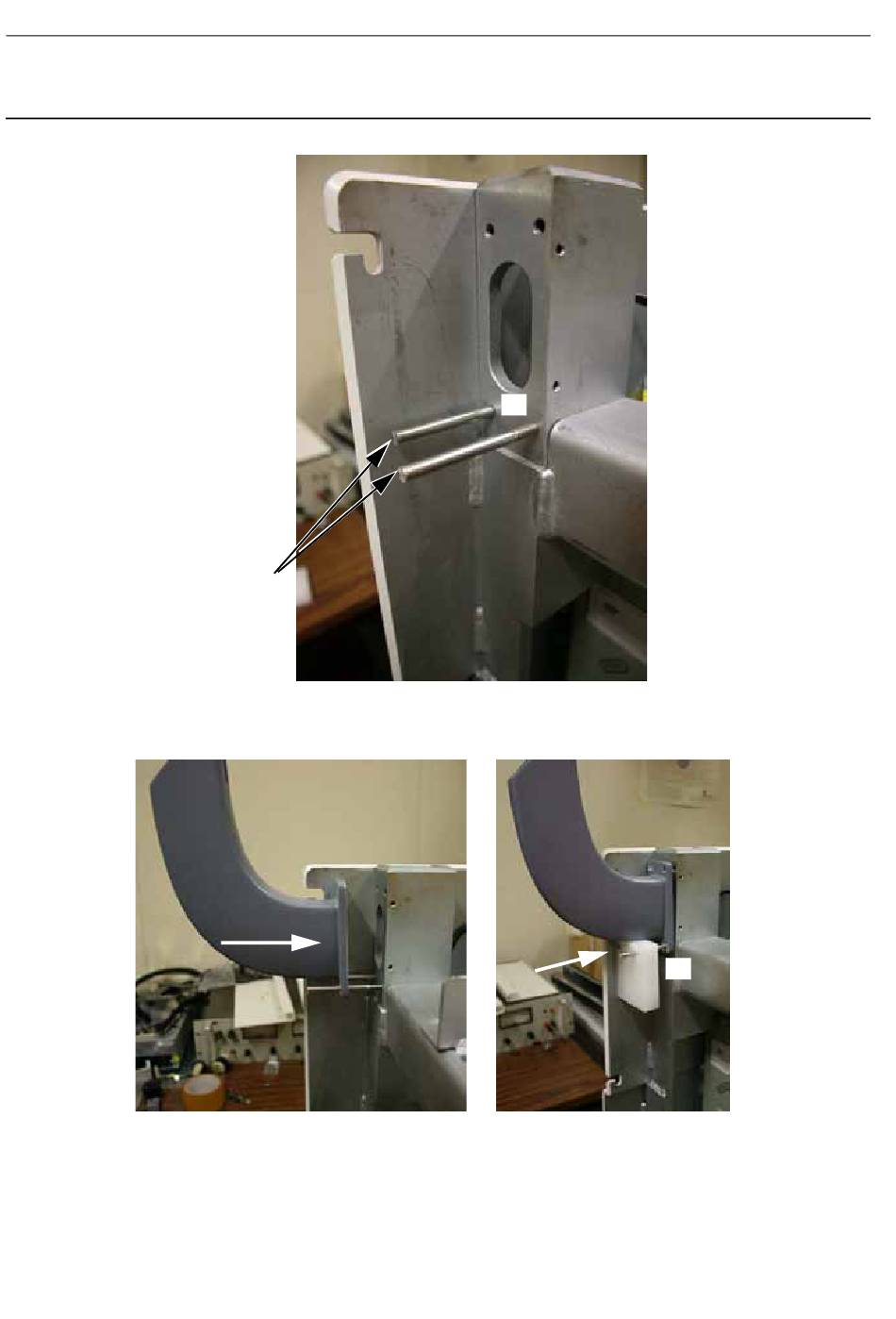

rod will have some of its thread exposed, as illustrated below.
b. Slide lower holes of the rotative arm support onto the two threads. Push the acrylic support block
(16) from the Sisfle Arm Installation Tool on to the two threaded rods so that the rotative arm is
supported.
