Job Card PHY A009 - Opposite Side Rotative Arm Installation

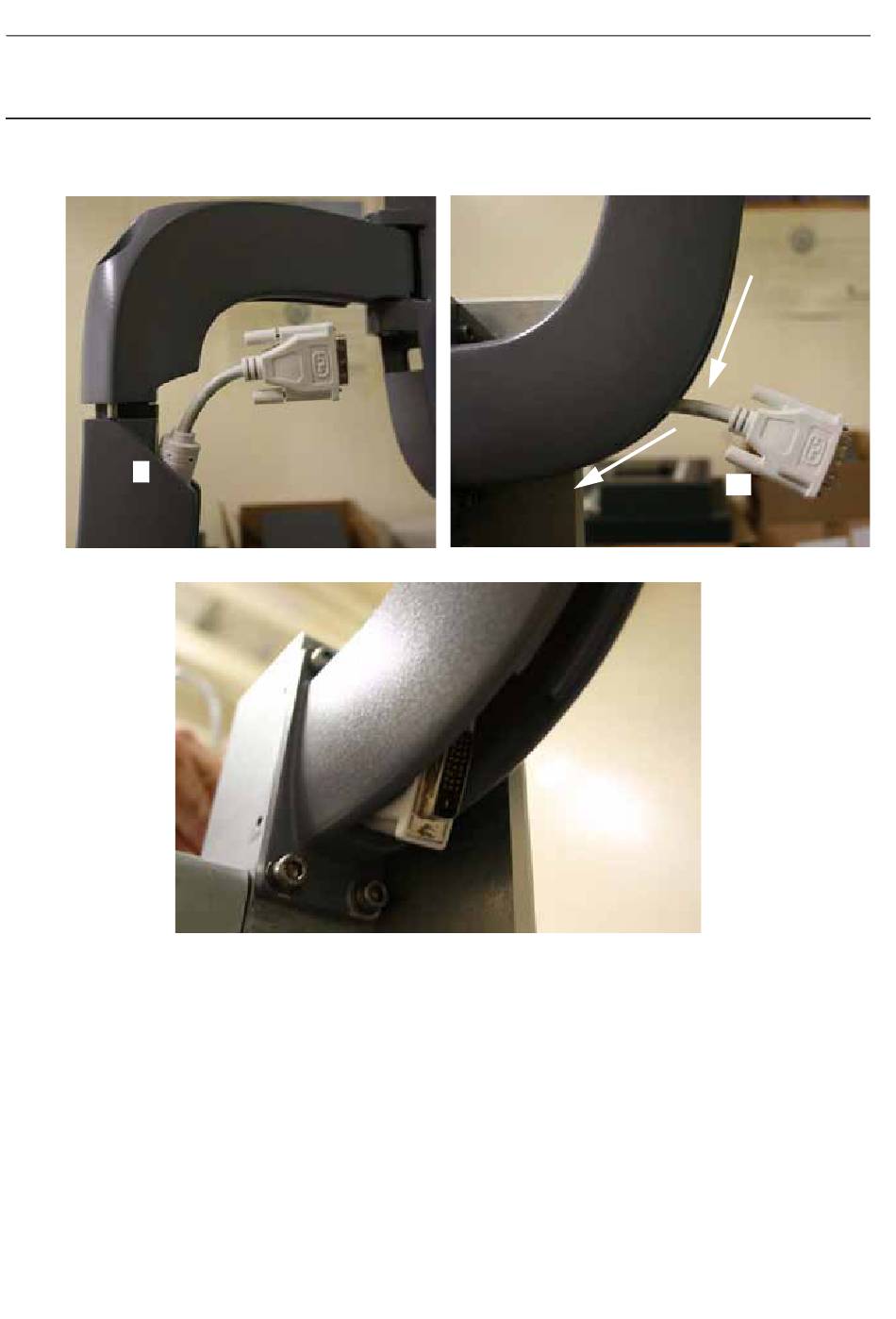

c. Thread the ferrite ring (9) of the DVI video cable inside the rotative arm support. While keeping
the DVI connector outside (10) move the DVI video cable to the bottom of the rotative arm sup-
port.
9
d. Thread the DVI video cable through the opening of the rotative arm support as shown below.
