Job Card PHY A011 - Trackball Option Installation
silicone mask must point outwards.

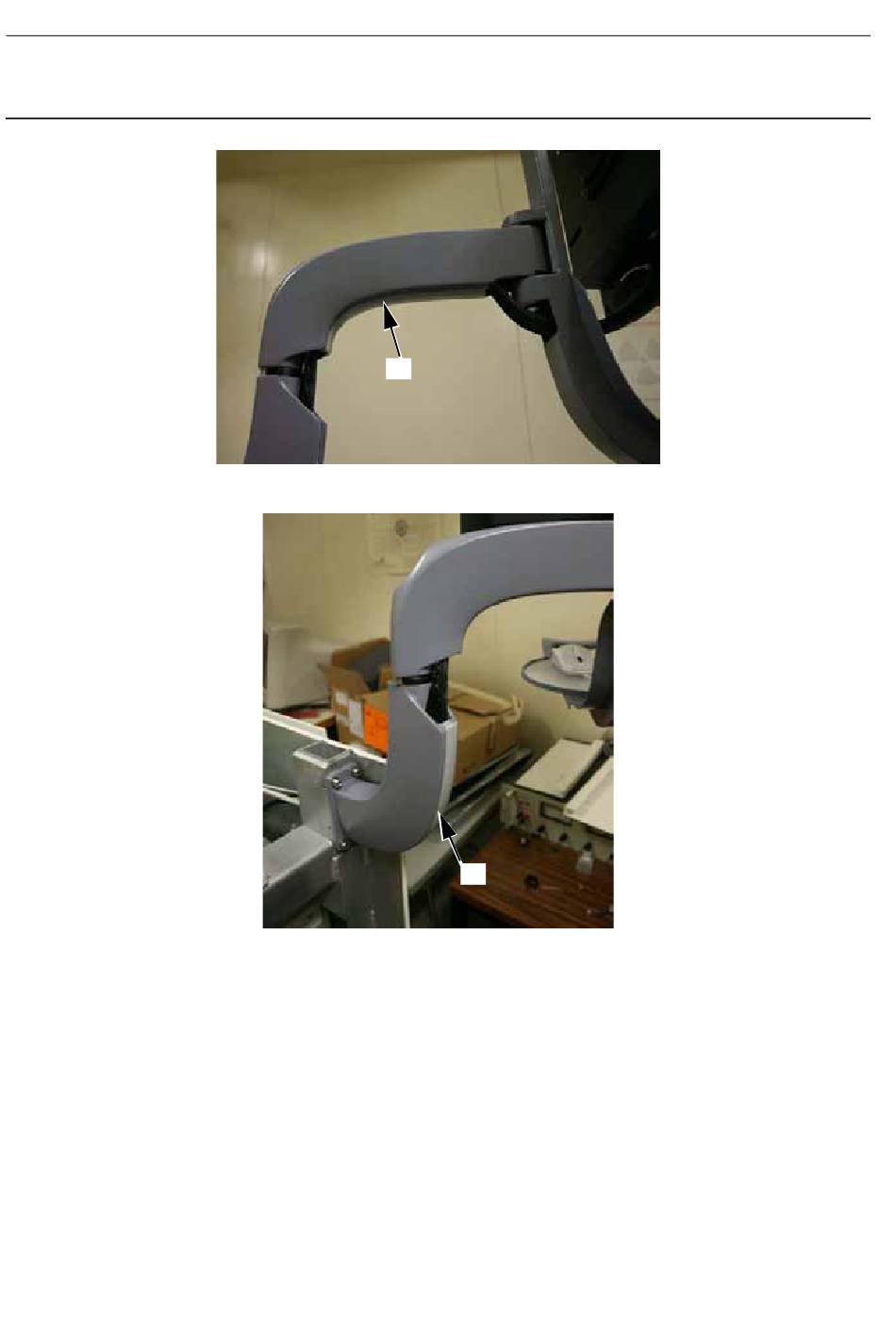

18. Insert the lower silicone mask (longer of the two) (18) into the rotative arm. The rounded edge of the
silicone mask must point outwards.
19. Use the USB extension cable (supplied with the Trackball Kit) to connect the trackball to the ADS
Chapter 6
Service Information and Procedures Class A 2385072-16-8EN
17
18
Page no. 448
Senographe DS
JC-PHY-A-011.fm
