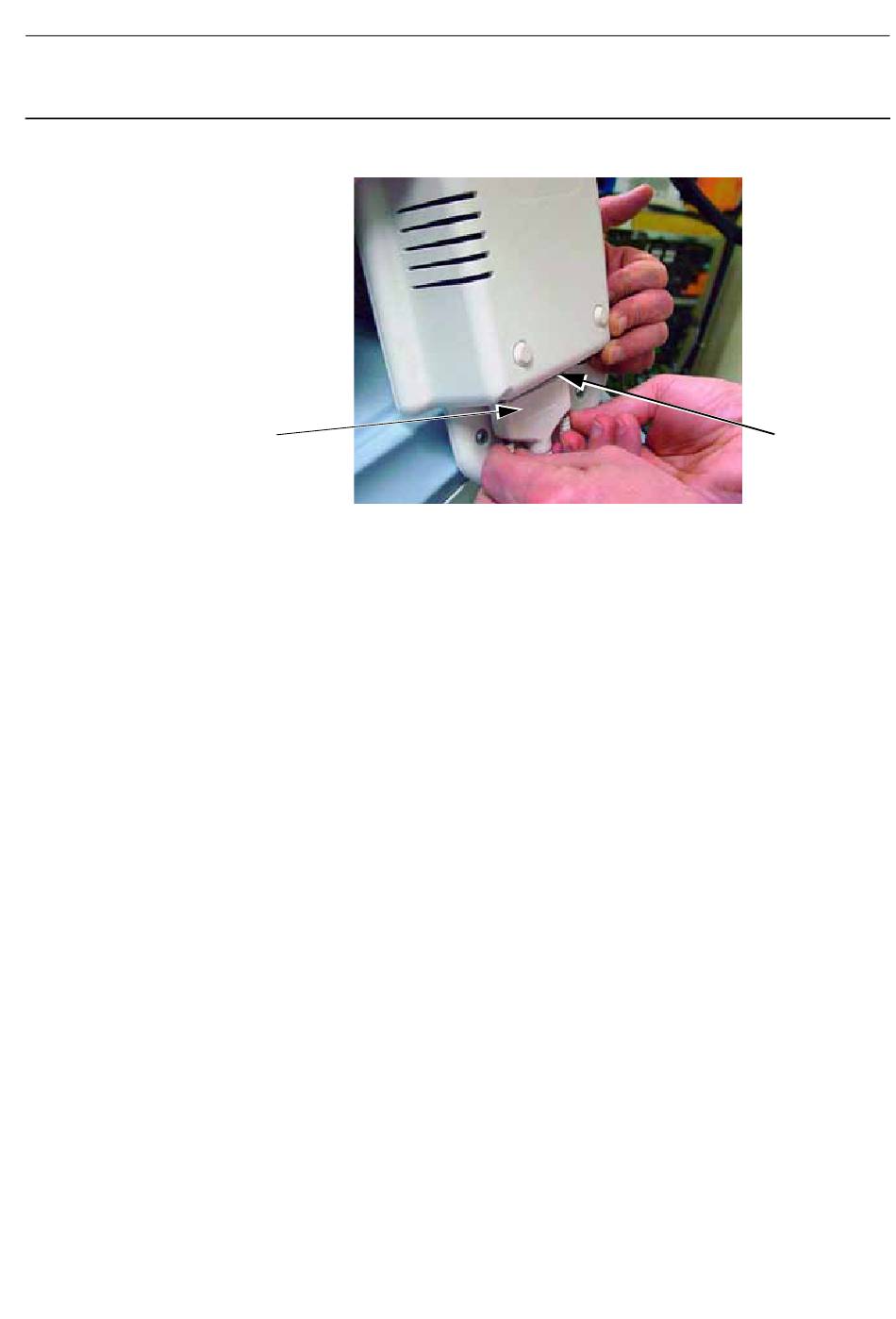

4. Connect the end of the X-ray Console cable (4) to the side of the X-ray Console (5). Put the X-ray
Console in place above the keyboard.
5. Route the excess X-ray Console cable that is between the Control Station and Generator Cabinet
beside the cable conduit from the Gantry. When routing the X-Ray Console cable between the Con-
trol Station and Generator, ensure that:
• it is not kinked and is free from all forms of mechanical stress
• it is mechanically protected from damage that could come from unsafe routing in the room, and
other objects in the room
JC-PHY-A-012.fm
Service Information and Procedures Class A 2385072-16-8EN
4
Page no. 453
Job Card PHY A012 - X-ray Console Cable Routing
