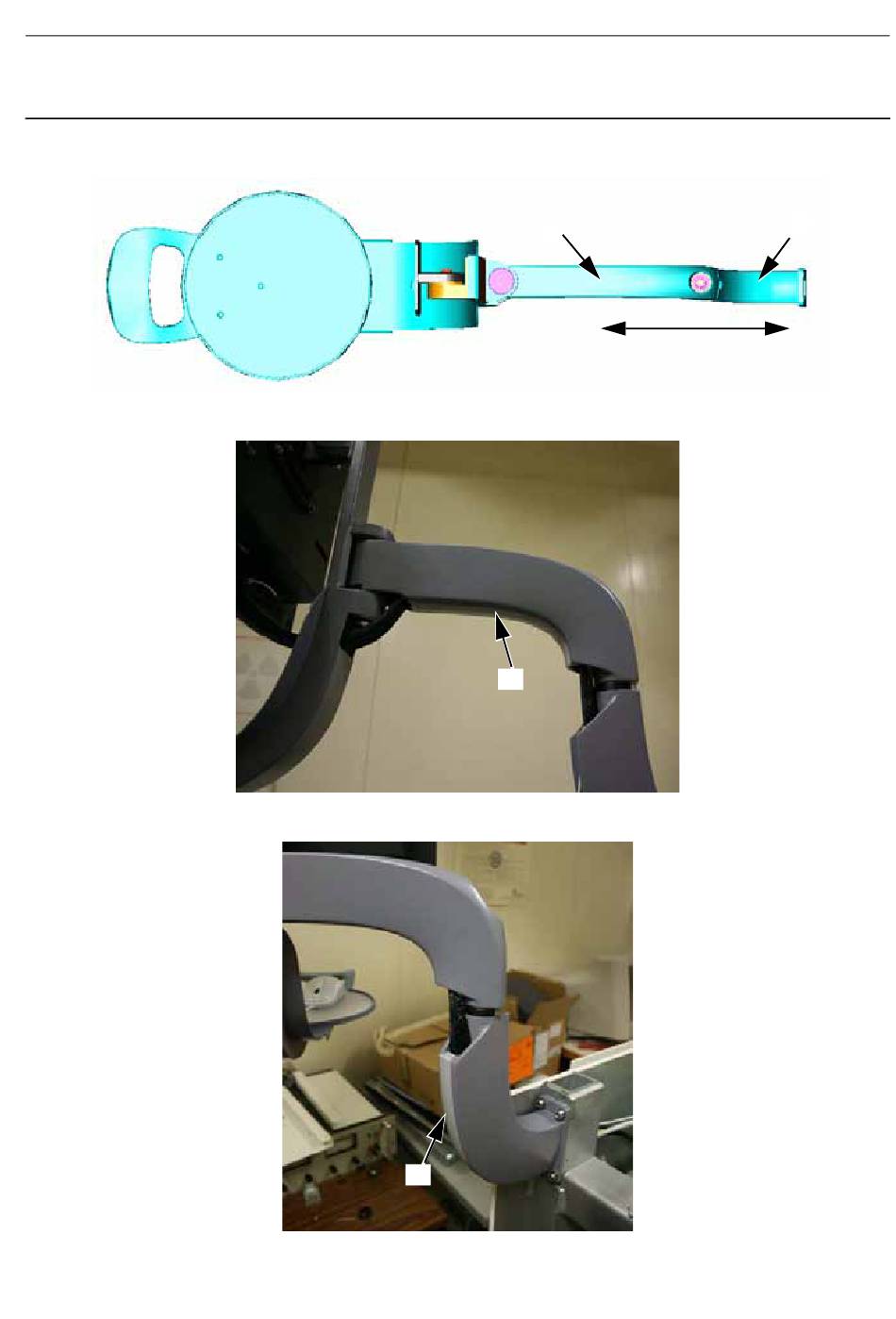

35. Ensure that the rotative arm (37) and rotative arm support (38) are aligned in the same plane (see
below). Carefully put the harness inside the rotative arm and rotative arm support.
36. Insert the upper silicone mask (shorter of the two) (39) into the rotative arm. The rounded edge of the
silicone mask must point outwards.
37. Insert the lower silicone mask (longer of the two) (40) into the rotative arm. The rounded edge of the
silicone mask must point outwards.
JC-PHY-A-009.fm
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A009 - Opposite Side Rotative Arm Installation
37
39
40
Page no. 431
Senographe DS
Aligned in the same plane.
38
