Job Card LOTO A001 - Lock-Out / Tag-Out (LOTO) Procedures
8-6

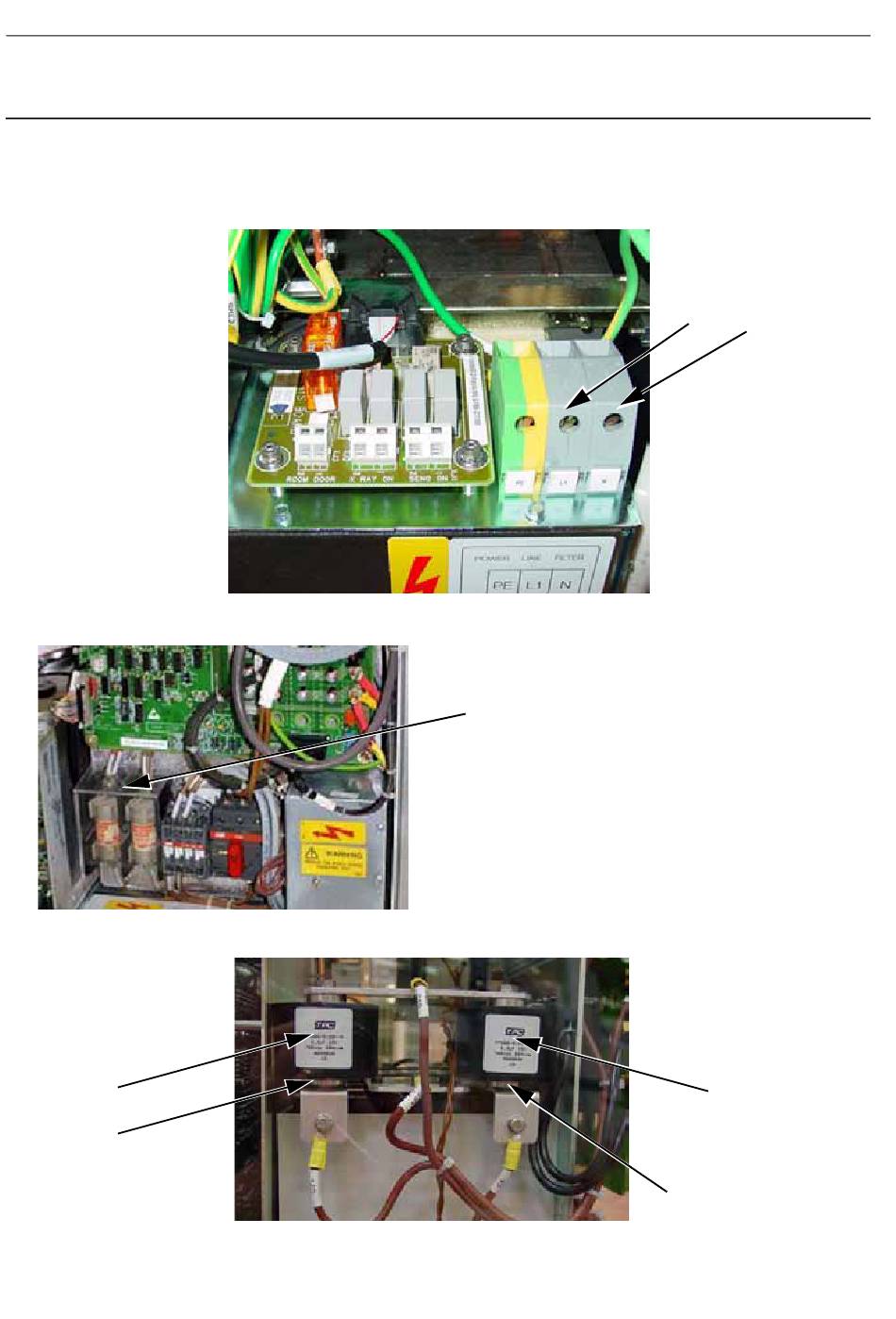

Discharge any stored energy
1. Remove the four Generator side panels (see
Covers on page
513).
2. Use a Digital Multimeter to ensure that the Line Supply Cable voltage between L1 and N is at 0 Volts.
3. Wait at least five minutes to discharge the stored electric energy in the capacitors.
4. Check residual voltage using a Digital Mulitmeter (do not rely on Neon "Tell Tales").
5. Use a voltmeter with a rating of 1000 V DC to check that there is no residual voltage between screws
S1 and S2 on the Generator.
RC1
S1
Service Information and Procedures Class A 2385072-16-8EN
Job Card PHY A042 - Remove/Reinstall Generator
Check for zero volts on both fuses
Page no. 384
Senographe DS
L1
N
RC2
S2
JC-LOTO-A-001.fm
