Product manual - IRB 5720
3HAC079195-001 Revision: A

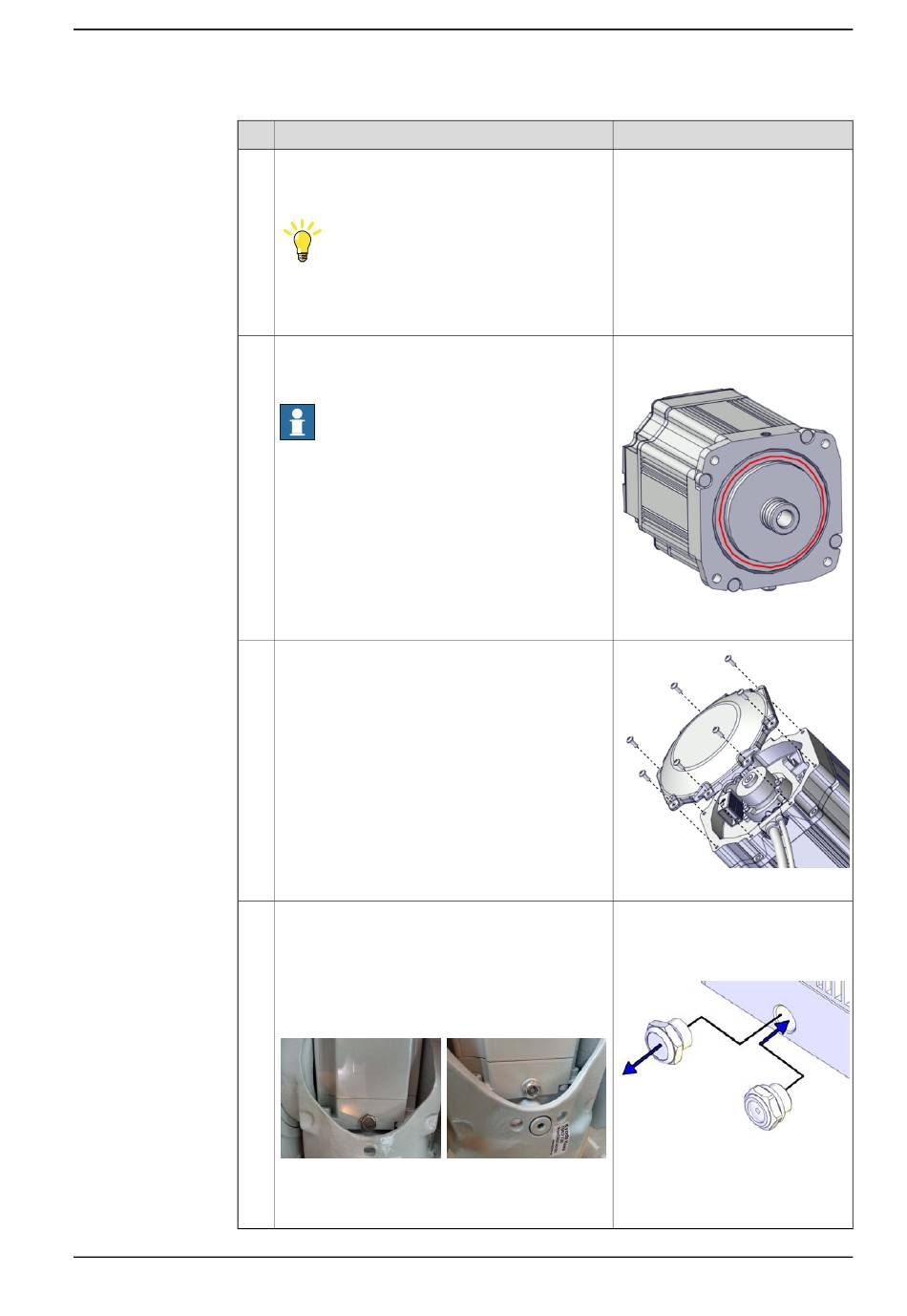

Action
Remove any old paint or flange sealant residues
or other contamination from the contact surfaces
on both the motor and the mating parts.
Tip
Remove flange sealant residues with Loctite 7200.
Then use Loctite 7063 for cleaning the mating
surface.
Apply a continuous bead of flange sealant, 1-2
mm wide, inside of the groove on the motor con-
tact surface.
Note
The purpose of the groove is to catch excess
sealant. No o-ring is used.
Remove the cover, if fitted to the new spare part
motor.
Protection type Foundry Plus
Valid for axis-1, axis-2, axis-3 and axis-4.
If the motor is a new spare part, the evacuation
hole protection filter must be replaced with a
transparent plug/sight glass (enclosed with the
spare part delivery). Remove the protection filter
and install the transparent plug/sight glass.
xx1800000101 xx1800000102
Protection filter (Stand- Transparent plug
ard). (Foundry Plus).
© Copyright 2022 ABB. All rights reserved.
5 Repair
5.8.1 Replacing the axis-1 motor
Continued
Note
Flange sealant: 3HAC041807-007
(Loctite 5800)
xx2100000520
xx2100000596
Tightening torque, transparent
plug: 20 Nm
Tightening torque, protection filter:
20 Nm
xx1600000576
Continues on next page
