GE Healthcare
Revision 1
Job Card CAL A031 - Lift Calibration
1
SUPPLIES
None
2
TOOLS
Standard Tool Box
3
REQUIRED EFFORT
Personnel: 1 Field Engineer
Time: 15 minutes
4
SAFETY PRECAUTION
No specific safety precautions are applicable.
5
PREREQUISITES
None
6
PROCEDURE
6-1
Principle

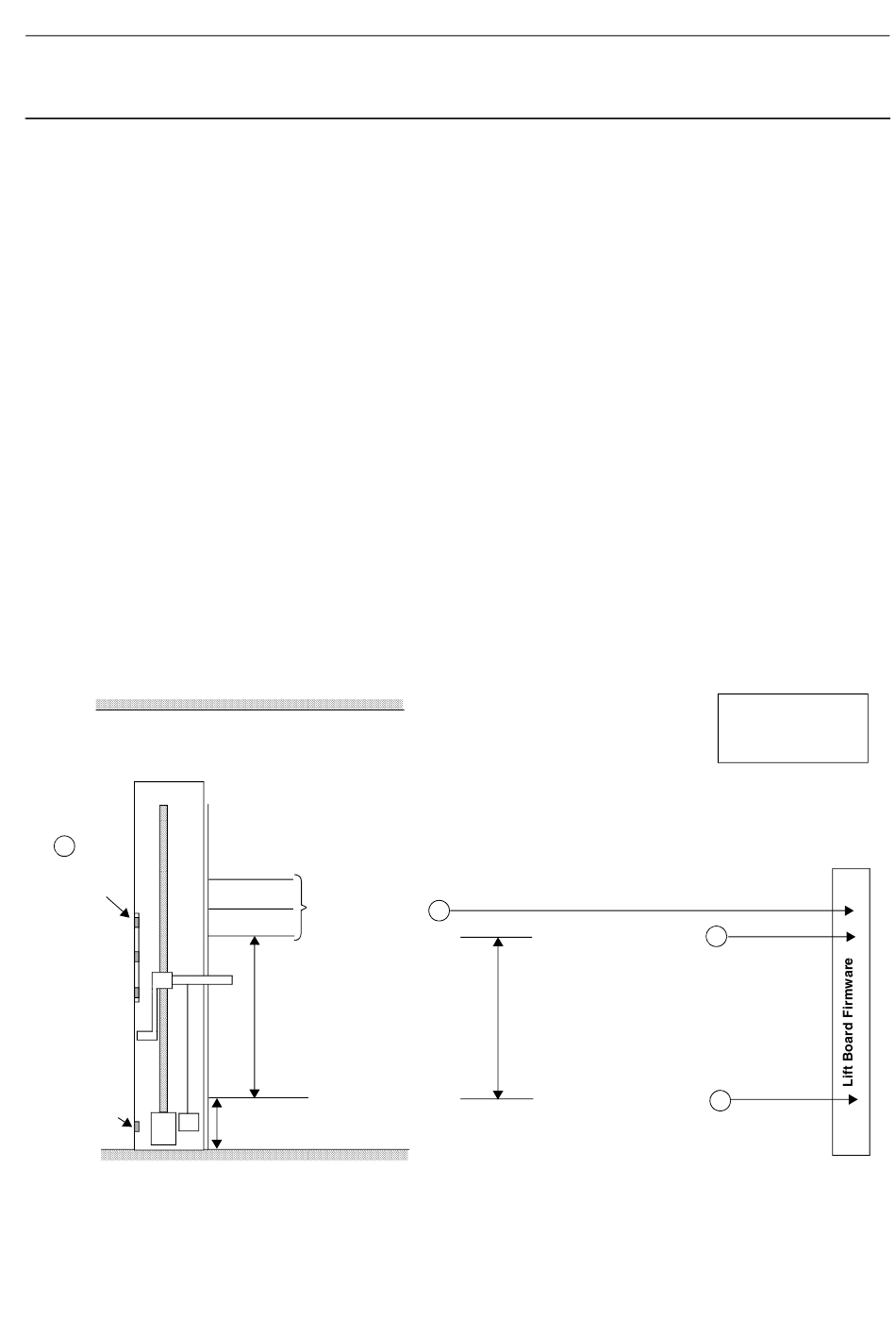

The illustration below highlights the important principles behind calibrating the lift.
Ceiling
1
Upper optical
fork position
Top
Middle
Bottom
Lower optical
fork position
LE LP
(fixed)
Floor
JC-CAL-A-031.fm
Service Information and Procedures Class A 2385072-16-8EN
Upper lift travel limit
Derived from the lift
travel limit plus the
lower lift travel limit
850 mm
750 mm
Lift travel limit
650 mm
Set in ADS software
and must correspond
to upper optical fork
position
0 mm
Lower lift travel limit
670 ±2 mm
Measured then set
4
Lift Potentiometer
Upper Reference Voltage
650 mm — this automatic stop
distance during the calibration
phase is determined by the Lift
Encoder which accurately trans-
lates lift screw turns to height
travelled.
Lift Potentiometer
Lower Reference Voltage
Page no. 1687
Senographe DS
Job Card CAL A031 - Lift Calibration
Key
LE : Lift Encoder
LP : Lift Potentiometer
3
Set with FOV
size button
2
Set with FOV
size button
Chapter 9
