INTERNAL SPACE
RESERVED
INTERNAL REGISTERS
(UREGS)
RESERVED
INTERNAL MEMORY
BLOCK 2
RESERVED
INTERNAL MEMORY
BLOCK 1
RESERVED
INTERNAL MEMORY
BLOCK 0

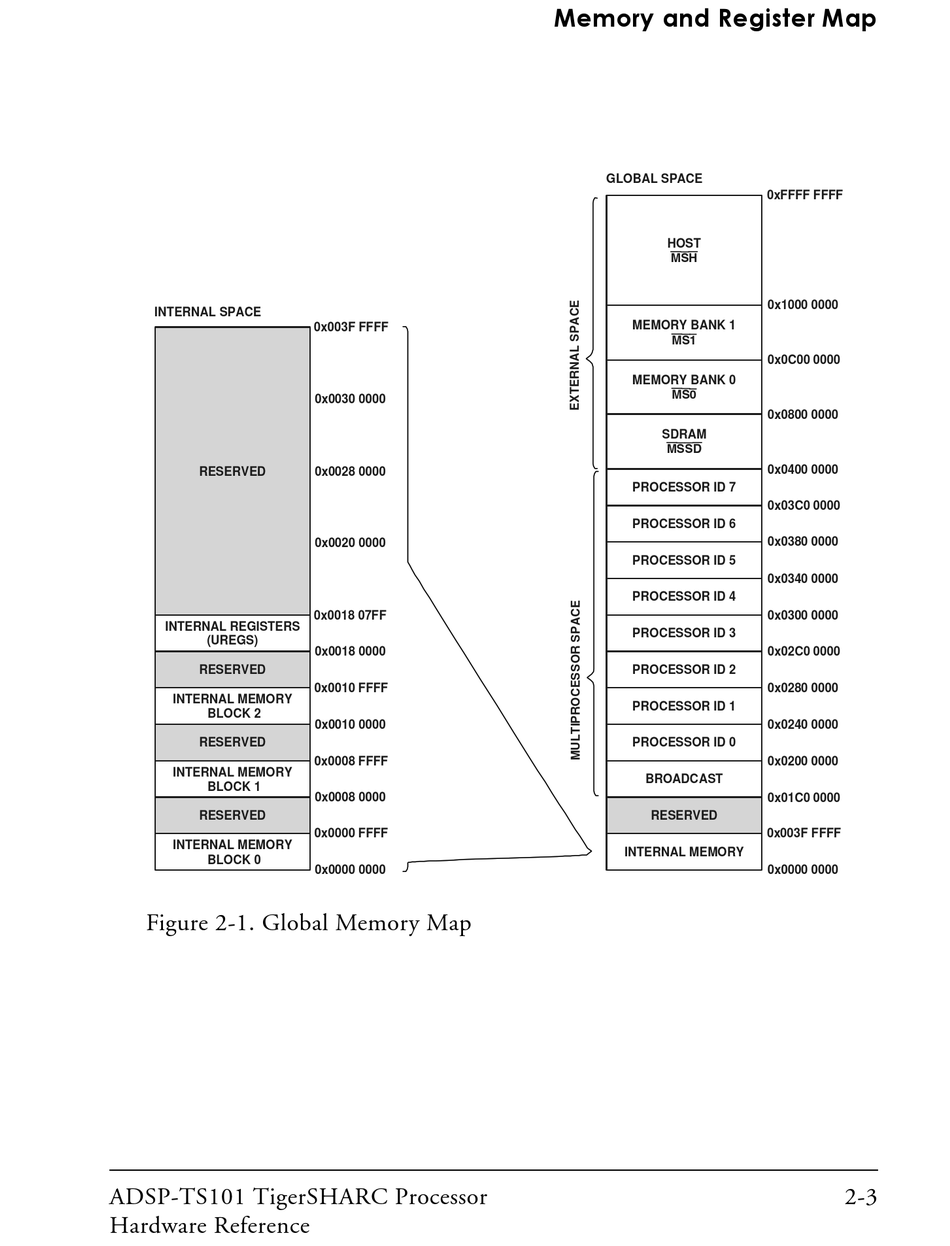

Figure 2-1. Global Memory Map
ADSP-TS101 TigerSHARC Processor
Hardware Reference
0x003F FFFF
0x0030 0000
0x0028 0000
0x0020 0000
0x0018 07FF
0x0018 0000
0x0010 FFFF
0x0010 0000
0x0008 FFFF
0x0008 0000
0x0000 FFFF
0x0000 0000
Memory and Register Map
GLOBAL SPACE
HOST
MSH
MEMORY BANK 1
MS1
MEMORY BANK 0
MS0
SDRAM
MSSD
PROCESSOR ID 7
PROCESSOR ID 6
PROCESSOR ID 5
PROCESSOR ID 4
PROCESSOR ID 3
PROCESSOR ID 2
PROCESSOR ID 1
PROCESSOR ID 0
BROADCAST
RESERVED
INTERNAL MEMORY
0xFFFF FFFF
0x1000 0000
0x0C00 0000
0x0800 0000
0x0400 0000
0x03C0 0000
0x0380 0000
0x0340 0000
0x0300 0000
0x02C0 0000
0x0280 0000
0x0240 0000
0x0200 0000
0x01C0 0000
0x003F FFFF
0x0000 0000
2-3
