Processor Microarchitecture
the transaction is completed at this point. If it is a read transaction, the
data read on the external transaction is strobed in the IFIFO and is written
later to its target (defined by the original internal transaction).
ADDR
DATA
INTERNAL
BUS
EXTERNAL WRITE - TIGERSHARC BUS MASTER
INTERNAL
BUS
ADDR
DATA
INTERNAL WRITE - TIGERSHARC BUS SLAVE
DATA
INTERNAL
BUS
DMA WRITE - TIGERSHARC BUS MASTER

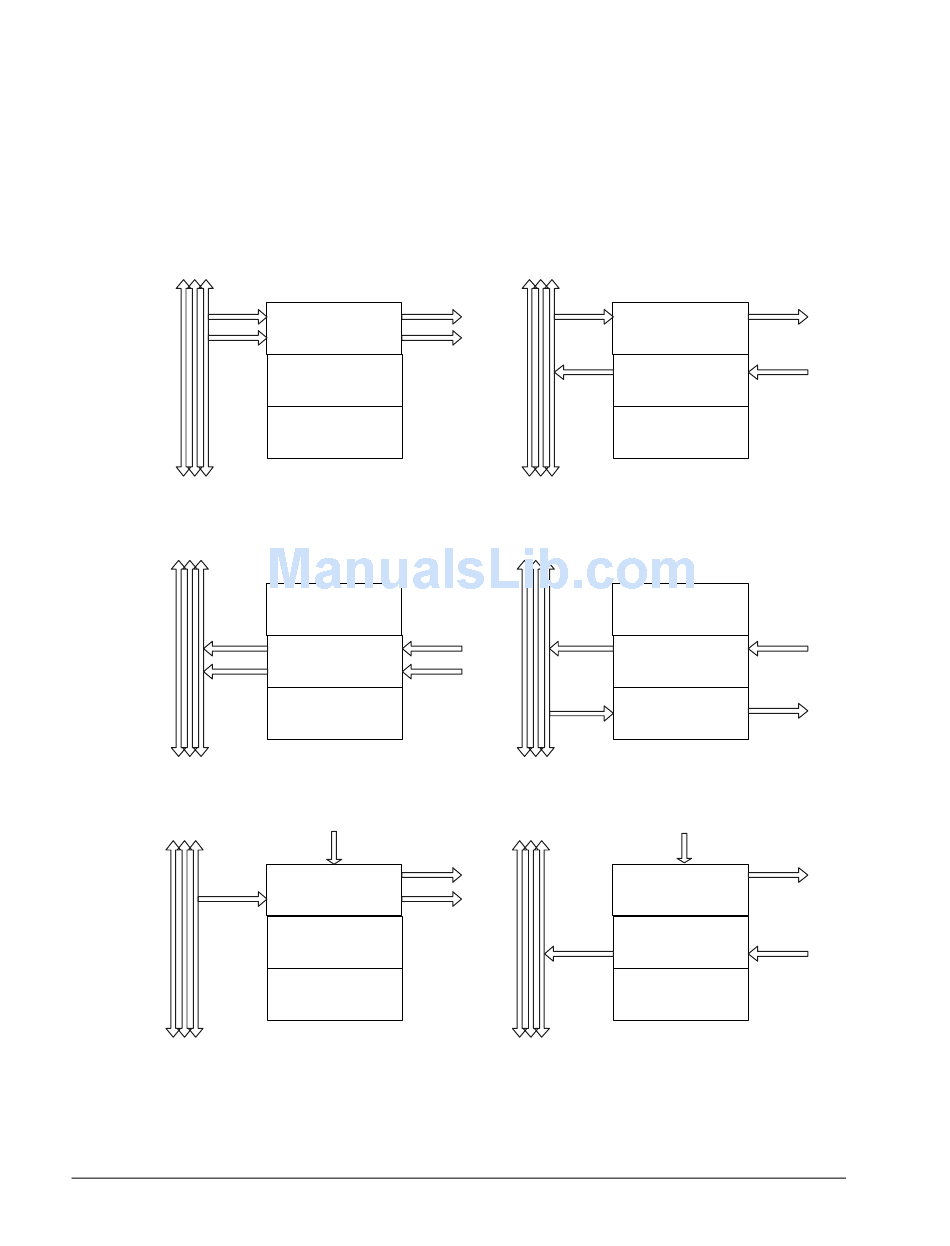

Figure 5-2. External Port Architecture
