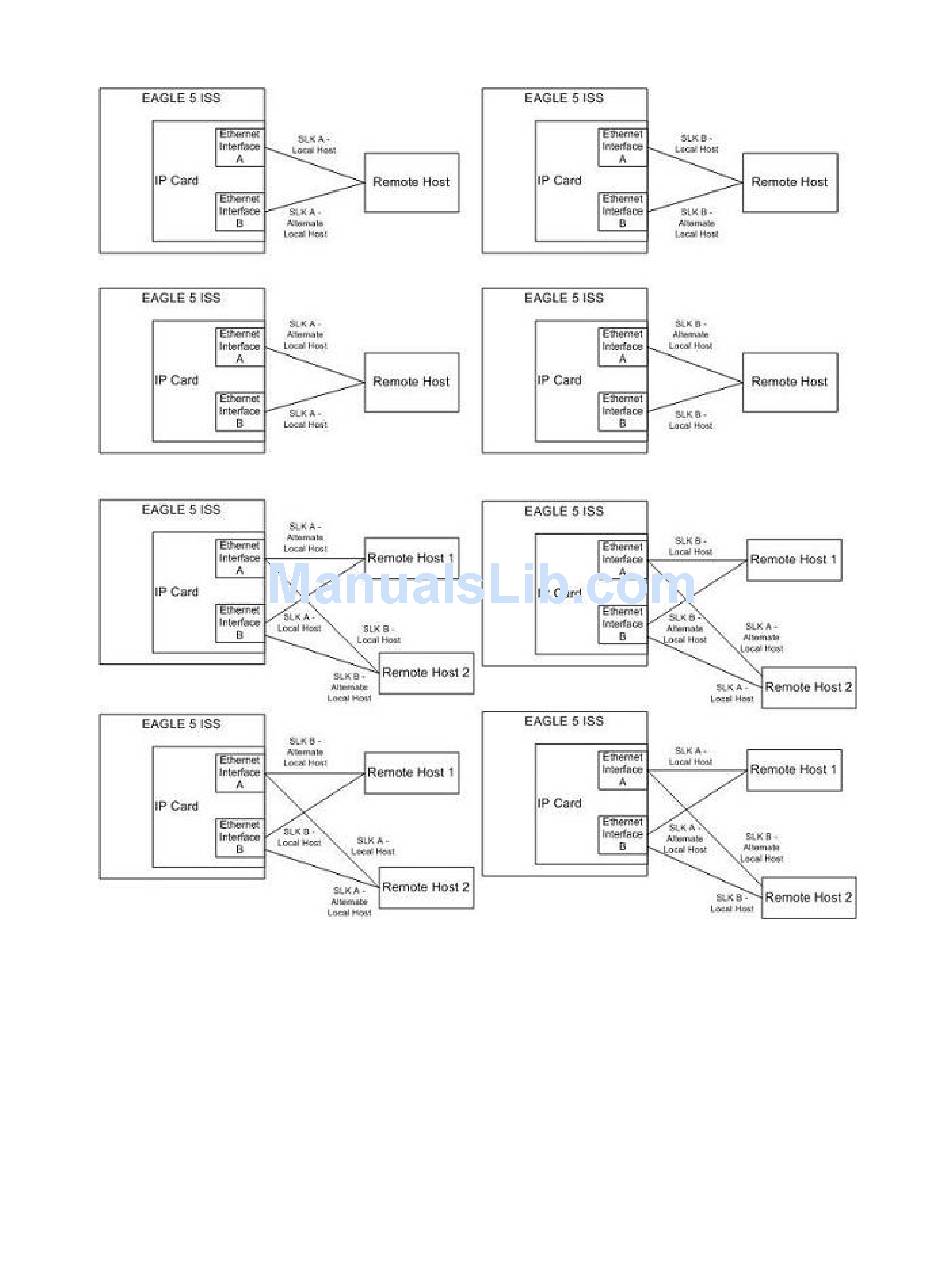

Figure 8: Multi-Homed Associations on EDCMs or E5-ENET Cards running the IPLIMx Applications

Multi-Homed Associations on EDCMs or E5-ENET Cards Running the IPGWx Applications
A multi-homed association on an IPGWx card uses both Ethernet interfaces to reach the remote host,
but only one signaling link, signaling link A on the IPGWx card. The local and alternate local hosts
are assigned to each Ethernet interface on the IP card. The IPGWx cards can have up to 50 connections
for each IPGWx card. The IPGWx card can contain both uni-homed and multi-homed IP connections,
as long as the total number of connections does not exceed 50.
Figure 9: Multi-Homed Associations on EDCMs or E5-ENET Cards running the IPGWx Applications
the way a multi-homed IP connection can be established on an IPGWx card. The remote hosts can be
multi-homed, but only one remote host can be specified for each multi-homed association in the
910-6278-001 Revision A, January 2012
IP7 Secure Gateway Overview
shows
