5 Repair

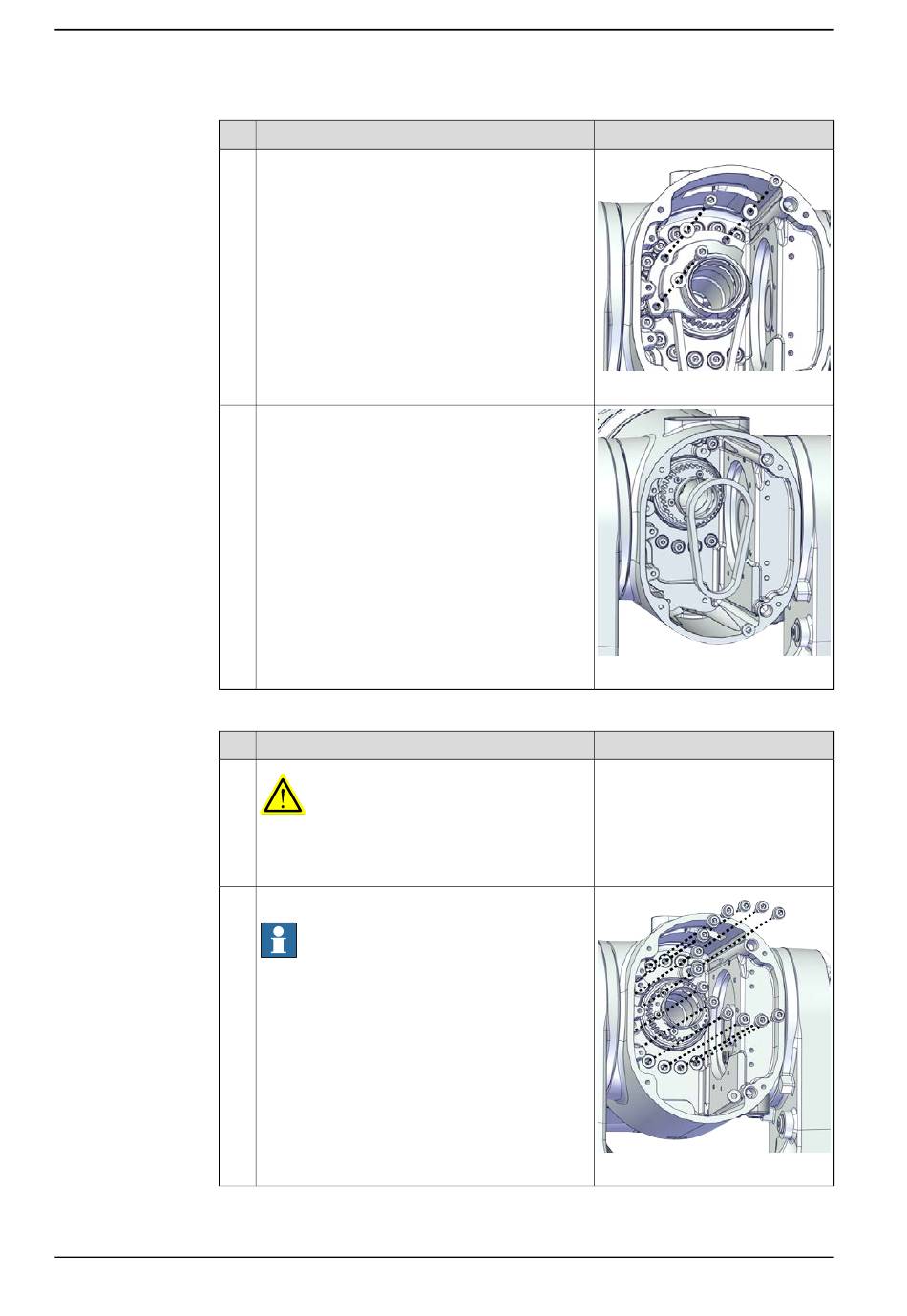

5.8.4 Replacing the axis-4 gearbox
Continued
2
3
Separating the housing
1
2
Continues on next page
544
Action
Remove the pulley cover.
Remove the timing belt from its groove on the
gearbox.
Action
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
Remove the screws.
Note
Some robots may be fitted with separate screws
and washers. During replacement, always use the
same screws (and washers) that are fitted on the
robot at delivery. Contact ABB for more informa-
tion.
© Copyright 20192020 ABB. All rights reserved.
Note
xx1800003097
xx1800003098
Note
xx1900002191
