5 Repair
5.4.2 Replacing the swing
Continued
2
3
4
5
Continues on next page
256

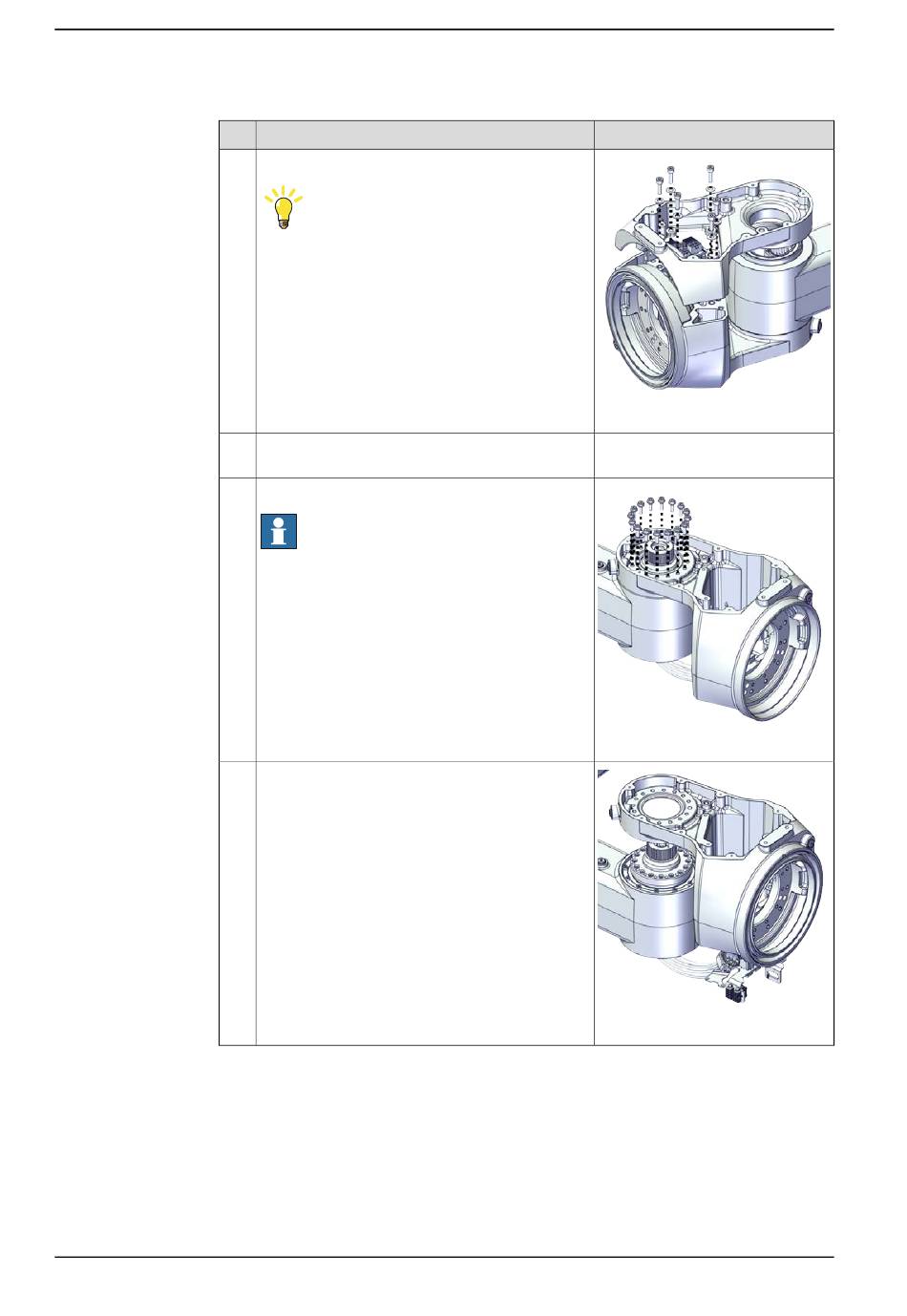

Action
Remove the swing support.
Tip
If the swing support is hard to loosen from the
lower arm, use a plastic hammer to knock on the
swing support lightly.
Route the upper cable package out of the swing
support.
Remove the screws.
Note
Some robots may be fitted with separate screws
and washers. During replacement, always use the
same screws (and washers) that are fitted on the
robot at delivery. Contact ABB for more informa-
tion.
Separate the swing from the lower arm.
© Copyright 20192020 ABB. All rights reserved.
Note
xx1800003076
xx1900002192
xx1800003078
