ABB Robotics IRB 1100 Product Manual page 160

5 Repair
5.3.2 Replacing the lower cable package
Continued
2
3
Disconnecting the SMB cabling
1
Continues on next page
160
Action

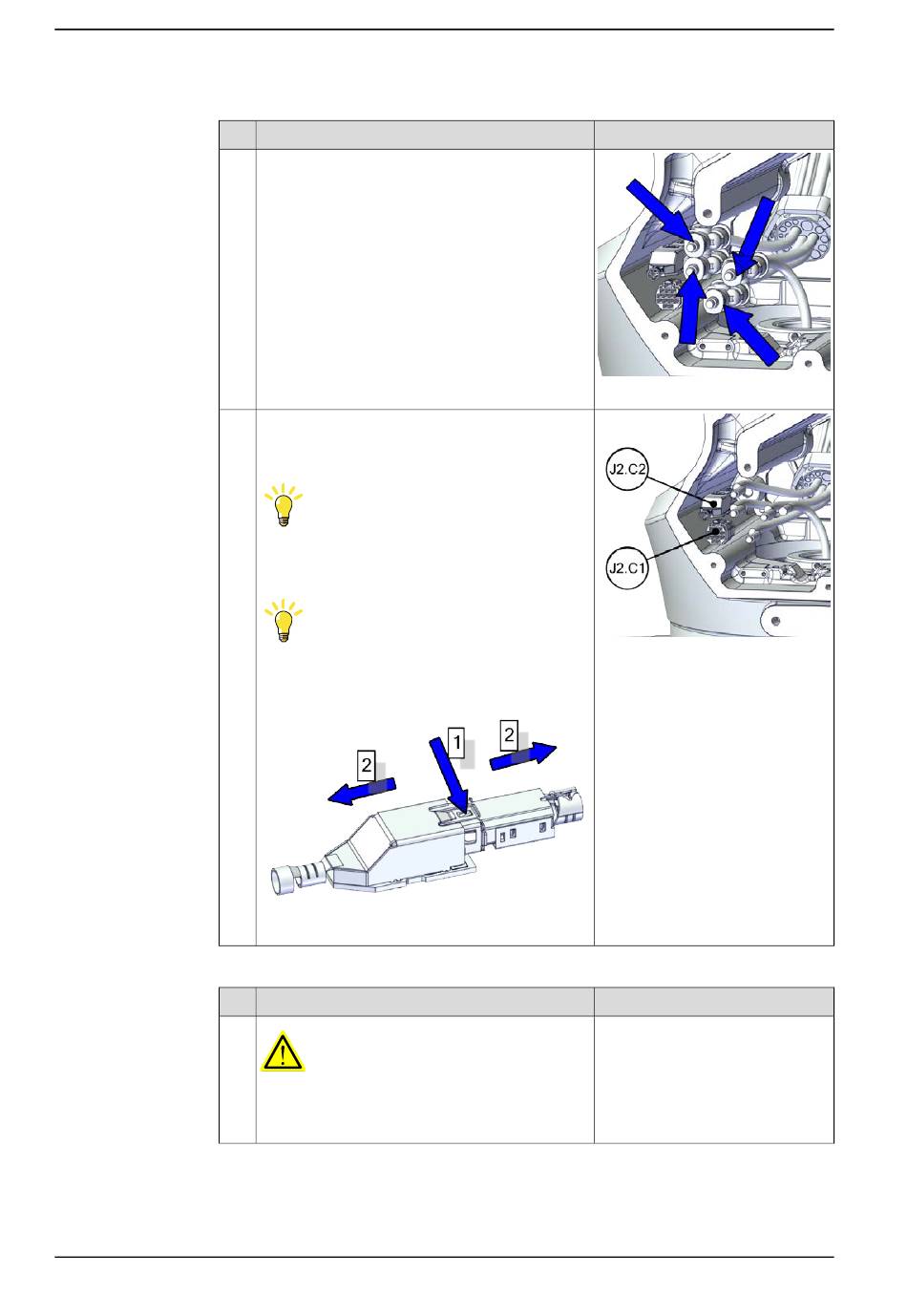

Disconnect the air hoses from the Y-shaped con-
nectors.
Disconnect the connectors.
• J2.C1
• J2.C2
Tip
Take photos of the connector and cable position
before disconnecting them, to have as a reference
when reconnecting.
Tip
The connector clip has to be pressed (1) and
pushed forward (2) to separate the J2.C2 (for
Ethernet cabling).
xx1800002943
Action
DANGER
Make sure that all supplies for electrical power,
hydraulic pressure, and air pressure are turned
off.
© Copyright 20192020 ABB. All rights reserved.
Note
xx1800002500
xx1800002501
Note
Product manual - IRB 1100
3HAC064992-001 Revision: C
