Detaching Walls

1 In the drawing area, select the walls to detach.
2 On the Options Bar, for Top/Base, click Detach.
3 Select the model components to detach from the walls.
4 If you want to detach the selected walls from all components at once, or if you are not sure

Wall Joins

When you create walls, Revit Architecture automatically joins them at their intersections. You can edit wall
joins when necessary. For best results, edit wall joins in a plan view.

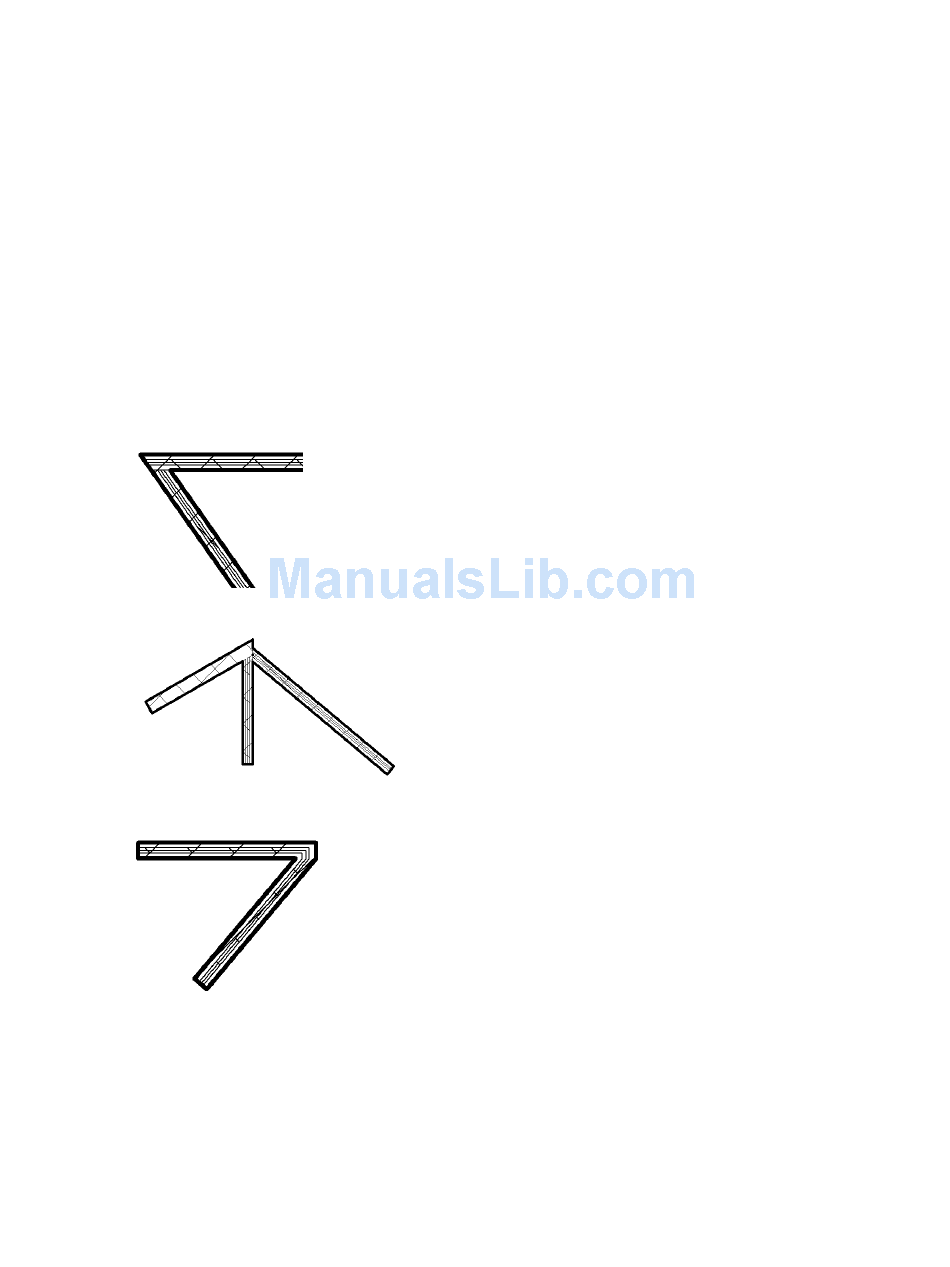

The following are examples of valid wall joins that you can edit:
Walls at acute angles
Several walls joined together
Walls squared off at angle
580 | Chapter 11 Working with Architectural Components
which components are attached to the walls, on the Options Bar, click Detach All.
The walls detach from any component to which they were previously attached.
