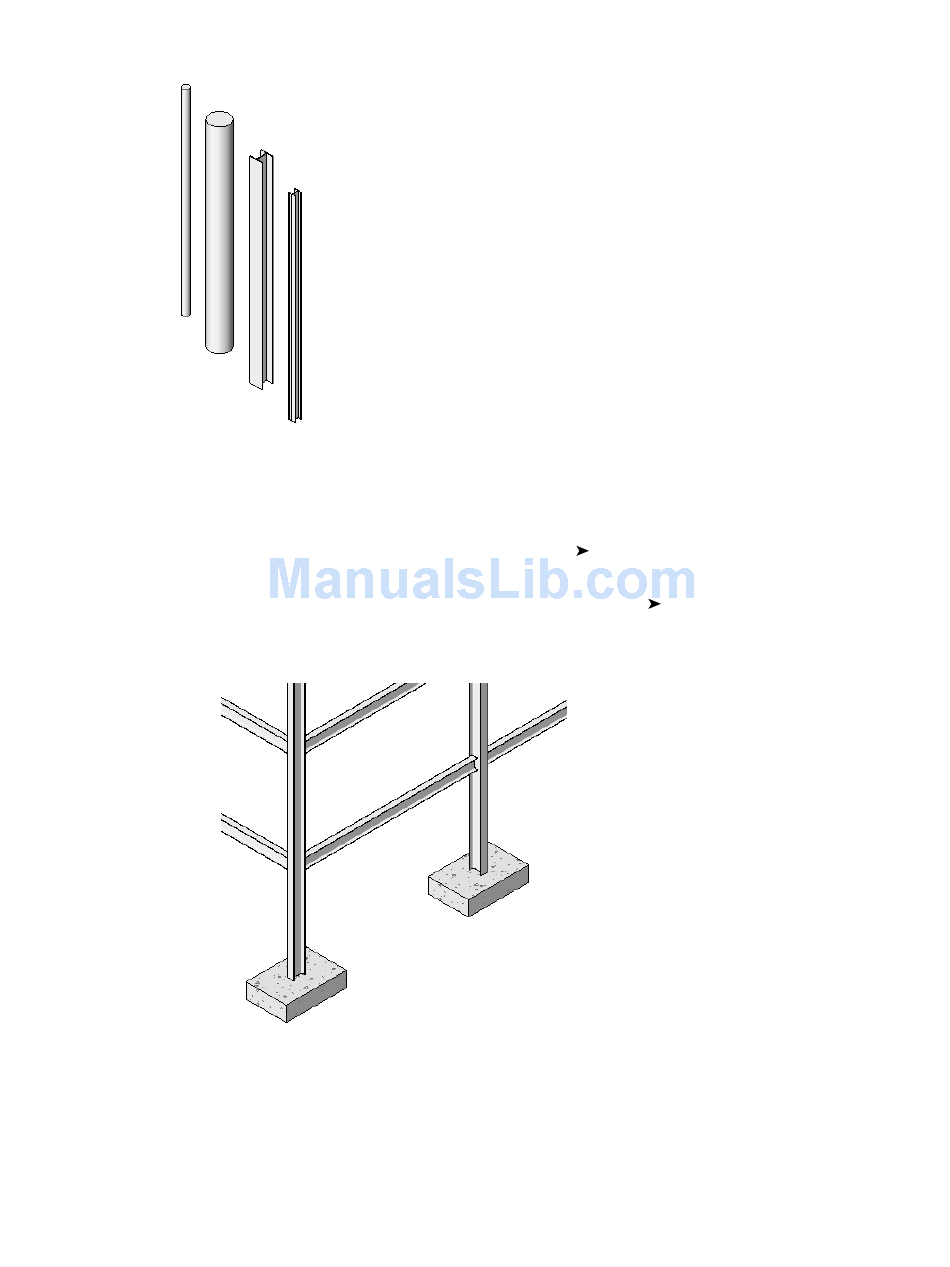

HP shaped and pipe piles

Adding Isolated Foundations

You can load isolated foundations. Use the Load from Library
are in the Structural/Foundations folder of the family library.
1 On the Structural tab of the Design Bar, click Foundation
2 Place the isolated foundation in either a plan or 3D view.
Rectangular isolated foundation
The Bottom Elevation of structural foundations (footings) is reported in a read-only instance
parameter called Elevation at Bottom. You can then display this value in a view by tagging the
foundation with the Structural Foundation Tag with Elevation tag. It is available from the family
library, under Structural/Annotations. For more information, see
Load Family command. Isolated foundations
Isolated
Applying a Tag
Adding Isolated Foundations | 861
on page 1066.
