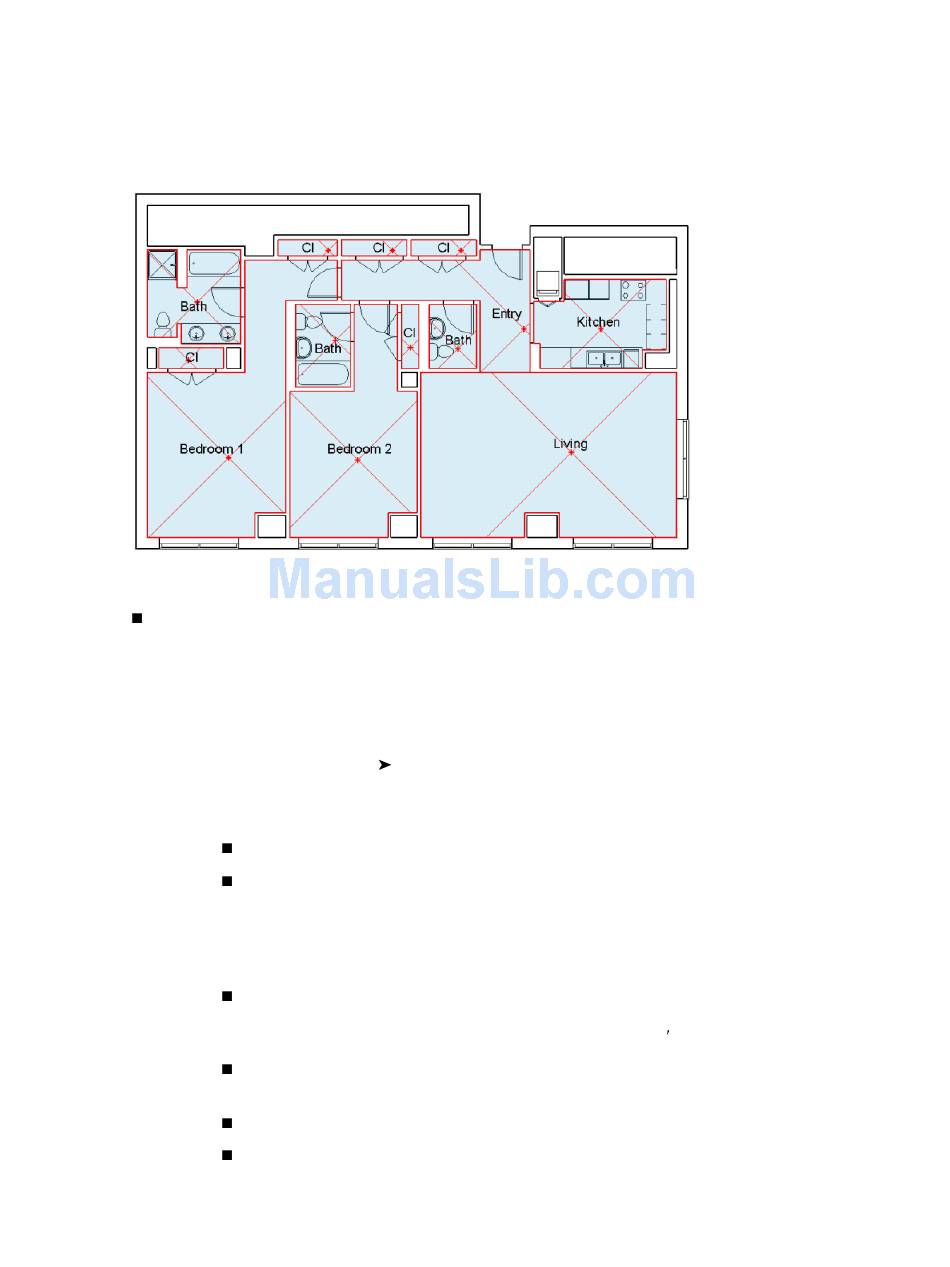

Rooms

You can create rooms using the Room tool or by placing them from a room schedule. To add rooms to a
schedule, click New on the Options Bar. This is helpful when creating an early design, before defining walls
or other bounding elements in a project. Then you can place the predefined rooms in the project.
You can create rooms only in plan views and schedule views.
Related topics
Rooms and Areas Overview

Creating a Room

1 Open a plan view.
2 Click Drafting menu
3 On the Options Bar, do the following:
on page 911
Room, or on the Room and Area tab of the Design Bar, click Room.
(If the tab is not displayed, right-click the Design Bar, and select the tab name.)
To display a room tag with the room, click Tag on placement.
For Upper Limit, specify the level from which to measure the upper boundary of the room.
See Defining the Upper Boundary of a Room
For example, if you are adding a room to a Level 1 floor plan, and you want the room to
extend from Level 1 to Level 2 or some point above Level 2, specify an Upper Limit of Level
2.
For Offset, measuring from the Upper Limit level, enter the distance at which the upper
boundary of the room occurs. Enter a positive number to go above the Upper Limit level, or
enter a negative number to go below it. The default is 10 (4000 mm).
Indicate the desired orientation of the room tag.
See Tag Orientation on page 922.
To include a leader line with the room tag, select Leader.
For Room, select New to create a new room, or select an existing room from the list.
on page 930.
Rooms | 913
