NOTE If you place the cursor over the slab, you can press TAB to pick specific sub-elements. Standard selection
methods also apply. See
Dragging a blue arrow moves the point vertically.
Dragging a red square (shape handle) moves the point horizontally.
4 Click the text control to enter a precise height value for the selected point or edge.
The value of the height represents the offset from the original top face of the slab.
NOTE For an edge this means that the center is moved to the specified height, but the relative heights of
the 2 ends are maintained.

Using the Draw Points Tool

You can use the Draw Points tool to add singular points to the element geometry. The points are used by
the shape modification tools to change the element geometry.
1 Select the slab, roof, or floor you want to modify.
2 On the Options Bar, click
NOTE The Elevation edit box displays on the Options Bar with a Relative check box next to it. If you select
Relative, new points will be added at the specified value, relative to the surface on which they are added. So,
with the default value of 0 the points will lie in the surface that they were created on. If you clear the check
box, the value in the edit box represents the project elevation, and points will be added at this elevation.

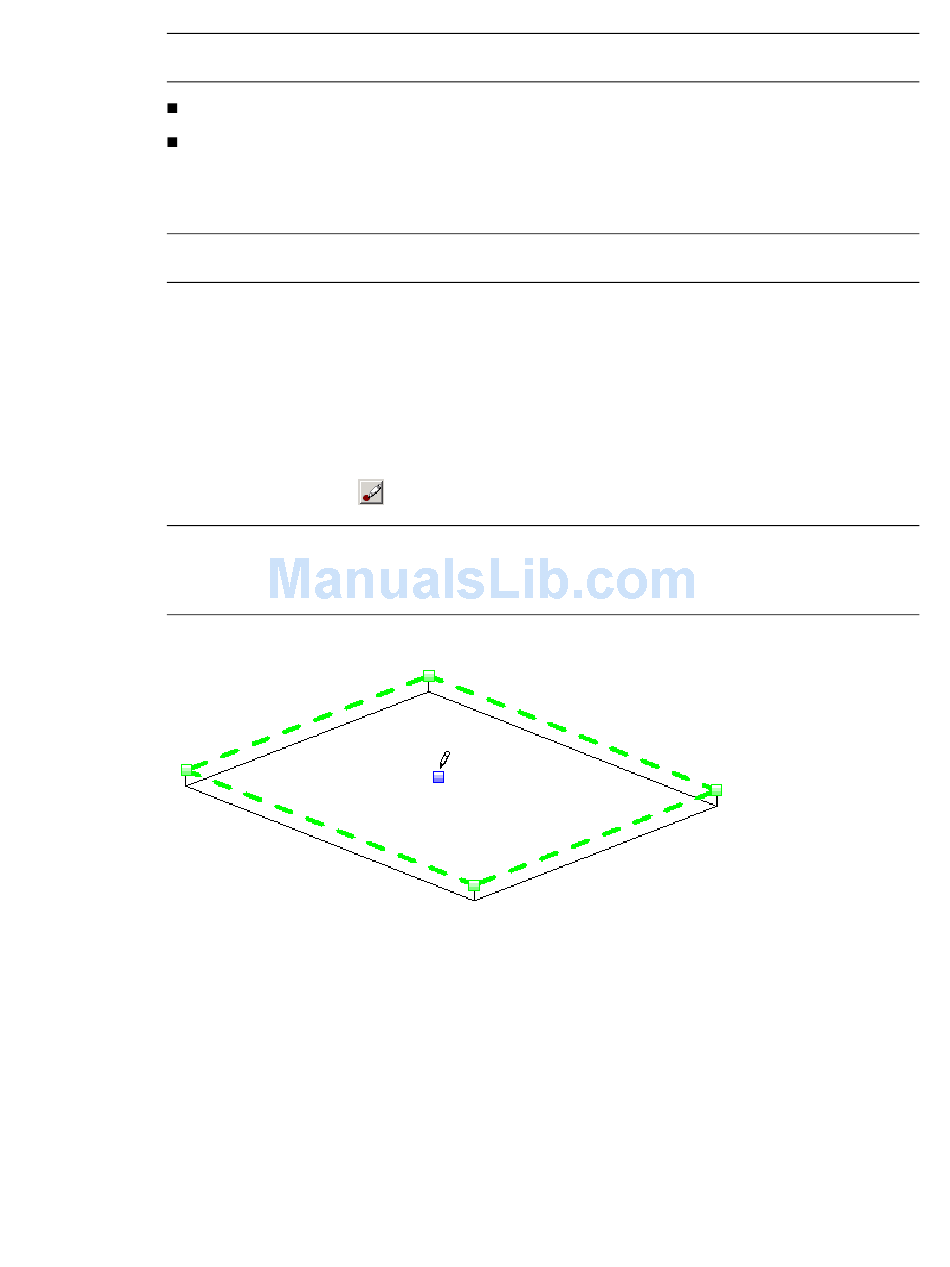

3 Click on the face or edges of the slab, roof, or floor to add points that define a slope.

Using the Draw Split Lines Tool

You can use the Draw Split Lines tool to add linear edges and to split the existing face of a slab into smaller
sub-regions.
1 Select the slab you want to modify.
884 | Chapter 12 Working with Structural Components
Selecting Multiple Elements
(Draw Points tool).
on page 270.
