The Option Bar provides the beam system parameters for both creation methods, such as beam type,
justification, and layout requirements. For more information, see
on page 817.
Beam system parameters adapt to changes in the design. If a column is relocated, the beam system parameters
adapt to the changes automatically.

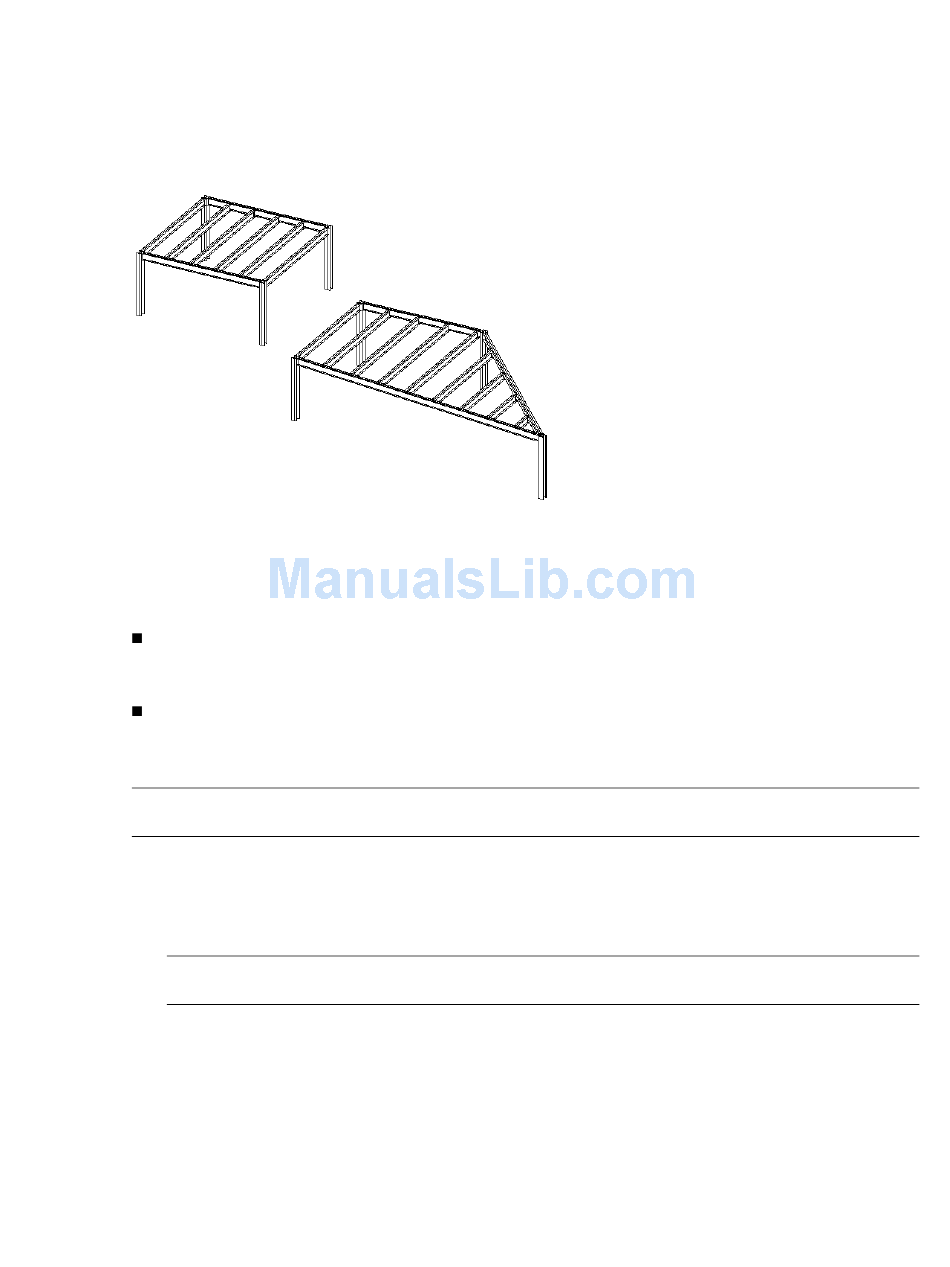

Example of a structural beam system and parametric adaptation
after column is relocated

Creating a One-Click Beam System

You can create beam systems quickly, with one mouse click, as long as the following conditions are me:
The one-click beam system can only be added in plan or ceiling view with a horizontal sketch plane. If
the view or the default sketch plane is not a level and you click Beam System, you are redirected to the
Sketch mode.
There must be a closed loop of supporting elements (walls or beams) already drawn, or the program will
automatically redirect you to sketch mode. For more information, see
Patterns
WARNING Curved walls and beams can be used to create a loop, but cannot be the direction defining members
in the Beam System.
To create a beam system, using one click
1 On the Structural tab of the Design Bar, click Beam System.
2 On the Options Bar, select a beam type.
NOTE If you would like to sketch the beam system by hand, click the Sketch button located on the Options
Bar to enter Sketch mode.
3 On the Options Bar, define the beam system spacing requirements with the Layout menu.
4 If the beam system will be sloped or uneven in relation to the level, select the 3D option. However, if
you want the walls of the structure in your project to define the slope of the 3D beam system, select
Walls Define Slope.
808 | Chapter 12 Working with Structural Components
