When you move the bubble end out of line, the effect appears only in that view. The segments
created from dragging the bubble have a solid line style. You cannot change this style.
As you drag a control, the cursor snaps at points similar to neighboring grids. The cursor also snaps as the
segments form straight lines.

Showing and Hiding Grid Bubbles

You can control whether grid bubbles display at either end of a grid line. You can do this graphically for an
individual grid line in a view, or for all grid lines of a particular type by changing type properties.
To show or hide individual grid bubbles
1 Open a view that displays grid lines.
2 Select a grid line.

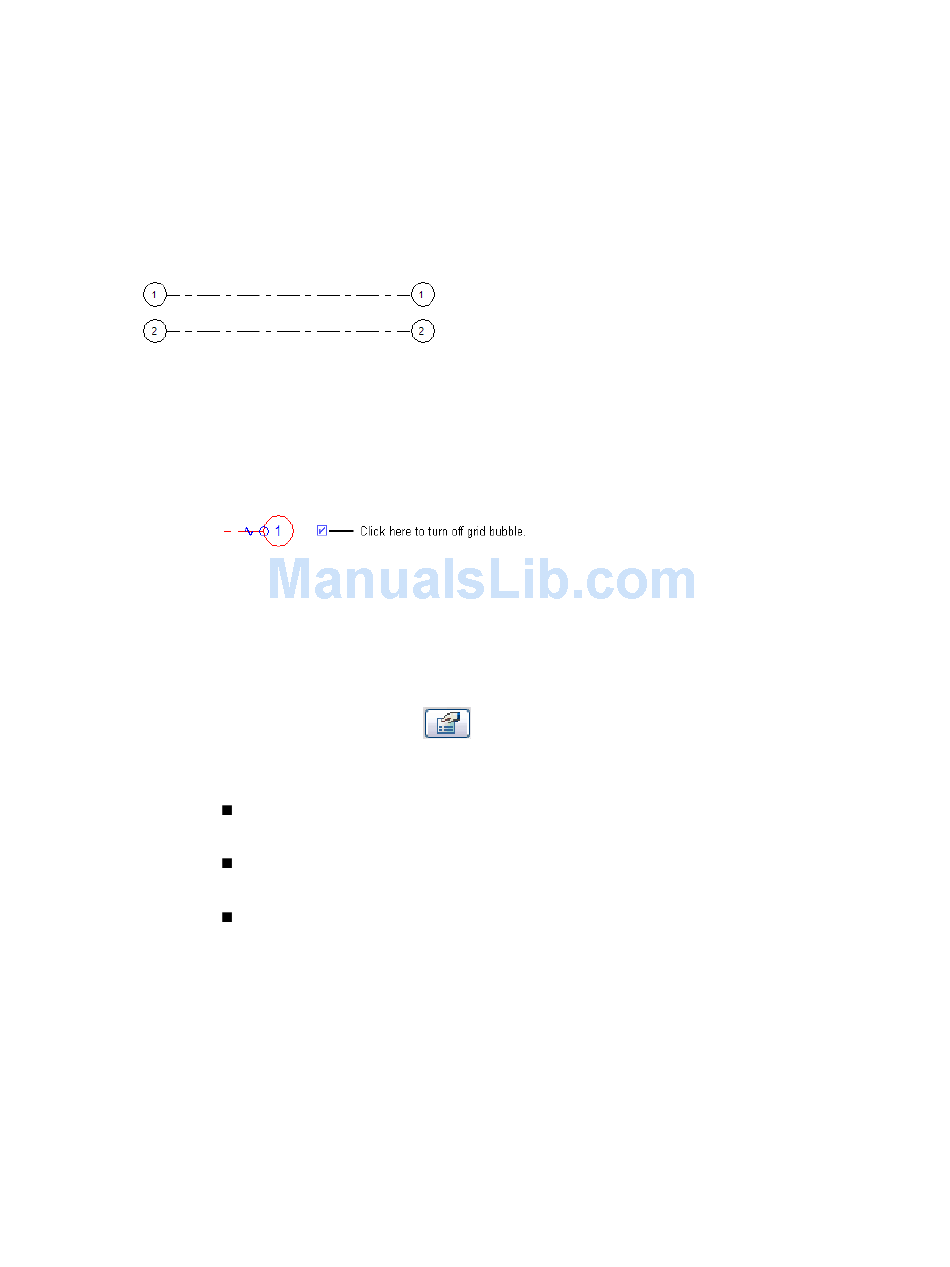

Revit Architecture displays a check box near the grid bubble. You may need to zoom in to see
it clearly.
3 Clear the check box to hide the bubble, or select it to show the bubble.
You can repeat this process to show or hide the bubble at the opposite end of the grid line.
To show or hide grid bubbles using type properties
1 Open a view that displays grid lines.
2 Select a grid line, and click
3 In the Element Properties dialog, click Edit/New.
4 In the Type Properties dialog, do any of the following:
To display grid bubbles at the start point of grid lines in a plan view, select Plan View Symbols
End 1 (Default).
To display grid bubbles at the endpoint of grid lines in a plan view, select Plan View Symbols
End 2 (Default).
In views other than plan views (such as elevations and sections), indicate where to display
grid bubbles. For Non-Plan View Symbols (Default), select Top, Bottom, Both (top and
bottom), or None.
(Element Properties).
Modifying Grids | 1035
