2 In the Work Plane dialog, under Specify a new Work Plane, select one of the following options:
3 Select a view, and click Open View.

Making the Work Plane Visible

On the toolbar, click
The work plane appears as a grid in the view.
266 | Chapter 6 Sketching
Name—Choose an available work plane from the list, which contains names of levels, grids,
and named reference planes.
NOTE The list is active even if you have not selected the Name option. If you choose a name
from the list, Revit Architecture automatically selects the Name option.
Pick a plane—Revit Architecture creates a plane coincident to the selected plane. You can
select any plane that can be dimensioned, including wall faces, faces in linked Revit models,
extrusion faces, levels, grids, and reference planes.
Pick a line and use the work plane it was sketched in—Revit Architecture creates a work
plane that is coplanar with the work plane of the selected line.

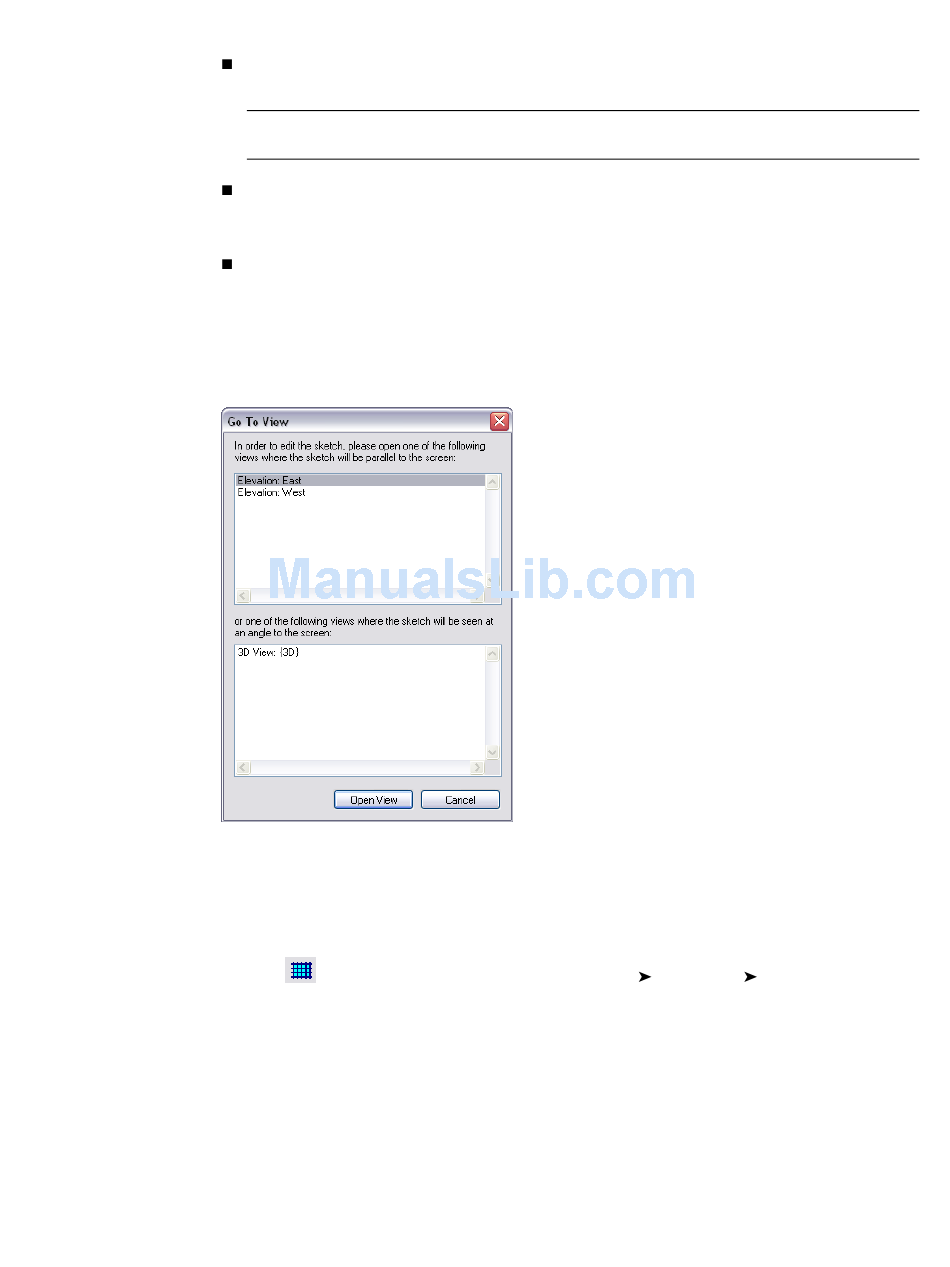

If the plane you choose is perpendicular to the current view, the Go to View dialog opens, giving
you options of which view to open based on your selection.
For example, if you select a north-facing wall, the upper pane in the dialog lets you choose a
parallel view (east or west elevation), or in the lower pane you can choose a 3D view, as shown.
(Work Plane Visibility), or click Tools menu Work Plane Work Plane Visibility.
